Specifications
Brand Name :
Forsentek
Model Number :
FYTE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
3000pcs/month
Delivery Time :
3~20 working days
Packaging Details :
1pc/box
Usage :
Rotating torque measurement
Type :
Contactless torque sensor
Output :
±5V/±10V/4-20mA
Capacity :
0-500NM(Selectable)
Configuration :
Shaft-to-shaft
Description

Non-contact Rotary Torque Sensor 500Nm 300N-m 200N*m 100Nm 50N*m 20N-m 10N*m

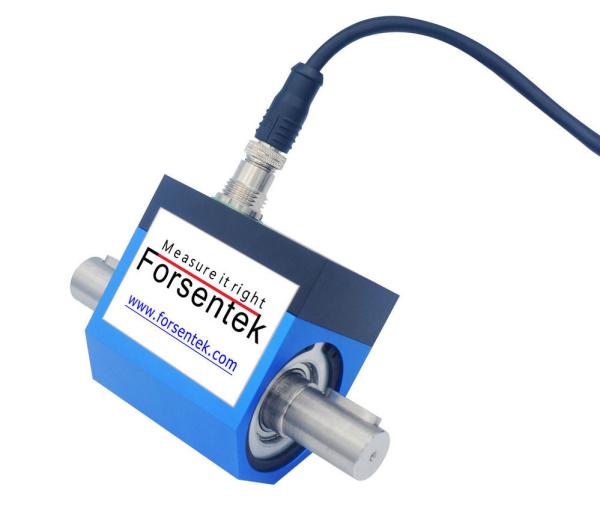

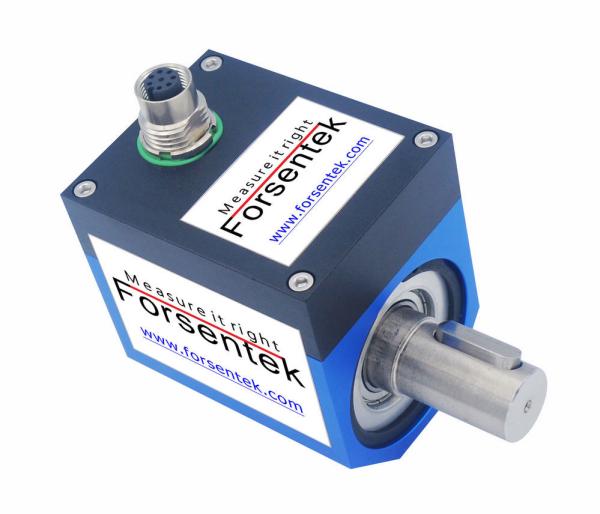

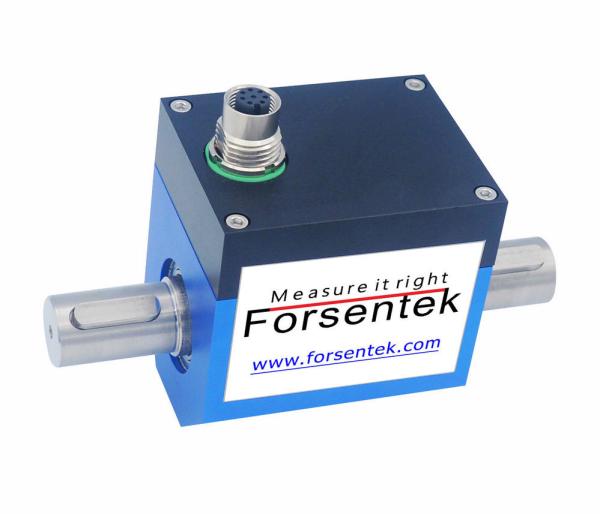

Contactless shaft to shaft type Rotary Torque Transducer FYTE offers a contactless transmission for bridge supply voltage and measurement transmission which enables continuous operation with low wear out.Non contact rotary torque transducer FYTE offers 1N*m / 2N-m / 3Nm / 5N*m / 10N-m / 20Nm / 30N*m / 50N-m / 100N*m / 200Nm / 300N*m / 500N-m 12 rated capacities with maximum 8000RPM to choose from, ±5V /±10V / 4-20mA direct output from the transducer thanks to its built-in amplifier circuit for easy data processing. Shaft to shaft configuration, can be easily installed through couplings, the housing remains still while the shaft rotates during measurement, it is also applicable for torsion measurement with low rotating speed. Typical applications for Dynamic Torque Sensor FYTE are such as motor test benches, tightening torque monitoring, rotating torque measurement for servo motors, pumps, gearbox, engines, agitators,and so on.

Non-contact Rotary Torque Sensor 500Nm 300N-m 200N*m 100Nm 50N*m 20N-m 10N*m

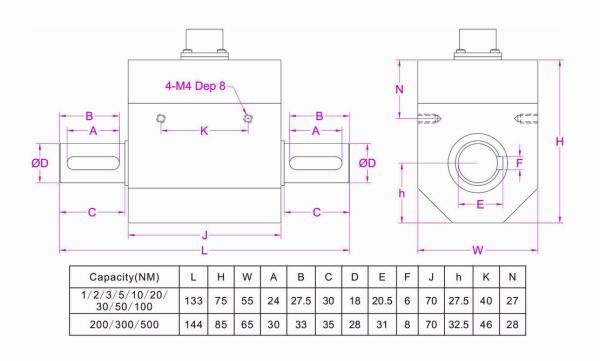

Dimensions

Non-contact Rotary Torque Sensor 500Nm 300N-m 200N*m 100Nm 50N*m 20N-m 10N*m

Specifications

Capacity

1N*M / 8.8 lb-in / 10kgf*cm

2NM / 17.7 lbf*in / 20kg*cm

3N-M / 36.5 lb*in / 30 kgf*cm

5NM / 44lb-in / 50 kg*cm

10Nm / 88 lbf*in / 1kgf*m

20N-M / 177 lb*in / 2kg*cm

30N*M / 265lb*in / 3 kgf-m

50NM / 442 lbf-in / 5 kg-m

100N*M / 885 lbf*in / 10kg-m

200NM / 1770 lb-in / 20 kg*m

300N*M / 2655 lb*in / 30kg*m

500Nm / 4425 lb-in / 50 kgf*m
Maximum Rotating Speed

0-100Nm: 8000RPM

200/300/500Nm: 6000RPM
Rated output ±5V / ±10V / 4-20mA
Excitation 24V DC (or 12V DC)
Zero balance ±2% R.O.
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.2% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Operating temp. -10...+60oC
Ingress protection IP40
Material of element Stainless steel
Material of housing Aluminum
Cable Ø6*3000mm(Mating connector provided)

Contactless Rotary Torque Transducer 500N*m 300Nm 200Nm 100N*m 50N-m 20N*m 10Nm

Non-contact Rotary Torque Sensor 500Nm 300N-m 200N*m 100Nm 50N*m 20N-m 10N*m

Click here to download datasheet
