Miniature Compression Transducer 10N 20N 50N 100N 200N 500N 1kN 2kN Micro Force Sensor
Miniature Compression Transducer 10N 20N 50N 100N 200N 500N 1kN 2kN Micro Force Sensor
Miniature Compression Transducer 10N 20N 50N 100N 200N 500N 1kN 2kN Micro Force Sensor
Miniature Compression Transducer 10N 20N 50N 100N 200N 500N 1kN 2kN Micro Force Sensor
Miniature Compression Transducer 10N 20N 50N 100N 200N 500N 1kN 2kN Micro Force Sensor
Miniature Compression Transducer 10N 20N 50N 100N 200N 500N 1kN 2kN Micro Force Sensor
Miniature Compression Transducer 10N 20N 50N 100N 200N 500N 1kN 2kN Micro Force Sensor
Miniature Compression Transducer 10N 20N 50N 100N 200N 500N 1kN 2kN Micro Force Sensor
Specifications
Brand Name :
Forsentek
Model Number :
FCFK
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
2885pcs/month
Delivery Time :
3~25 working days
Packaging Details :
Carton
Usage :
Force measurement
Type :
Miniature flange load cell
Output :
Analog Sensor
Capacity :
10N 20N 50N 100N 200N 500N 1KN 2KN
Connection :
Flange-to-flange
Material :
Stainless steel
Description

Miniature Compression Force Transducer 10N 20N 50N 100N 200N 500N 1KN 2KN Micro Force Sensor

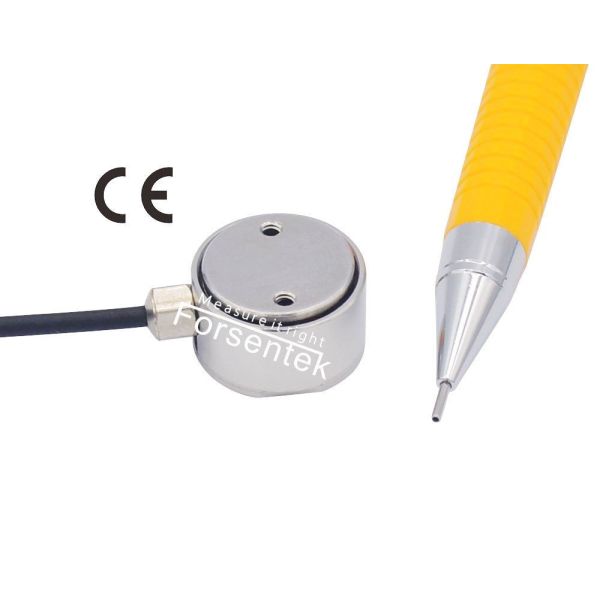

Micro Load Cell FCFK is made of stainless steel based on strain gauge technology to deliver maximum 0.2% non-linearity of the rated capacity.Miniature compression load cell FCFK offers 0-10N / 0-20N / 0-50N / 0-100N / 0-200N / 0-500N / 0-1kN / 0-2kN eight measuring ranges to choose from, flange to flange mounting,compact design, you may find micro force transducer FCFK applicable for compression force measurement applications where mounting space is limited, such as mold clamping force measurement, assembly force monitoring, force distribution test,etc..Model FCFK can be modified or customized as per client's request.

Miniature Compression Transducer 10N 20N 50N 100N 200N 500N 1kN 2kN Micro Force Sensor

Dimensions(in milimeter)

Miniature Compression Transducer 10N 20N 50N 100N 200N 500N 1kN 2kN Micro Force Sensor

Ordering code Measurement Range Force direction
FCFK-10N 0-10N / 0-2.2lb Compression
FCFK-20N 0-20N / 0-4.4lb
FCFK-50N 0-50N / 0-0-10lb
FCFK-100N 0-100N / 0-20lb
FCFK-200N 0-200N / 0-45lb
FCFK-500N 0-500N / 0-112lbf
FCFK-1kN 0-1000N / 0-225lbs
FCFK-2kN 0-2000N / 0-450lbf

Specifications

Capacity

1kg / 2kg / 5kg / 10kg / 20kg / 50kg / 100kg / 200kg

2.2lb / 4.4lb / 11lb / 22lb / 45lb / 112lb / 225lbf / 450lbs
10N / 20N / 50N / 100N / 200N / 500N / 1kN / 2kN
Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.1mV/V
Nonlinearity ±0.3% R.O.
Hysteresis ±0.3% R.O.
Nonrepeatability ±0.1% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.03% R.O./oC
Input resistance 385±50 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP50
Material of element Stainless steel
Cable Ø2*3000mm 4-core shielded
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output is normally within 1mV/V~3mV/V.
Power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the load cell output signal is normally within 0-45mV(-45mV...+45mV for bidirectional load cell).
Example one: Micro Load Cell FCFK-100N with 2.0mV/V sensitivity powered by 3.3V DC,the output range is 0...+6.6mV.
Example two: Miniature Load Cell FCFK-200N with 2.0mV/V sensitivity powered by 5V DC,the output range is 0...+10mV.

A signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.

Example: FCFK-50N working with amplifier FSC(0-5V)-24V, the Force-Voltage relationship will be 0-50N compression force VS 0-5V output, 1V voltage corresponds to 10N load, 2V voltage corresponds to 20N force,and so on.

Miniature Compression Force Sensor 10N 20N 50N 100N 200N 500N 1KN 2KN Micro Load Cell

Miniature Compression Transducer 10N 20N 50N 100N 200N 500N 1kN 2kN Micro Force Sensor

Click here to download datasheet
