Multi Material Molding for Metal insert into mold MMM Insert Injection Molding

Specifications:

Over molding is effectively the use of layering effects in polymer application techniques.

This process is centered around the use of a liquidous resin to add additional layers of shape and structure to an existing component. An example of such a resin could be a polymer that has been heated to a temperature just above its glass transition temperature ). The existing component to which the resin is being added is often injection molded as well, and may be near its own glass transition temperature. This process works well when layers with varying geometric profiles are desired around a central "core" structure.

Benefits:

If the desired object is manufacturable using MMM, it is definitely best to use MMM over traditional injection molding. Some of the key features that makes MMM a better approach are as followed:

• lower cost
• higher-quality product
• significant reduction in assembly operations
• reduction in cycle times

Description:

With ISO9001:2001 certificated, Forwa Mould is an excellent plastic injection mold and plastic product manufacturer in south China.

Our Products:

Ⅰ, Precise Plastic Injection Mould (every fields relating to plastic )

Ⅱ, Mould Parts and Fittings (ejector pin, sleeve pin, cavity insert, core insert, etc.)

Ⅲ, Injection plastic parts (gear, connector, phone housing, camera housing, etc.)

Ⅳ, Prototype

Our Service: design, tooling, manufacturing, injection, printing, assembly, package, shipping.

Our equipment: CNC center, EDM machines, Wire EDM, Grinder, Miller,Tool Microscope,

Projector, Mockup machine, Injection molding machine etc.

For more information about Forwa Mould, pls refer to http://www.forwa-mould.com or come to our factory,

I promise you will receive the warmest reception from us.

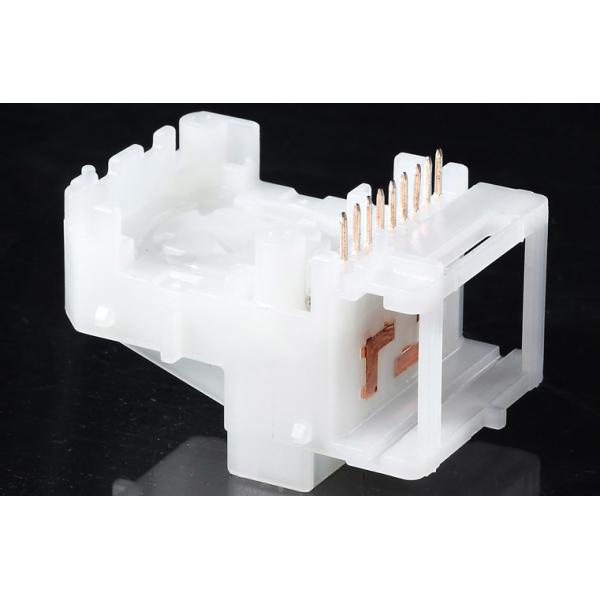

This is insert molding part.

Place the metal parts into mold by hand,and closing mold to produce.

The finished part is metal inserts in plastic part,no need secondary process to bonding the metal part.
