Solar Street LED Lighting Lifepo4 Lithium Ion Battery FT-32LFP-6.4V6AH
Solar Street LED Lighting Lifepo4 Lithium Ion Battery FT-32LFP-6.4V6AH
Solar Street LED Lighting Lifepo4 Lithium Ion Battery FT-32LFP-6.4V6AH
Solar Street LED Lighting Lifepo4 Lithium Ion Battery FT-32LFP-6.4V6AH
Solar Street LED Lighting Lifepo4 Lithium Ion Battery FT-32LFP-6.4V6AH
Solar Street LED Lighting Lifepo4 Lithium Ion Battery FT-32LFP-6.4V6AH
Solar Street LED Lighting Lifepo4 Lithium Ion Battery FT-32LFP-6.4V6AH
Solar Street LED Lighting Lifepo4 Lithium Ion Battery FT-32LFP-6.4V6AH
Specifications
Brand Name :
FORZATEC
Model Number :
FT-32LFP-6.4V6AH
Certification :
CE&ROHS
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C, T/T
Supply Ability :
10,000 PER MONTHS
Delivery Time :
15 DAYS
Packaging Details :
CARTON AND PALLETS
Nominal Voltage :
6.4V
Nominal Capacity :
6Ah@0.2C
Energy :
38.4Wh
Internal Resistance :
90≤mΩ
Dimension(L*W*H*TH) :
70*47*102*107mm
Weight :
Approx. 0.4Kg
Description

FT-32LFP-6.4V6AH UPS Solar &Wind power system Golf Cart Lighting

Features

◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature

◆ Maintenance free

◆ Internal cell balancing

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

◆ Can be charged using most standard lead-acid charges (set)

◆ Wider temperature range:-20℃~60℃

Application

◆ UPS

◆ Solar &Wind power system

◆ Golf Cart

◆ Electric vehicle , E-bike, E-rickshaw e.g.

◆ Lighting

General Specifications

Electrical Characteristics

 Nominal Voltage 6.4V
Nominal Capacity 6Ah@0.2C
Energy 38.4Wh
Internal Resistance 90≤mΩ
Cycle Life >2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity.
Months Self Discharge ≤3.5% per month at 25℃

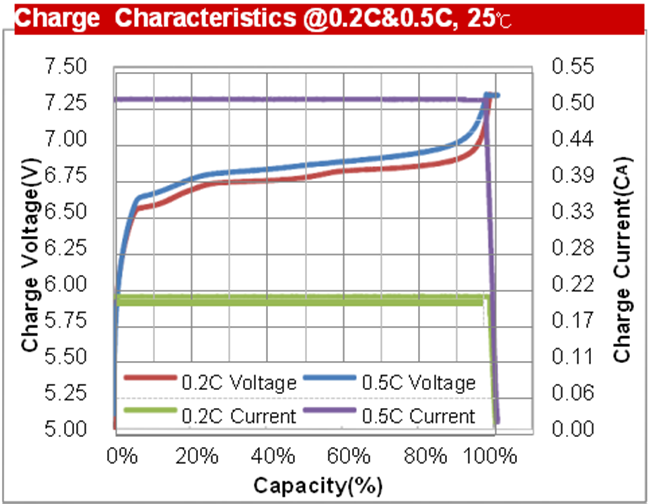

Standard Charge

 Charge Voltage 14.6±0.2V

Charge Mode(CC/CV)

 At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A.
Charger Current 1.2A
Max.Charge Current 3A

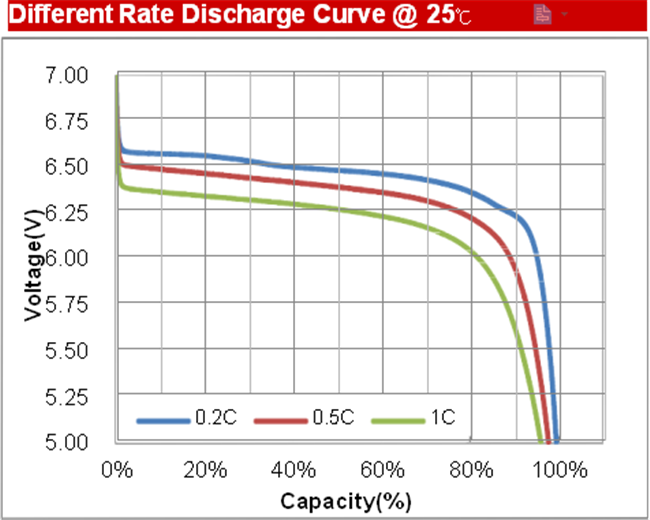

Standard Discharge

 Discharge Current 1.2A
Max. Continuous Current 6A
Max.Pulse Current 20A(<3S)
Disxcharge Cut-off Voltage 10.0V

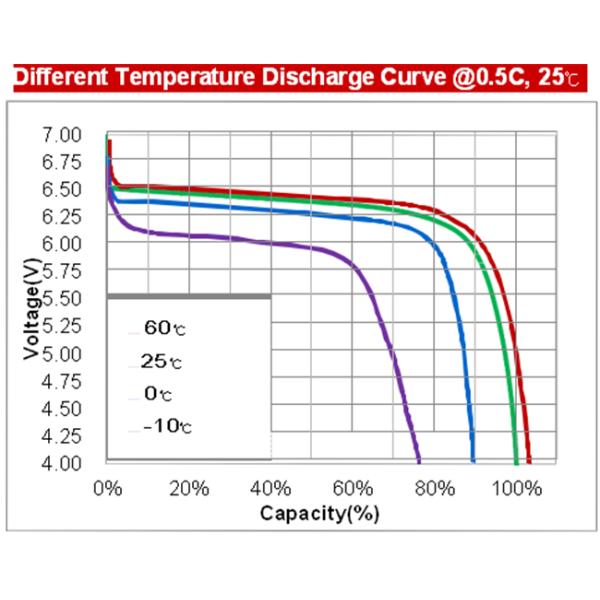

Environmental

 Charge Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Disxcharge Temperature -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance IP55

Mechanical

 Cell & Method IFR32700 N60,2S1P
Plastic Case ABS
Dimension(L*W*H*TH) 70*47*102*107mm
Weight Approx. 0.4Kg
Terminal

F2
