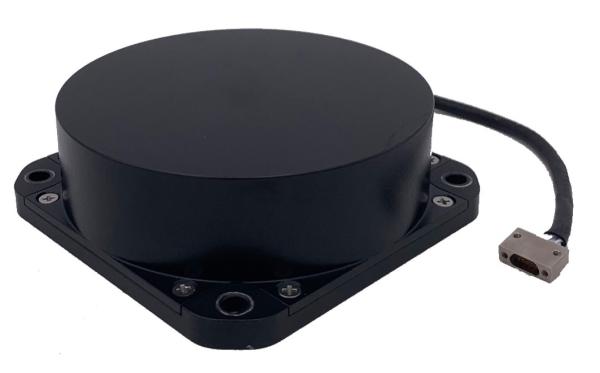

FG-98A/H Single-Axis Fiber Optic Gyroscope Weight g 520 20 Zero Bias Stability ≤ 0.005/0.003°/h
FG-98A/H Single-Axis Fiber Optic Gyroscope Weight g 520 20 Zero Bias Stability ≤ 0.005/0.003°/h
Specifications
Brand Name :
FOVA
Model Number :
FG-98A/H
Place of Origin :
SHENZHEN
Certification :
CE;FCC
MOQ :
10
Delivery Time :
25
Payment Terms :
T/T
Supply Ability :
1000pcs/Mouth
Input voltage :
±5
Size :
98(±0.1)*98(±0.1)*35mm
Repeatability over all temperatures :
≤0.03
Dynamic range/second :
±500
interface :
RS422
Random Walk :
≤0.001
weight :
≤550g
Output frequency :
1000 (400~5000)Hz
Description

FG-98A/H single-axis fiber optic gyroscope
Zero bias stability ≤ 0.005/0.003°/h; Dimensions (mm): 98x98x33.5; Weight (g): 520+20

Indicators Model

 FG-98A/H
Performance indicators bias stability① (°/h, 1σ) 0.015/0.01
bias stability② (°/h, 1σ) 0.005/0.003
bias stability③ (°/h,full temperature, 1σ) 0.01
bias repeatability(°/h, 1σ) 0.003
random walk(°/h 1/2) 0.001/0.0008
scale factor nonlinearity (ppm) 2/1
scale factor asymmetry (ppm) 2/1
scale factor repeatability(ppm) 5/5
dynamic range(°/s) ±500

Mechanical/

electrical interface

 size(mm) 98×98×33.5
weight(g) 510±10/525±10
steady state power consumption at normal temperature(W) <2.5
power supply(V) +5
communication interface RS422

Remarks:

① Static test at room temperature, 10s smooth, 1σ;

② Static test at room temperature, smooth for 100s, 1σ;

③ The temperature change rate is 1℃/min, smooth for 100s, 1σ.
Data manual--FG-98A/H single-axis fiber optic gyroscope
◾ Product introduction
The FG - 98 a/H uniaxial optical fiber gyro is an optical, mechanical and electrical integration of the solid-state high precision and high precision in digital closed loop uniaxial optical fiber gyro, based on the sag principle, by the erbium-doped fiber optic light source, optical fiber coupler, photoelectric detector, integrated optical phase modulator, optical fiber sensing ring, circuit and structures.
It is iterated on the basis of FG-98 fiber optic gyroscope, inherited the classic design of FG-98 gyroscope, adopted higher production technological level, and improved performance comprehensively.It can be widely used in various navigation and guidance fields.
Classical navigation-class fiber optic gyroscopes.
◾ Product features
• Single 5V power supply
• Update rate up to 4000Hz
• Excellent full temperature performance
• Excellent start-up performance, the nominal index can be reached when the power is turned on, and no preheating is required
• Excellent environmental adaptability, strong impact and vibration resistance
• Interference fringe recognition technology, supporting full dynamic range cold start
• High reliability
• No dead zone
◾ Typical applications
• Positioning and orientation system
• Strapdown inertial navigation system
• Optical fiber compass
• Attitude indicator
• Inertial navigation system of a certain type of rotorcraft
◾Performance indicators
Turn-on time (s) 3
Dynamic range (°/s) ±500
Zero position (°/h) ≤0.3
Bias stability ① (°/h, 1σ) ≤0.015/0.01
Bias stability ② (°/h, 1σ) ≤0.005/0.003
Bias stability ③ (°/h, 1σ) ≤0.015/0.01
Bias repeatability (°/h, 1σ) ≤0.005/0.003
Bias magnetic sensitivity (°/h/Gs) ≤0.015/0.01
Random walk (°/ H 1/2) ≤0.0008/0.0005
Scale factor nonlinearity (PPM) ≤2/1
Scale factor asymmetry (PPM) ≤2/1
Scale factor repeatability (PPM) ≤5/5
Threshold (°/h) ≤0.015/0.01
Resolution (°/h) ≤0.015/0.01
Bandwidth (Hz) ≥200
◾Physical/Electrical
Power supply + 5 v
Steady-state power consumption ≤2.5W
Steady-state power consumption at full temperature ≤4W
Instantaneous power consumption at startup ≤4W
Dimensions 98㎜×98㎜×33.5㎜
Weight 510 + 10 g / 525 + 10 g
Electrical form RS422
◾ Environmental adaptability
Operating temperature -45℃ ± 70℃
Storage temperature -55 ° C to -+80 ° C
Vibration 6 .06g (RMS), 20HZ-2000Hz
Impact 30g, 6ms-8ms
Average trouble-free time 8000h

Product Description:

Our Gyroscope product uses Fiber Optical Gyroscope technology which makes it immune to electromagnetic interference and provides excellent long-term stability. This makes it an ideal choice for applications that require high precision and long-term stability such as navigation systems, robotics, and aerospace.

The Gyroscope product comes with an RS422 interface which allows for easy integration into existing systems. It has a low power consumption of just 3W which makes it energy-efficient and cost-effective.

The output frequency of our Gyroscope product is 1000 (400~5000)Hz which means it can capture high-speed movements with ease. It has a magnetic sensitivity of ≤0.020 which ensures accurate measurements even in the presence of external magnetic fields.

The Gyroscope product is designed to operate in extreme temperatures ranging from -40~+70 which makes it suitable for use in a wide range of environments. It is built to withstand harsh conditions and deliver accurate data consistently.

In conclusion, our Gyroscope product is a high-performance device that delivers accurate and reliable measurements of angular velocity. It uses Fiber Optic Gyro technology which makes it immune to electromagnetic interference and provides excellent long-term stability. Its low power consumption, high output frequency, and wide operating temperature range make it an ideal choice for a wide range of applications.

Features:

  • Product Name: Gyroscope
  • Electronic Gyroscope Sensor
  • Gyroscopes
  • IMU Accelerometer Gyro
  • Storage temperature: -50~+70
  • Interface: RS422
  • Size: 98(±0.1)*98(±0.1)*35mm
  • Scale factor repeatability (1σ): ≤10
  • Power consumption: 3W

Applications:

FOVA FG-98A/H is a high-quality electronic gyroscope sensor that is designed and produced in SHENZHEN. The product is certified with ROHS, ensuring that it meets the highest standards of quality and safety. The minimum order quantity for this product is 10, and the delivery time is 25 days. Payment terms for the product are T/T, and the supply ability is 1000pcs per month.

The FOVA FG-98A/H gyroscope product has an output frequency of 1000 (400~5000)Hz, an input voltage of ±5, and a bandwidth of 200. The zero bias repeatability (1σ) for the product is ≤0.010, and the scale factor repeatability (1σ) is ≤10.

The versatile FOVA FG-98A/H gyroscope product can be used in various applications, including:

  • Gyratory Screening Machine: The gyroscope product is perfect for use in gyratory screening machines. It can be used to detect the smallest movements and vibrations, making it ideal for use in industrial settings.
  • Fiber Optical Gyroscope: The FOVA FG-98A/H gyroscope product is also suitable for use in fiber optical gyroscopes. It can help to maintain the stability of the fiber optic system and ensure that it operates efficiently and accurately.
  • Electronic Gyroscope Sensor: The FOVA FG-98A/H gyroscope product can also be used as an electronic gyroscope sensor. It is ideal for use in navigation systems, drones, and other electronic devices that require precision and accuracy.

In conclusion, the FOVA FG-98A/H gyroscope product is a high-quality and versatile product that can be used in various applications. Its high precision and accuracy make it suitable for use in industrial settings, fiber optic systems, and electronic devices. With its reliable performance and excellent quality, this product is a great investment for any business or organization that requires the use of a high-quality gyroscope sensor.

Customization:

Customize your FOVA FG-98A/H Gyroscope with our Product Customization Services:

  • Brand Name: FOVA
  • Model Number: FG-98A/H
  • Place of Origin: SHENZHEN
  • Certification: ROHS
  • Minimum Order Quantity: 10
  • Delivery Time: 25
  • Payment Terms: T/T
  • Supply Ability: 1000pcs/Mouth
  • Power consumption: 3W
  • Connectors: J 30-21ZK
  • Stabilization time: <10
  • Magnetic sensitivity: ≤0.020
  • Weight: ≤550g

Our services include customization of IMU Accelerometer Gyro, Gyratory Screening Machine, Gyratory Screening Machine, and more. Contact us to learn how we can help you tailor your Gyroscope to your specific needs!
