Specifications
Brand Name :
FOVA
Model Number :
YZT-CJ-0410A
Place of Origin :
SHENZHEN
Certification :
CE;FCC
MOQ :
10PCS
Packaging Details :
27X22X17CM
Delivery Time :
7-15 working day
Payment Terms :
T/T
Supply Ability :
100000Pcs/Month
Pulse Duration :
Less Than 10 Ns
Highlight :
High Precision
Function :
Measuring Distance
Feature :
Small Size
Dimensions :
150 Mm X 100 Mm X 50 Mm
Advantage :
Eye-safe
Warranty Years :
1 Year
Operating Temperature :
-40°C To 60°C
Description
1. Overview
The YZT-CJ-0410A Laser Rangefinder is an eye-safe laser rangefinder within the optoelectronic system, capable of detecting target distances and transmitting the measured distance to the host computer via serial communication.
YZT-CJ-0410A Stealth Ranging Accurate Distance Measuring with Eye safe Precision Ranging Technology
2. Structural Composition and Main Performance Indicators

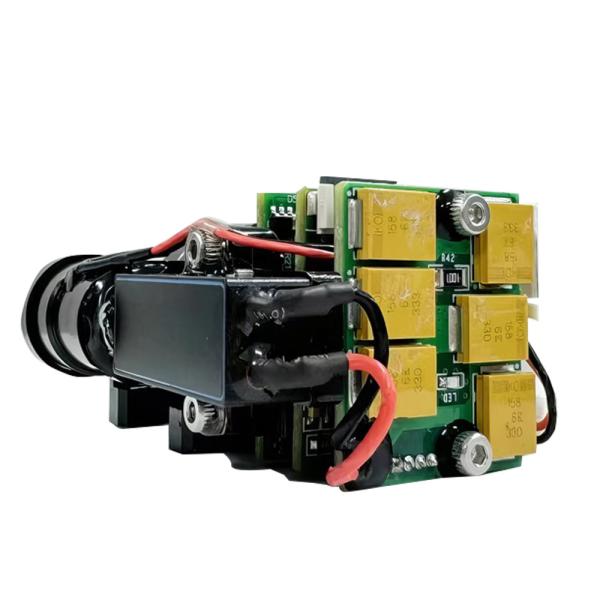

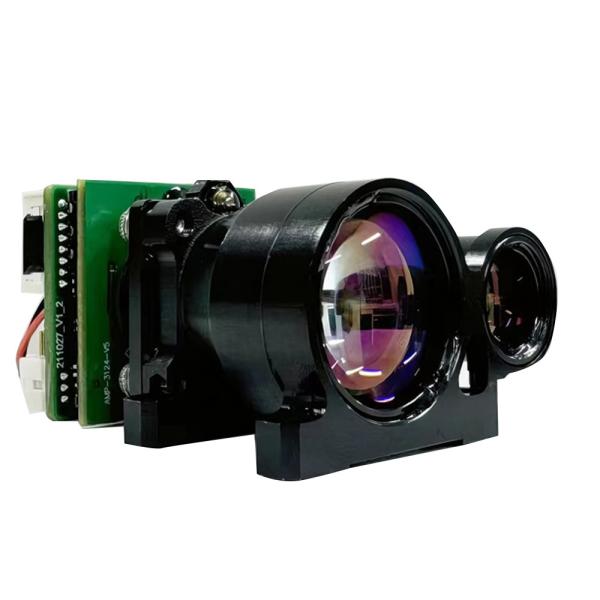

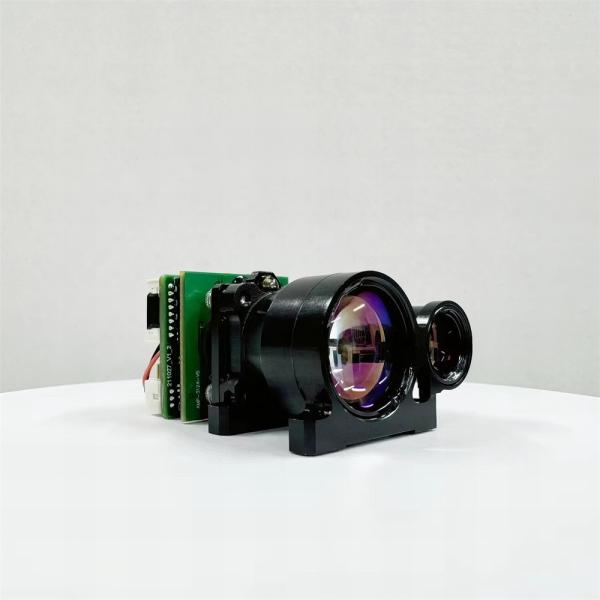

The YZT-CJ-0410A Laser Rangefinder consists of a laser, a transmission optical system, a reception optical system, and a control circuit. The main performance characteristics are as follows:
2.1 Ranging capacity
Visibility under visibility conditions is not less than 8km, diffuse reflectance ≥0.3, humidity ≤80%, the vehicle (2.3m×2.3m target) ranging distance ≥4km.
2.2 Function
a) single ranging and continuous ranging;
b) Range strobe, front and rear target indication;
c) Self-test function.
2.3 Performance
a. Wavelength: 1535nm±5nm;
b. Laser divergence Angle: ≤0.5mrad;
c. Continuous ranging frequency: 1~10Hz adjustable;
d. Ranging accuracy: ≤±2m (RMS);
e. Accuracy: ≥98%;
f. Minimum measuring range: ≤20m;
g. Ranging resolution: ≤30m (multi-target);
h. Power supply voltage: DC9V ~ 16V; (Customizable)
i. Weight: ≤55g;
j. Power: average power consumption ≤1.5W (1Hz operation), peak power consumption ≤5W;
k. Size: ≤55mm×41mm×26mm;
l. Working temperature: -40℃ ~ +60℃;
m. Storage temperature: -50℃ ~ +70℃;
2.4 Interface Communication Interface: RS422, 115200bps, wiring definition as shown in Table 1;
Table 1: Wiring Definition for 8P Socket
Serial No. Definition wire color Remarks
1 RS422 RX+ Brown RS422 Receive (+)
2 RS422 RX- Blue RS422 Receive (-)
3 RS422 TX- Yellow RS422 Transmit (-)
4 RS422 TX+ Purple RS422 Transmit (+)
5 GND White Communication Interface Ground
6 +12V Red Power Supply
7 GND Black Power Supply Ground
8 Reserved Blank Reserved
2.5 Dimension
For detailed information, please refer to the product's three-dimensional envelope and assembly drawing.
3. User Precautions
The laser emitted by this rangefinder is 1535nm, which is safe for human eyes. Although it is an eye-safe wavelength, it is advised not to look directly into the laser.
When adjusting the parallelism of the optical axis, be sure to cover the receiving lens to avoid permanent damage to the detector due to excessively strong echoes.
This rangefinder module is not airtight. Ensure that the relative humidity of the environment is below 80% and maintain a clean and sanitary environment to prevent damage to the laser.
The range of the rangefinder is related to atmospheric visibility and the nature of the target. Range will be reduced in fog, rain, and sandstorms. Targets like green tree clusters, white walls, and exposed limestone have better reflectivity and can increase range. Additionally, increasing the angle of the laser beam to the target will reduce the range.
Do not emit lasers at highly reflective targets such as glass or white walls within 20 meters to avoid echo overstrength and damage to the APD detector.
Do not plug or unplug cables while the device is powered on.
Ensure the correct polarity of the power supply connection to avoid permanent damage to the equipment.

Product Description:

With a voltage supply of DC6 ~ 36, this Laser Ranging product is designed to meet the needs of a wide range of users. It is lightweight, weighing less than 56g, and compact, with dimensions of 150 Mm X 100 Mm X 50 Mm, making it easy to handle and use in any setting.

One of the key features of this High Precision Distance Sensor is its accuracy, which is ±1 Meter. This level of precision ensures that it delivers accurate measurements every time, making it ideal for use in precision measurement systems.

In addition to its accuracy, this Laser Ranging product is also known for its small size. This makes it easy to integrate into other systems, and it can be used in a variety of settings to achieve high precision measurements.

Overall, our High Precision Laser Distance Sensor is an excellent choice for anyone looking for a reliable, accurate, and compact distance measuring device. So, whether you're looking for a device for use in an Automatic Laser Marking Machine or other precision measurement system, this product is sure to meet your needs.

Features:

  • Product Name: Laser Ranging
  • Warranty Years: 1 Year
  • Advantage: Eye-safe
  • Power: Low Power Consumption
  • Application: Surveying, Mapping, Geodesy
  • Stealth Ranging: No Red Flash
  • High Precision Laser Distance Sensor
  • Industrial Laser Distance Sensor

Technical Parameters:

Function Measuring Distance
Wavelength 1550 Nm
Laser divergence angle ≤ 0.6mrad
Stealth Ranging No Red Flash
Pulse Duration Less Than 10 Ns
Weight ≤56g
Ranging accuracy ±2m
Dimensions 150 Mm X 100 Mm X 50 Mm
Frequency 1 Hz
Accuracy ±1 Meter

Applications:

The FOVA YZT-CJ-0410A model is designed to be used in various occasions and scenarios. Its high precision laser distance sensor makes it ideal for use in construction sites, architecture, interior design, and DIY projects. The digital laser distance meter can measure the distance between two points accurately and quickly, which can save time and improve efficiency.

The FOVA YZT-CJ-0410A model is also useful in outdoor activities such as hunting, golfing, and hiking. Its low power consumption makes it an excellent tool for outdoor activities as it does not drain the battery quickly. The stealth ranging feature of this product does not produce a red flash, making it safe to use in the dark.

The FOVA YZT-CJ-0410A model can also be used in industrial applications such as robotics and automation. Its high precision laser distance sensor can accurately measure the distance between two objects, making it useful in manufacturing and production processes.

In summary, the FOVA YZT-CJ-0410A model is a versatile and high precision laser distance sensor that can be used in various occasions and scenarios. Its digital laser distance meter and low power consumption make it an ideal tool for construction sites, outdoor activities, and industrial applications. Its stealth ranging feature and 1-year warranty make it a valuable investment for anyone who needs a reliable and accurate measuring tool.

FAQ:

Q1: What is the brand name of this laser ranging product?

A1: The brand name of this laser ranging product is FOVA.

Q2: What is the model number of this laser ranging product?

A2: The model number of this laser ranging product is YZT-CJ-0410A.

Q3: Where is this laser ranging product made?

A3: This laser ranging product is made in SHENZHEN.

Q4: Does this laser ranging product have any certifications?

A4: Yes, this laser ranging product is CE certified.

Q5: What is the minimum order quantity for this laser ranging product?

A5: The minimum order quantity for this laser ranging product is 10PCS.

Q6: What are the packaging details for this laser ranging product?

A6: The packaging details for this laser ranging product are 27X22X17CM.

Q7: What is the delivery time for this laser ranging product?

A7: The delivery time for this laser ranging product is 7-15 working days.

Q8: What are the payment terms for this laser ranging product?

A8: The payment terms for this laser ranging product are T/T.

Q9: What is the supply ability for this laser ranging product?

A9: The supply ability for this laser ranging product is 100000Pcs/Month.
