Specifications
Brand Name :
FOVA
Model Number :
YZT-TCQ-03
Certification :
CE;FCC
Place of Origin :
SHENZHEN
MOQ :
3
Payment Terms :
T/T
Supply Ability :
10000PCS/Month
Delivery Time :
7-15work days
Packaging Details :
117 × 65 × 64 mm
Frame Rate :
Up to 1000 fps
Pixel Size :
10μm to 25μm
Detector Type :
Infrared
Applications :
Thermal imaging, gas detection, night vision
Operating Temperature :
-50°C to70°C
Sensitivity :
High
Dimensions :
Small and compact
Cooling :
Thermoelectric
Software :
Compatible with Windows and Linux
Spectral Range :
Shortwave to Longwave
Dynamic Range :
14-bit to 16-bit
Interface :
USB 2.0 or Gigabit Ethernet
Power Supply :
5V or 12V
Description

Gas Detectors,Mid-wave Narrowband Cooled Detector,Type II superlattice mid-wave infrared small detector

Gas Detectors

YZT-TCQ-03 Mid-wave Narrowband Cooled Detector

Gas Detectors Mid-Wave Cooled Narrow Band Detector Type II Superlattice 15mK NETD

Product Features

Small size 117 × 65 × 64 mm
Light Weight ≤ 530 g
High Reliability MTTF ≥15000 h
Low Power 12W@23℃
Specially image algorithm
NETD 15mK

Application Areas

Used in fields such as petroleum, chemical, pharmaceutical, steel, special industrial plants and other places where flammable gases exist.

Gas Detectors Mid-Wave Cooled Narrow Band Detector Type II Superlattice 15mK NETD

Technical Parameters

Detector Detector Type Mid-wave infrared small detector
Resolution 640 × 512
Pixel size 15μm × 15μm
Response band 4.5 μm ~ 4.7 μm
Effective pixel rate ≥ 99.5%
Refrigeration time at room temperature (23°C) ＜ 7mins
Refrigeration method Linear Stirling Refrigerator
F-number 1.5
Service life (MTTF) 15000h
Video Output Frame rate 2 5H z / variable frame rate
Analog Output PAL / NTSC
Digital Output Cameralink (14-bit raw data or 8-bit video data)
Control performance Image Adjustment Contrast, brightness, image polarity, shutter correction, background correction, detail enhancement, electronic magnification
Cross-section show/ Blanking
Integration time Continuously adjustable
power supply Input voltage DC 12V ± 1V
Power consumption Cooling 28W / Steady 15W
Environmental parameters Operating temperature -40℃ ~ +60℃
Storage temperature -50℃ ~ +70℃

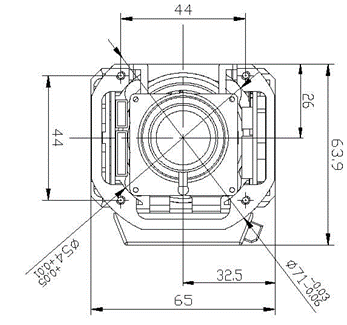

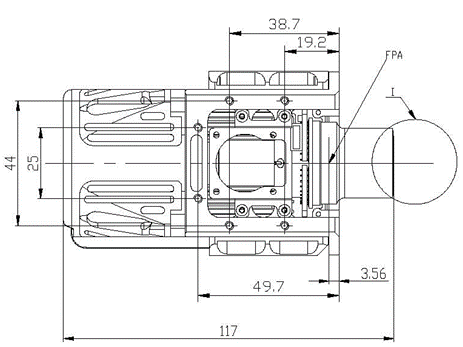

Physical properties size 117mm × 65mm × 64mm (without lens)
weight ≤ 530g (without lens)

Gas Detectors Mid-Wave Cooled Narrow Band Detector Type II Superlattice 15mK NETDGas Detectors Mid-Wave Cooled Narrow Band Detector Type II Superlattice 15mK NETD
