MWIR Cooled Infrared Thermal Modules Mid Wave Infrared 117x65x64mm
MWIR Cooled Infrared Thermal Modules Mid Wave Infrared 117x65x64mm
MWIR Cooled Infrared Thermal Modules Mid Wave Infrared 117x65x64mm
MWIR Cooled Infrared Thermal Modules Mid Wave Infrared 117x65x64mm
MWIR Cooled Infrared Thermal Modules Mid Wave Infrared 117x65x64mm
MWIR Cooled Infrared Thermal Modules Mid Wave Infrared 117x65x64mm
Specifications
Brand Name :
FOVA
Model Number :
YZT-TCQ-01
Certification :
CE;FCC
Place of Origin :
SHENZHEN
MOQ :
3
Payment Terms :
T/T
Supply Ability :
10000PCS/Month
Delivery Time :
7-15work days
Packaging Details :
117 × 65 × 64 mm
Frame Rate :
Up to 1000 fps
Pixel Size :
10μm to 25μm
Detector Type :
Infrared
Applications :
Thermal imaging, gas detection, night vision
Operating Temperature :
-50°C to70°C
Sensitivity :
High
Dimensions :
Small and compact
Cooling :
Thermoelectric
Software :
Compatible with Windows and Linux
Spectral Range :
Shortwave to Longwave
Dynamic Range :
14-bit to 16-bit
Interface :
USB 2.0 or Gigabit Ethernet
Power Supply :
5V or 12V
Description

Gas Detectors,Medium Wave Narrow band Cooled Detector,Type II superlattice mid-wave infrared small detector

Gas Detectors

YZT-TCQ-01 Medium Wave Narrow band Cooled Detector

MWIR Cooled Infrared Thermal Modules Mid Wave Infrared 117x65x64mm

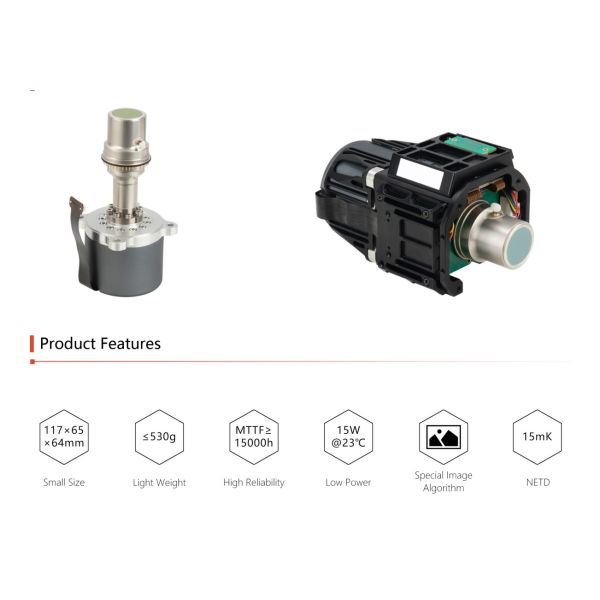

Product Features

Small size 117 × 65 × 64 mm
Light Weight ≤ 530 g
High reliability M TTF ≥ 15000 h
Lowpower 15W@23℃
Specially tuned image algorithm
NETD 15mk

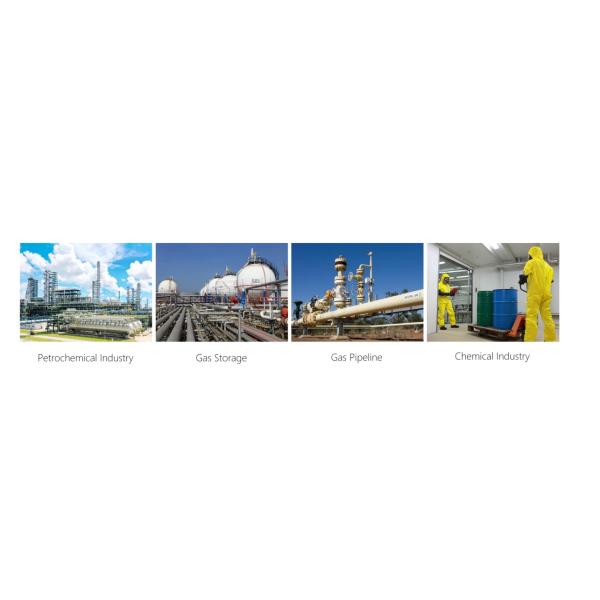

Application Areas

Used for gas detection in industrial production, industrial bases that require safe and efficient long-distance detection.

Used for industrial purposes such as construction, pipeline inspection, and line maintenance.

MWIR Cooled Infrared Thermal Modules Mid Wave Infrared 117x65x64mm

Petrochemical

 Gas Storage

Gas Transportation

Hazardous chemicals industry

Gas Transportation

Hazardous chemicals industry

Technical Parameters

Detector Detector Type Mid-wave infrared small detectors
Resolution 640 × 512
Pixel size 15μm × 15μm
Response band 3.2μm ~ 3.5μm
Effective pixel rate ≥ 99.5%
Refrigeration time at room temperature (23°C) ＜ 7mins
Refrigeration method Linear Stirling Refrigerator
F-number 1.5
Service life (MTTF) 15000h
Video Output Frame rate 2 5H z / variable frame rate
Analog Output PAL / NTSC
Digital Output Cameralink (14-bit raw data or 8-bit video data)
Control performance Image Adjustment Contrast, brightness, image polarity, shutter correction, background correction, detail enhancement, electronic magnification
Cross-section show/ Blanking
Integration time Continuously adjustable (50 ~ 150ms)
Power supply Input voltage DC 12V ± 1V
Power consumption Cooling 28W / Steady 15W
Environmental parameters Operating temperature -40℃ ~ +60℃
Storage temperature -50℃ ~ +70℃
Physical properties size 117mm × 65mm × 64mm (without lens)
weight ≤ 530g (without lens)

MWIR Cooled Infrared Thermal Modules Mid Wave Infrared 117x65x64mmMWIR Cooled Infrared Thermal Modules Mid Wave Infrared 117x65x64mm
