Specifications
Brand Name :
FOVA
Model Number :
YZT-CJ-1010
Place of Origin :
SHENZHEN
Certification :
CE;FCC
MOQ :
10PCS
Packaging Details :
27mmx22mmx17mm
Delivery Time :
7-15 working day
Payment Terms :
T/T
Supply Ability :
5000Pcs/Month
Laser divergence angle :
≤ 0.5mrad
Operating Temperature :
-40°C To 60°C
Function :
Measuring Distance
Stealth Ranging :
No Red Flash
Ranging accuracy :
±2m
Application :
Surveying, Mapping, Geodesy
Warranty Years :
1 Year
Continuous ranging frequency :
1-10 (Adjustable)Hz
Description

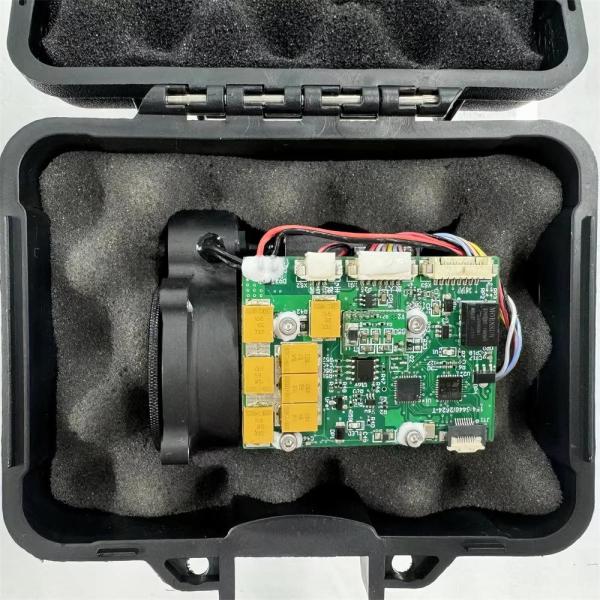

YZT-CJ-1010A Laser Range Finder Module

Handheld rangefinder/Telescope,10km laser rangefinder module,Outdoor hunting/UAV/Laser detection/Positioning/Car-mounted

Technical Specification

Handheld rangefinder/Thermal imaging/Telescope/Outdoor hunting/UAV/Photoelectric pod/Photoelectric/turntable/Laser detection/Positioning/Vehicle-mounted

1.General

YZT-CJ-1010A laser ranging module is the eye safety laser ranging module in the photoelectric system, which can detect the target distance and transmit the measured distance to the host computer through serial communication.

2.Structure composition and main function index

The YZT-CJ-1010A laser ranging module consists of a laser, a transmitting optical system, a receiving optical system and a control circuit. The main performance is as follows:

2.1 Operating range

Visibility under visible conditions is not less than 15km, diffuse reflectance ≥0.3, humidity ≤80%, the vehicle (2.3m×2.3m target) ranging distance ≥10km.

2.2 Features

The main functions of the laser ranging module are:

a) single ranging and continuous ranging;

b) Range strobe, front and rear target indication;

c) Self-inspection function.

2.3 Performance

Wavelength: 1535nm±5nm;

Laser divergence Angle: ≤0.3mrad;

Continuous ranging frequency: 1~10Hz adjustable;

Ranging accuracy: ≤±2m (RMS);

Accuracy: ≥98%;

Minimum measuring range: ≤50m;

Ranging resolution: ≤30m (multi-target);

Power supply voltage: DC9V ~ 16V (can be customized);

Weight: ≤140g;

Power: average power consumption ≤1.5W (1Hz operation), peak power consumption ≤5W;

Size: ≤83mm×68mm×46mm;

Working temperature: -40℃ ~ +60℃;

Storage temperature: -50℃ ~ +70℃;

2.4 Interface

Communication interface: RS422, 115200bps

Electrical interface: The interface model is Molex connector 51021-0800. The interface definition is described in the following table.

8P socket wiring definition
No. Definition Wire color Remarks
1 RS422 RX+ Brown RS422 receive +
2 RS422 RX- Blue RS422 receive -
3 RS422 TX- Yellow RS422 send -
4 RS422 TX+ Purple RS422 send +
5 GND White Communication interface
6 +12V Red Power supply
7 GND Black Power supply earthing
8 Empty Green Empty

Installation dimension

Handheld rangefinder/Telescope,10km laser rangefinder module,Outdoor hunting/UAV/Laser detection/Positioning/Car-mounted

3. Precautions for use

The laser emitted by the rangefinder is 1535nm for human eye safety laser, although it is a human eye safety wavelength, but it is recommended not to look directly at the laser;

When adjusting the parallelism of the optical axis, the receiving lens must be blocked, otherwise the detector will be permanently damaged due to excessive echo;

The measuring module is non-airtight, and must ensure that the relative humidity of the use environment is less than 80%, and ensure that the use of the environment is clean and sanitary, so as not to damage the laser;

The range measurement of the rangefinder is related to the atmospheric visibility and the nature of the target, and the range measurement will be reduced in the case of fog, rain and wind sand. Green leaf clusters, white walls, exposed limestone and other targets have better reflectivity, which can increase the measurement range. In addition, when the Angle of the target to the laser beam increases, the measurement range will be reduced.

It is strictly forbidden to emit laser to strong reflection targets such as glass and white walls within 50 meters, so as to avoid too strong echo, resulting in damage to the APD detector;

Do not plug and unplug the cable in the energized state;

Ensure that the power supply polarity connection is correct, otherwise it will cause permanent damage to the equipment;

Product Description:

One of the standout features of this Laser Ranging product is its interface, which includes both RS232 and RS422 options. This ensures compatibility with a wide range of devices and systems, making it a versatile and flexible solution for any project. In addition, the product operates at a frequency of 1 Hz, providing real-time measurements with high accuracy and precision.

With dimensions of 790 mm x 600 mm x 465 mm, this Laser Ranging product is compact and portable, allowing for easy transport and use in a variety of settings. Its voltage supply ranges from DC6 to 36, making it compatible with a range of power sources and ensuring reliable performance in any environment.

Another key feature of this Laser Ranging product is its beam divergence, which is less than 1 mrad. This ensures that the infrared laser pointer remains highly focused and accurate, providing precise measurements even over long distances.

In summary, our Laser Ranging product is a high precision distance sensor that offers advanced features and capabilities for professionals in a range of industries. With its versatile interface, real-time measurements, compact size, and precise beam divergence, this product is the perfect tool for any project that requires accurate and reliable distance measurements.

Features:

  • Product Name: Laser Ranging
  • Feature: Small Size
  • Ranging accuracy: ±2m
  • Wavelength: 1535 Nm
  • Advantage: Eye-safe
  • Dimensions: 790 Mm X 600 Mm X 465 Mm
  • High Precision Laser Distance Sensor
  • Infrared Laser Pointer

Technical Parameters:

Product Attribute Technical Parameters
Product Name High Precision Distance Sensor
Product Type Industrial Laser Distance Sensor
Highlight High Precision
Operating Temperature -40°C To 60°C
Resolution 0.1 Meter
Stealth Ranging No Red Flash
Weight ≤145g
Application Surveying, Mapping, Geodesy
Ranging Accuracy ±2m
Frequency 1 Hz
Dimensions 790 Mm X 600 Mm X 465 Mm
Advantage Eye-safe

Applications:

The YZT-CJ-1010 laser ranging product emits a laser beam with a wavelength of 1535 Nm and a beam divergence of less than 1 Mrad. It has a low power consumption, making it an energy-efficient option. Its measuring range is between 20~5000m, providing accurate distance measurements for various applications.

This laser ranging product has several product application occasions and scenarios. One of its common uses is in the field of surveying and mapping. The YZT-CJ-1010 can accurately measure distances between two points, which is essential in creating accurate maps and models.

Another application for this product is in the construction industry. Architects and builders can use the YZT-CJ-1010 to take precise measurements for their projects. This can help them determine the amount of materials needed and ensure that everything is built to the correct specifications.

The YZT-CJ-1010 can also be used in the automatic laser marking machine. This machine uses the laser ranging product to measure the distance between the laser and the material being marked. This ensures that the marking is done with precision and accuracy.

Finally, the YZT-CJ-1010 is also popularly used as a digital laser distance meter. This is especially useful for DIY enthusiasts who need to take accurate measurements for their projects. The product's measuring range and accuracy make it a reliable tool for these types of applications.

FAQ:

Q: What is the brand name of the laser ranging product?

A: The brand name of the laser ranging product is FOVA.

Q: What is the model number of the laser ranging product?

A: The model number of the laser ranging product is YZT-CJ-1010.

Q: What is the place of origin of the laser ranging product?

A: The place of origin of the laser ranging product is SHENZHEN.

Q: What certification does the laser ranging product have?

A: The laser ranging product has CE certification.

Q: What is the minimum order quantity for the laser ranging product?

A: The minimum order quantity for the laser ranging product is 10PCS.

Q: What are the packaging details for the laser ranging product?

A: The packaging details for the laser ranging product are 27mmx22mmx17mm.

Q: What is the delivery time for the laser ranging product?

A: The delivery time for the laser ranging product is 7-15 working days.

Q: What are the payment terms for the laser ranging product?

A: The payment terms for the laser ranging product are T/T.

Q: What is the supply ability of the laser ranging product?

A: The supply ability of the laser ranging product is 100,000Pcs/Month.
