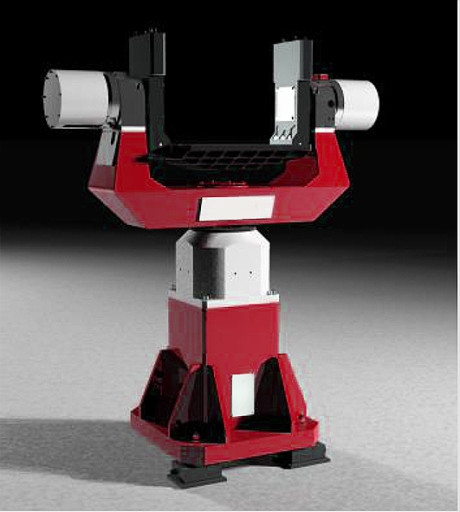

The three-axis turntable can generate motion excitations such as angular position, angular velocity and angular acceleration in three directions, and test gyroscopes

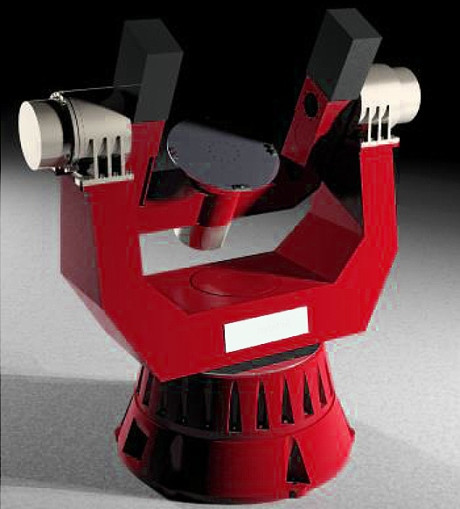

The three-axis turntable can generate motion excitations such as angular position, angular velocity and angular acceleration in three directions, and test gyroscopes

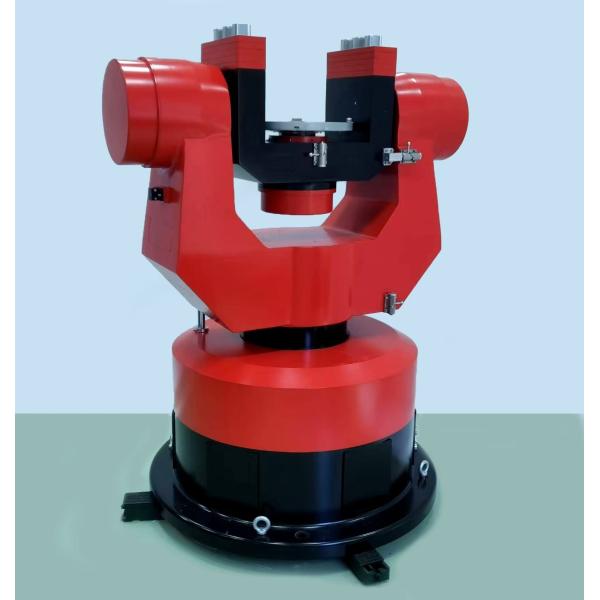

The three-axis turntable can generate motion excitations such as angular position, angular velocity and angular acceleration in three directions, and test gyroscopes
The three-axis turntable can generate motion excitations such as angular position, angular velocity and angular acceleration in three directions, and test gyroscopes
The three-axis turntable can generate motion excitations such as angular position, angular velocity and angular acceleration in three directions, and test gyroscopes
The three-axis turntable can generate motion excitations such as angular position, angular velocity and angular acceleration in three directions, and test gyroscopes
The three-axis turntable can generate motion excitations such as angular position, angular velocity and angular acceleration in three directions, and test gyroscopes
The three-axis turntable can generate motion excitations such as angular position, angular velocity and angular acceleration in three directions, and test gyroscopes
Specifications
Brand Name :
FOVA
Model Number :
3FV700
Place Of Origin :
SHENZHEN
Certification :
CE;FCC
MOQ :
1
Delivery Time :
20
Supply Ability :
1000PCS/MONTH
Slip ring number :
10~50
MTBF :
≥ 2000
Leakage flux :
<0.5
Angular position range :
±0〜 ±360
Speed smoothness :
1 × 10 -3 ;1 × 10 -4; 5 × 10 -5
Angular rate accuracy :
ω＜1;1<ω＜10; 10<ω
Structural form :
Vertical
Slip-ring voice :
≤± 0. 03
Description

Product Description:

The three-axis turntable can generate motion excitations such as angular position, angular velocity and angular acceleration in three directions, and test gyroscopes

The three-axis turntable can generate motion excitations such as angular position, angular velocity and angular acceleration in three directions, and test gyroscopes


The three-axis turntable can generate motion excitations such as angular position, angular velocity and angular acceleration in three directions, and test gyroscopes

DESCRIPTIONS

The three-axis turntable series is a kind of precision test equipment , which can generate motion excitation such as angular position , angular rate and angular acceleration in three directions to realize the test of the measured parts such as gyro , inertial measurement

device and accelerometer. It can also realize the motion simulation of the three rotation directions of space , angular vibration , sway and

other dynamic movements .The turntable control system is composed of high performance control unit , high precision Angle measuring

system , PWM digital servo amplifier and direct drive servo motor. Main components: support, drive motor, power amplifier, Angle measuring element , AD/ DA card , etc. (all imported products) . Structure form: The mechanical platform adopts U-O-O or U-U-T structure form . Product category: speed position turntable , Angle shaking table , swaying table.

Mesa material

Stainless steel/aluminum alloy optional

customizable

Index

3FV300

3FV400

3FV500

3FV600

3FV700

Maximum load weight

30

40

30~50

30~60

50~70

Kg(Optional)

Table size

Φ300

Φ400

Φ500

Φ600

Φ700

mm

Mesa flatness

0.02

0.02

0.05

0.05

0.05

mm

Table height

400

540

640

740

840

mm

Rotation accuracy

±1~3

±1~3

±1~3

±1~3

±1~3

″(Optional)

Angular position range

±0〜 ±360

±0〜 ±360

±0〜 ±360

±0〜 ±360

±0〜 ±360

°

Angular position accuracy

±1~3

±1~3

±1~3

±1~3

±1~3

″(Optional)

Angular resolution

0.0001

0.0001

0.0001

0.0001

0.0001

°

Angular rate range

0.001〜10000

0.001〜4500

0.001〜2000

0.001〜1500

0.001〜1000

°/s

Angular rate accuracy

ω＜1

1<ω＜10

10 < ω

ω＜1

1<ω＜10

10 < ω

ω＜1

1<ω＜10

10 < ω

ω＜1

1<ω＜10

10 <ω

ω＜1

1<ω＜10

10 < ω

ω＜1

1<ω＜10

10 <ω

Speed smoothness

1 × 10 -3

1 × 10 -3

1 × 10 -3

1 × 10 -3

1 × 10 -3

1° Average

1 × 10 -4

1 × 10 -4

1 × 10 -4

1 × 10 -4

1 × 10 -4

10 ° Average

5 × 10 -5

5 × 10 -5

5 × 10 -5

5 × 10 -5

5 × 10 -5

360 ° Average

Maximum angular

acceleration

Inner10000

Inner4500

Inner3000

Inner2000

Inner2000

Middle3000

Middle2000

Middle1500

Middle1000

Middle1000

°/s2

Outer2000

Outer1000

Outer500

Outer300

Outer300

customizable

Rate resolution

0.0001

0.0001

0.0001

0.0001

0.0001

°

Slip ring number

10~80

10~80

10~80

10~80

10~80

Optioanl

System bandwidth

5 ~ 1 0 0 Hz

5~ 80 Hz

5~ 50 Hz

5~50 Hz

5~ 50 Hz

Hz(Optional)

Slip-ring voice

0.03

0.03

0.03

0.03

0.03

V

Leakage flux

±0.5

±0.5

±0.5

±0.5

±0.5

mT


Support and Services:

The Product Technical Support and Services for the Single Axis Turntable include:

- Assistance with product setup and installation

- Troubleshooting technical issues

- Providing software updates and patches

- Offering user training and product demonstrations

- Warranty support and repair services

- Product customization options


Packing and Shipping:

Product Packaging and Shipping for Single Axis Turntable:

Our Single Axis Turntable is carefully packaged to ensure safe delivery to you. The product is securely wrapped in bubble wrap and placed in a sturdy cardboard box to prevent any damage during transit.

Shipping Method: We offer standard shipping via reputable carriers to ensure timely and safe delivery of your Single Axis Turntable.
