Micro OLED Microdisplay,Display 0.71 Inch, SizeVertical RGB Strip Full Color OLED Display with Maximum Brightness of 5000 Cd/m2 and Color Pixel Arrangement
Micro OLED Microdisplay,Display 0.71 Inch, SizeVertical RGB Strip Full Color OLED Display with Maximum Brightness of 5000 Cd/m2 and Color Pixel Arrangement
Micro OLED Microdisplay,Display 0.71 Inch, SizeVertical RGB Strip Full Color OLED Display with Maximum Brightness of 5000 Cd/m2 and Color Pixel Arrangement
Micro OLED Microdisplay,Display 0.71 Inch, SizeVertical RGB Strip Full Color OLED Display with Maximum Brightness of 5000 Cd/m2 and Color Pixel Arrangement
Specifications
Brand Name :
FOVA
Model Number :
0.71 inch Micro OLED Microdisplay
Place of Origin :
SHENZHEN
Certification :
CE/FCC
MOQ :
10
Price :
Negotiable
Delivery Time :
20
Payment Terms :
T/T
Supply Ability :
10000PCS/M
Resolution :
1920×1080
Interface :
RGB
Color Pixel Arrangement :
Vertical RGB Strip
Maximum brightness :
5000 Cd/m²
Display Color :
Full Color
Display Size :
0.71 Inch
Active Area :
15.94×9.04mm
Description

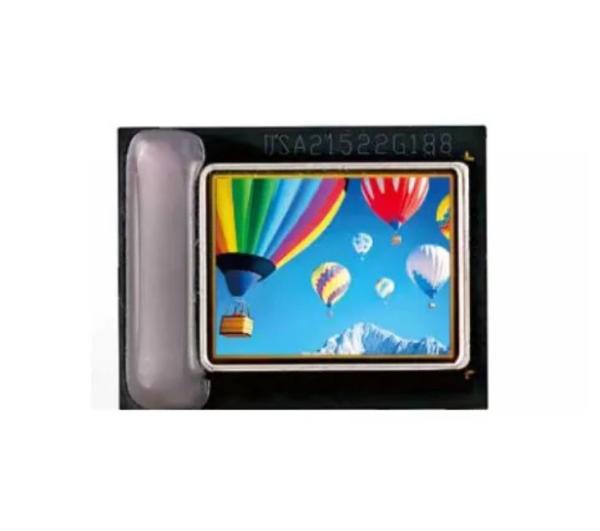

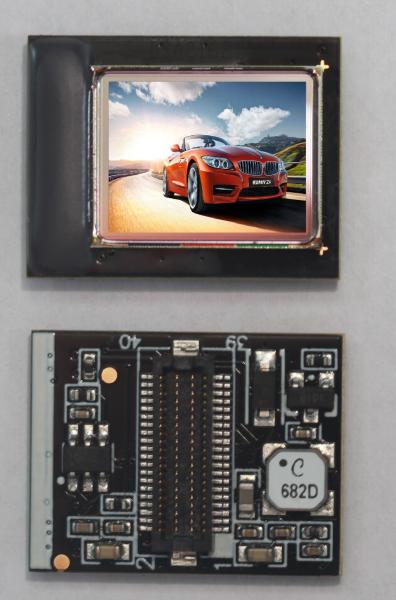

A 1920(RGB) 1080 dots 0.71 inch silicon based Micro OLED Microdisplay is given .It is built with single crystal silicon transistors. In order to achieve small size, light weight, and excellent definition, this panel combines a panel driver with a logic driver.

Micro OLED Microdisplay,Display 0.71 Inch, SizeVertical RGB Strip Full Color OLED Display with Maximum Brightness of 5000 Cd/m2 and Color Pixel Arrangement

Product Description

The 0.71-inch Micro OLED Microdisplay, which is silicon-based, can show pictures and videos taken by infrared cameras and other IR imaging equipment. Users can perceive the infrared spectrum and observe items that are not visible to the human eye in low light thanks to its optimization for presenting IR photos.In addition to others, it has uses in the domains of security, military, medicine, industry, and aerial photography.

Parameters of 0.71 inch silicon based Micro OLED Microdisplay

Display Size 0.71 inch
Resolution 1920×1080
Maximum brightness 5000cd/m2
Display Color Full Color
Interface MIPI
Color Pixel Arrangement Scalene hexagon
Active Area 15.94mm×9.04mm

Specifications of 0.71 inch silicon based Micro OLED Microdisplay

Display Size 0.71 inch
Resolution 1920×1080
Maximum brightness 5000cd/m2
Display Color Full Color
Interface MIPI
Color Pixel Arrangement Scalene hexagon
Active Area 15.94mm×9.04mm

● Active Pixels: 1920×1080(FHD)

● I²C +MIPI(2/3/4lanes)

● Up to 90Hz frame rate

● Color space conversion,Contrast and brightness adjustment

● Built-in OTP for gamma correction,Support temperature compensation for VCOM with internal temperature sensor

● Applications: A variety of miniaturized, high PPI, low power consumption and wide operating temperature range of near-eye display system
