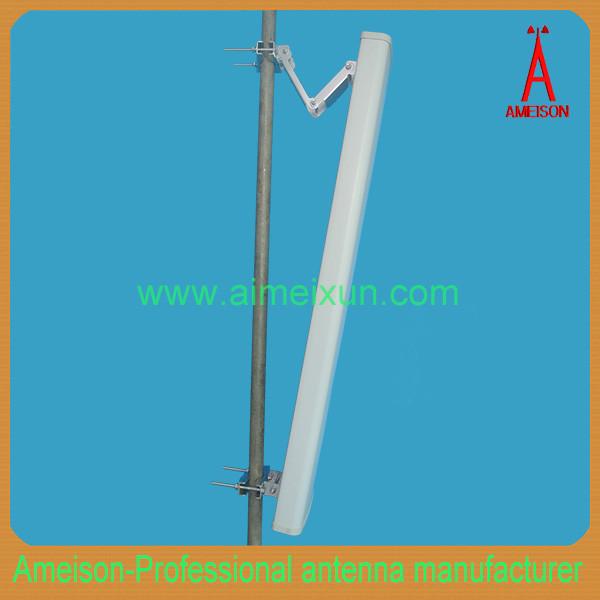

2400-2500MHz 18dBi Directional Panel Antenna 2.4ghz antenna wifi antenna
2400-2500MHz 18dBi Directional Panel Antenna 2.4ghz antenna wifi antenna
2400-2500MHz 18dBi Directional Panel Antenna 2.4ghz antenna wifi antenna
2400-2500MHz 18dBi Directional Panel Antenna 2.4ghz antenna wifi antenna
2400-2500MHz 18dBi Directional Panel Antenna 2.4ghz antenna wifi antenna
2400-2500MHz 18dBi Directional Panel Antenna 2.4ghz antenna wifi antenna
2400-2500MHz 18dBi Directional Panel Antenna 2.4ghz antenna wifi antenna
2400-2500MHz 18dBi Directional Panel Antenna 2.4ghz antenna wifi antenna
2400-2500MHz 18dBi Directional Panel Antenna 2.4ghz antenna wifi antenna
2400-2500MHz 18dBi Directional Panel Antenna 2.4ghz antenna wifi antenna
Specifications
Place of Origin :
China
Brand Name :
AMEISON
Model Number :
AMXP-2425V-D18L65
Certification :
ISO 9001: 2008
Frequency range（MHz） :
2400～2500
Polarization :
Vertical
Gain（dBi） :
17.5
Input Impedance（Ω） :
50
VSWR :
≤1.5
Maximum input power（W） :
200
Lightning protection :
DC Ground
Input connector type :
N Female
Price :
EXW Price
Packaging Details :
PP bag /inner box/master carton or customized
Delivery Time :
10-20 working days
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
MOQ :
100
Description

2400-2500MHz Directional Panel Antenna

AMXP-2425V-D18L65

Feature:

High gain

Full day working

Optimized dimension

Vertical or horizontal

Application:

2.4 GHz WLAN system

2.4 GHz ISM band

Public wireless hot spot coverage

Wi-Fi system

AMXP-2425V-D18L65

Electrical Specifications

Frequency range(MHz)

2400～2500

Polarization

Vertical

Gain(dBi)

17.5

Half-power beam width(°)

H:65 V:7

Front-to-back ratio(dB)

≥25

Input Impedance(Ω)

50

VSWR

≤1.5

Sidelobe suppression for first sidelobe above horizon

15 dB

Maximum input power(W)

200

Lightning protection

DC Ground

Mechanical Specifications

Input connector type

N Female

Dimensions-mm (Height/Width/Depth)

1000*175*80

Packing size(mm)

1080*200*150

Antenna weight (kg)

6.5

Radome material

UPVC

Radome color

Gray

Mechanical tilt(°)

0～10

Operating temperature:(°c)

-40～60

Rated Wind Velocity(m/s)

60

Mounting hardware(mm)

￠35～￠75
