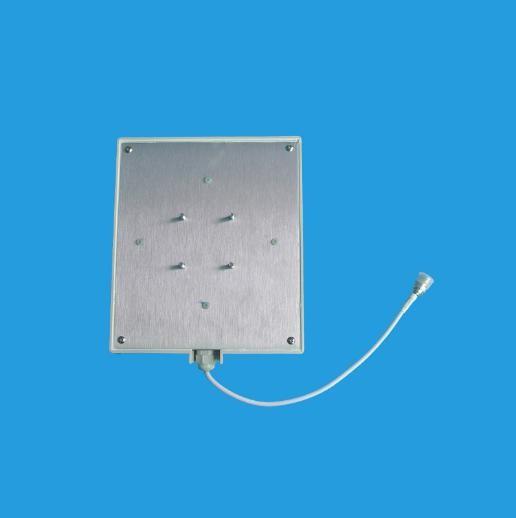

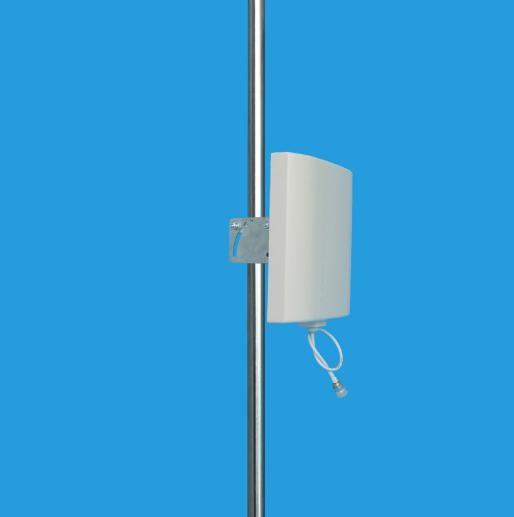

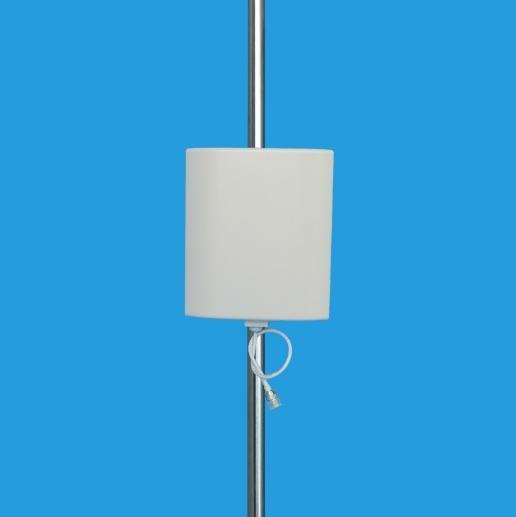

AMEISON 450-470MHz 6dBi Vertical polarization Directional Panel Antenna with N female
AMEISON 450-470MHz 6dBi Vertical polarization Directional Panel Antenna with N female
AMEISON 450-470MHz 6dBi Vertical polarization Directional Panel Antenna with N female
AMEISON 450-470MHz 6dBi Vertical polarization Directional Panel Antenna with N female
AMEISON 450-470MHz 6dBi Vertical polarization Directional Panel Antenna with N female
AMEISON 450-470MHz 6dBi Vertical polarization Directional Panel Antenna with N female
Specifications
Place of Origin :
China
Brand Name :
AMEISON
Model Number :
AMXW-450-6
Certification :
ISO 9001: 2008
Price :
EXW Price
Packaging Details :
PP bag /inner box/master carton or customized
Delivery Time :
10-20 working days
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
MOQ :
100
Frequency range（MHz） :
450-470
Bandwidth（MHz） :
20
Gain（dBi） :
6
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Female or Requested
Mounting hardware（mm） :
￠35-￠50
Description

AMEISON 450-470MHz 6dBi Vertical polarization Directional Panel Antenna with N female

Feature:

Exquisite appearance

Good impact resistance,waterproofing and anticorrosion ability

Full day working

Optimized dimension

High gain,low standing wave,strong anti-interference ability

Application:

450-470 band communication system

AMXW-450-6

Electrical Specifications
Frequency range(MHz) 450-470
Bandwidth(MHz) 20
Gain(dBi) 6
Half-power beam width(°) H:70 V:65
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type N Female
Mechanical Specifications
Dimensions-mm (Height/Width/Depth) 225*195*47
Antenna weight(kg) 0.6
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome material ABS
Radome color white
Mounting hardware(mm) ￠35-￠50
Product tags

dual polarized antenna 2.4 5.8

,

2.4g panel antenna

,

433mhz antenna design
