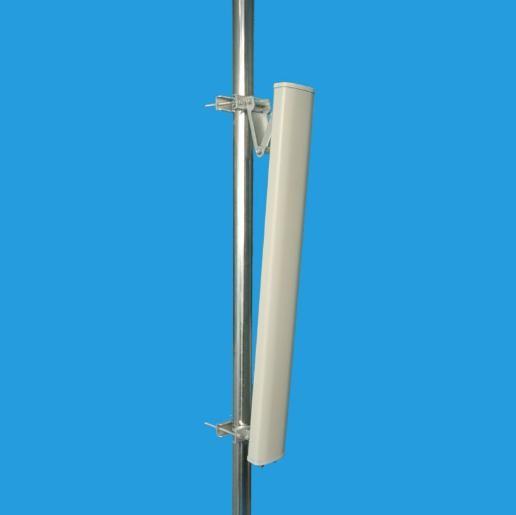

3300-3800MHz High gain 16dbi Dual Cross Pol 120°Directional Sector Panel Antenna 2 ports for 3GPP bands 42, 43 and 48
3300-3800MHz High gain 16dbi Dual Cross Pol 120°Directional Sector Panel Antenna 2 ports for 3GPP bands 42, 43 and 48
3300-3800MHz High gain 16dbi Dual Cross Pol 120°Directional Sector Panel Antenna 2 ports for 3GPP bands 42, 43 and 48
3300-3800MHz High gain 16dbi Dual Cross Pol 120°Directional Sector Panel Antenna 2 ports for 3GPP bands 42, 43 and 48
3300-3800MHz High gain 16dbi Dual Cross Pol 120°Directional Sector Panel Antenna 2 ports for 3GPP bands 42, 43 and 48
3300-3800MHz High gain 16dbi Dual Cross Pol 120°Directional Sector Panel Antenna 2 ports for 3GPP bands 42, 43 and 48
3300-3800MHz High gain 16dbi Dual Cross Pol 120°Directional Sector Panel Antenna 2 ports for 3GPP bands 42, 43 and 48
3300-3800MHz High gain 16dbi Dual Cross Pol 120°Directional Sector Panel Antenna 2 ports for 3GPP bands 42, 43 and 48
Specifications
Place of Origin :
China
Brand Name :
AMEISON
Model Number :
AMXP-3338S-D16L120
Certification :
ISO 9001: 2008
Price :
EXW Price
Packaging Details :
PP bag /inner box/master carton or customized
Delivery Time :
10-20 working days
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
MOQ :
10
Frequency Range :
3300～3800MHz
Polarization :
±45º
Gain（dBi） :
2×16
VSWR :
≤1.5
Maximum input power（W） :
200
Lightning protection :
DC Ground
Input connector type :
2-N Female
Mounting hardware（mm） :
￠35～￠75
Description

3300 - 3800 MHz Wide band Dual Cross Pol 120⁰ Directional Sector Panel Antenna for 3GPP bands 42, 43 and 48

Feature:

Improving high gain performance

Wide-band antenna for 3GPP bands 42, 43 & 48

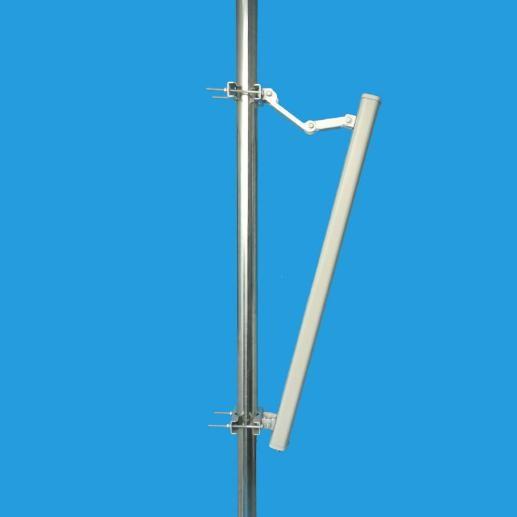

Mounting bracket with 0～10⁰ tilt

Dual Cross polarization +/- 45⁰

Application:

provide wireless network operators the high performance and quality.

3.3G～3.8G wireless access coverage.

AMXP-3338S-D16L120

Electrical Specifications
Frequency range(MHz) 3300～3800
Polarization ±45º
Gain(dBi) 2×16
Half-power beam width(°) H:120 V:7
Front-to-back ratio(dB) ≥18
Input Impedance(Ω) 50
VSWR ≤1.5
Isolation between ports ≥28dB
Cross-polar ratio ≥15dB@0º ≥10dB@+/-60º
Sidelobe suppression for first sidelobe above horizon 15 dB
Maximum input power(W) 200
Lightning protection DC Ground
Mechanical Specifications
Input connector type 2-N Female
Dimensions-mm (Height/Width/Depth) 760*114*54
Packing size(mm) 800*155*145
Antenna weight (kg) 2.0
Radome material UPVC
Radome color Gray
Mechanical tilt(°) 0～10
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Mounting hardware(mm) ￠35～￠75
