2400-2483MHz 7dBi Omnidirectional Fiberglass Antenna 2.4ghz antenna wifi WLAN antenna
2400-2483MHz 7dBi Omnidirectional Fiberglass Antenna 2.4ghz antenna wifi WLAN antenna
2400-2483MHz 7dBi Omnidirectional Fiberglass Antenna 2.4ghz antenna wifi WLAN antenna
2400-2483MHz 7dBi Omnidirectional Fiberglass Antenna 2.4ghz antenna wifi WLAN antenna
2400-2483MHz 7dBi Omnidirectional Fiberglass Antenna 2.4ghz antenna wifi WLAN antenna
2400-2483MHz 7dBi Omnidirectional Fiberglass Antenna 2.4ghz antenna wifi WLAN antenna
2400-2483MHz 7dBi Omnidirectional Fiberglass Antenna 2.4ghz antenna wifi WLAN antenna
2400-2483MHz 7dBi Omnidirectional Fiberglass Antenna 2.4ghz antenna wifi WLAN antenna
Specifications
Place of Origin :
China
Brand Name :
AMEISON
Model Number :
AMXF-2400-7
Certification :
ISO 9001: 2008
Frequency range（MHz） :
2400～2483
Bandwidth（MHz） :
83
Gain（dBi） :
7
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Female or Requested
Mounting way :
Pole-holding
Price :
EXW Price
Packaging Details :
PP bag /inner box/master carton or customized
Delivery Time :
10-20 working days
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
MOQ :
100
Description

2400-2483MHz Omnidirectional Fiberglass Antenna

AMXF-2400-7

Feature:

Exquisite appearance

Good impact resistance, waterproofing and anticorrosion ability

Full day working

Optimized dimension

High gain,low standing wave,strong anti-interference ability

Application:

2.4GHz WLAN system

WiFi system

Point-to-multipoint system

AMXF-2400-7

Electrical Specifications

Frequency range(MHz)

2400～2483

Bandwidth(MHz)

83

Gain(dBi)

7

Half-power beam width(°)

H:360 V:15

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

100

Lightning protection

DC Ground

Input connector type

N Female or Requested

Mechanical Specifications

Dimensions (mm)

Φ18.2*495

Antenna weight(kg)

0.35

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome color

White

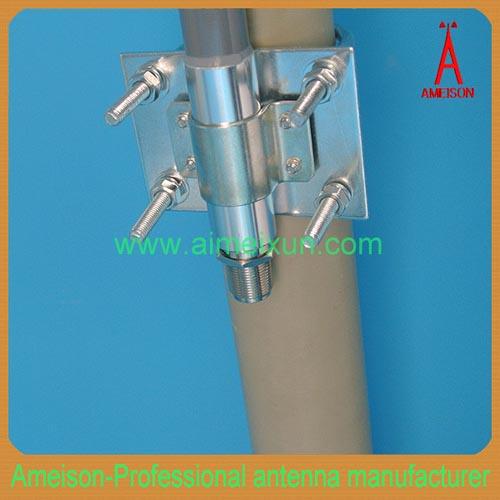

Mounting way

Pole-holding

Mounting hardware(mm)

￠35-￠50
