2.4 GHz Flat Panel Antenna
Factory price
All weather operation
Included Mounting bracket
Heavy Duty UV-Resistant Radome

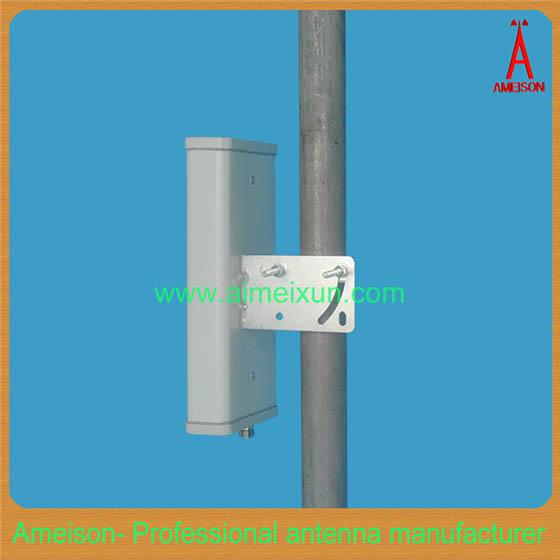

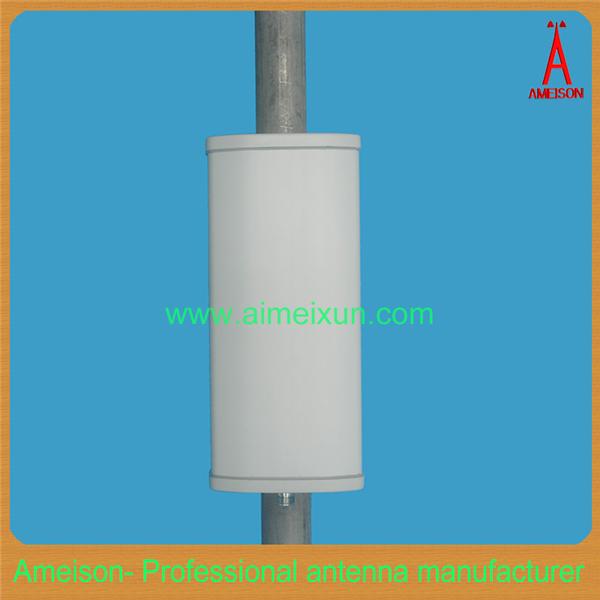

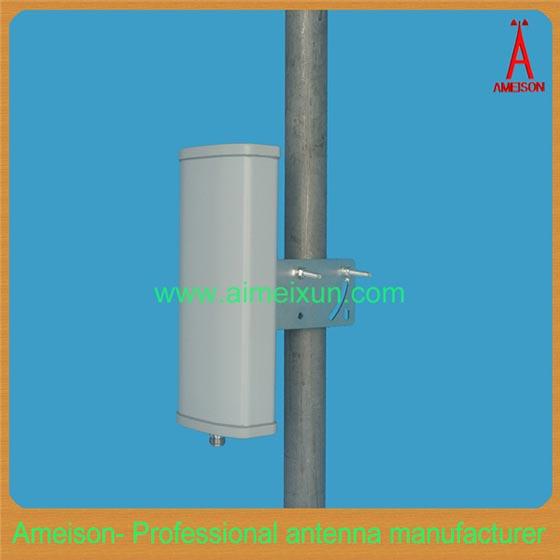

2.4 GHz 15 dBi Dual Polarized Flat Panel Antenna

Model No.: AMXW-2425VH-D15L65

The Amesion AMXW-2425VH-D15L65 Flat Panel Antenna combines vertical and horizontal polarization with high gain in a single enclosure. It is a professional quality antenna designed primarily for MIMO point-to-multipoint and point-to-point applications in the 2.4 GHz frequency bands. The unit can be used with APs and Routers with 1 or 2 antenna ports.

Rugged and Weatherproof

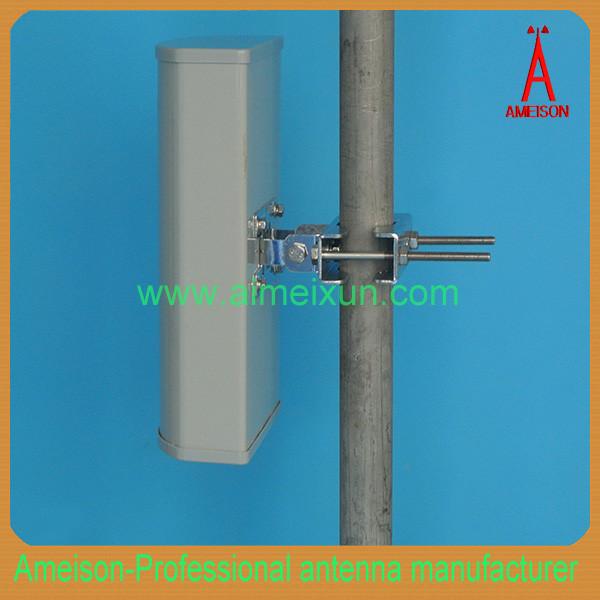

This antenna features a heavy-duty UV-resistant plastic radome for all-weather operation. The AMXW-2425VH-D15L65 antenna is supplied with a stainless steel tilt and swivel mast mount kit. This allows quick installation at various degrees of up/down tilt for easy alignment.

For additional information and complete specifications, Please check the data sheet below.

Features:

Vertical and horizontal polarization

Dual polarity feed system - (2) N-Female connectors

UV-resistant radome for all-weather operation

High gain operation

Includes tilt and swivel mast mounting

Applications:

IEEE 802.11b/g/n Wireless LAN

2.4 GHz ISM band

MIMO applications

Wireless Internet Provider "Cell" sites

Public wireless hotspot

AMXW-2425VH-D15L65 Electrical Specifications

Frequency range(MHz) 2400~2500

Polarization Vertical and Horizontal

Gain(dBi) 2×15

Half-power beam width(°) H:65 V:14

Front-to-back ratio(dB) ≥25

Input Impedance(Ω) 50

VSWR ≤1.5

Isolation between ports ≥28dB

Cross-polar ratio ≥15dB@0º ≥10dB@+/-60º

Sidelobe suppression for first sidelobe above horizon 15 dB

Maximum input power(W) 200

Lightning protection DC Ground

Mechanical Specifications

Input connector type 2-N Female

Dimensions-mm (Height/Width/Depth) 405*140*28

Packing size(mm) 440*160*90

Antenna weight (kg) 0.52

Radome material ABS

Radome color White

Mechanical tilt(°) 0~10

Operating temperature(°c) -40~60

Rated Wind Velocity(m/s) 60

Mounting hardware(mm) Φ30~Φ50
