4.9-5.8 GHz WiFi Antenna
Factory price
All weather operation
Included Mounting bracket
Heavy-duty UV-Resistant Radome

Dual Polarized 4.9-5.8 GHz Antenna

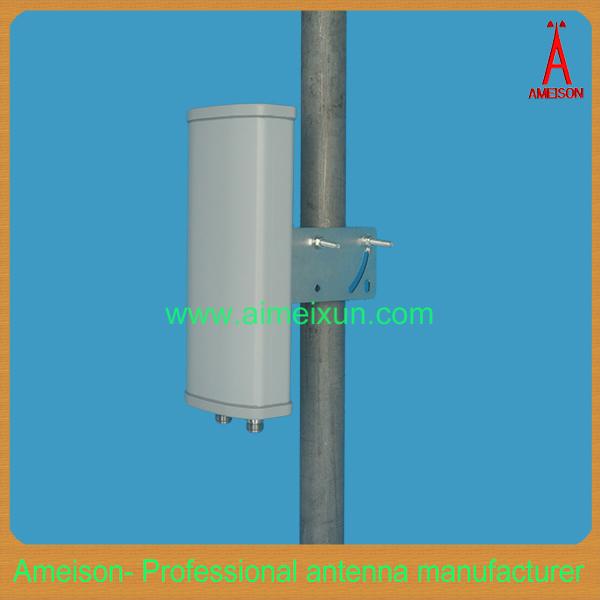

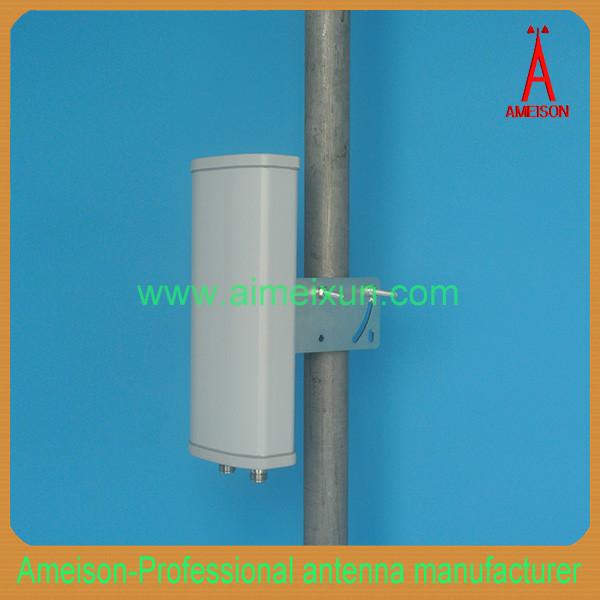

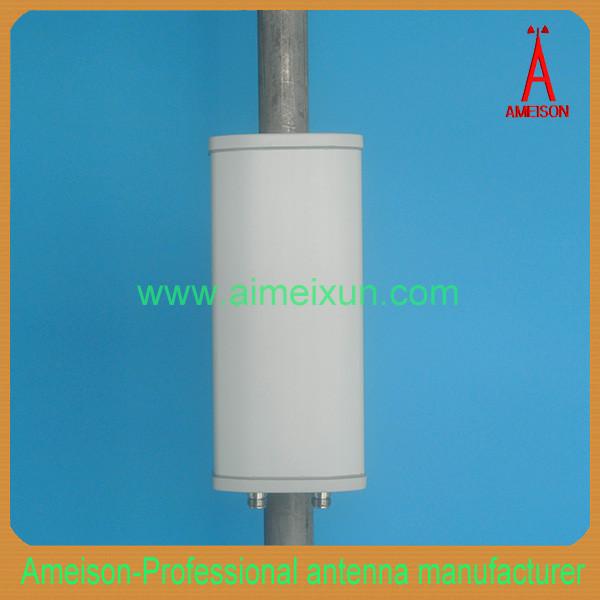

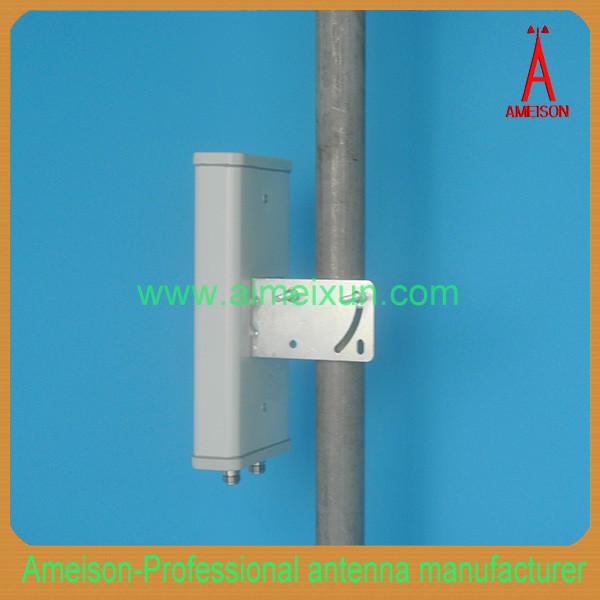

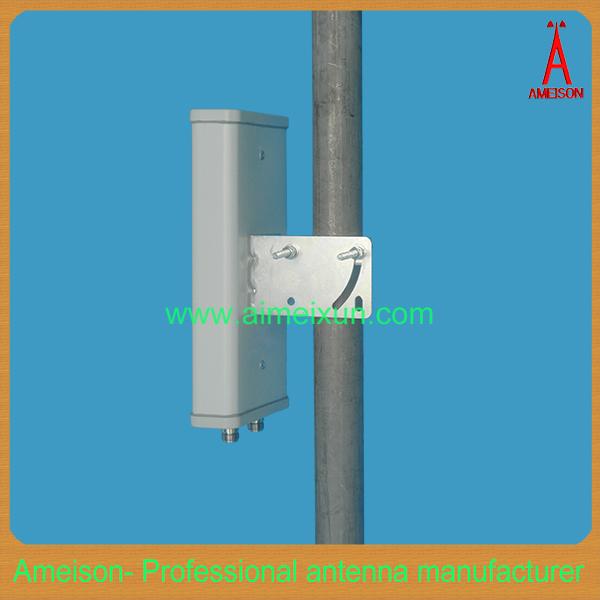

Model No.: AMXP-4958VH-D15L60

The AMXP-4958VH-D15L60 Flat Panel Antenna conbines ver tical antenna horizontal polaritzation with high

gain over multiple frequencies in a single enclosure. It is a professional quality antenna designed primarily for

MIMO point-to-multipoint and point-to-point applications in the 4.9 GHz and 5.8 GHz frequency bands.

This antenna incorporates advanced dual polarization technology that allows for the interoperability of two radios to

transmit and receive paths. This technology allows for the attenuation of unwanted signals from adjacent channels

and/or co-located equipment.

Rugged and Weatherproof
This aesthetically pleasing antenna features a heavy-duty UV-resistant plastic radome ideal for all-weather indoor

and outdoor operation. The AMXP-4958VH-D15L60 antenna is supplied with a tilt and swivel mast mount kit.

This allows quick installation at various degrees of up/down tilt for easy alignment.

Specifications

Frequency Range: 4900-5850 MHz

Gain: 2*15 dBi
VSWR: < 1.5: 1

Polarization: Vertical & Horizontal

Vertical Plane Half Power Beamwidth: 14°
Horizontal Plane Half Power Beamwidth: 60°
Front to Back Ratio:>25 dB
Impedance: 50 Ω
Connector: Integral 2-N Female Connector
Dimension(L/W/D): 220*122*25 mm

Racome material: ABS

Lightning Protection: DC Ground

Weight (Approx.) including mounting bracket: 1.0 KG
Mounting Bracket: U Type clamp with bracket suitable for 30-50 MM diameter pole

Features:

MIMO - Multiple-Input and Multiple-Output

Dual Polarity feed system in single enclosure

Two integral N-Type Female Connector

UV-resistant radome for all-weather operation
