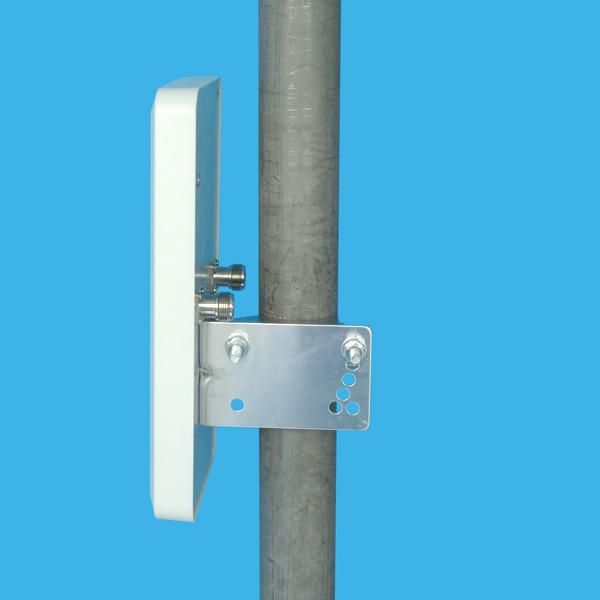

AMEISON 5.8GHz Dual Polarized 15dBi Directional Flat Panel Wireless WIFI WLAN Antenna
AMEISON 5.8GHz Dual Polarized 15dBi Directional Flat Panel Wireless WIFI WLAN Antenna
AMEISON 5.8GHz Dual Polarized 15dBi Directional Flat Panel Wireless WIFI WLAN Antenna
AMEISON 5.8GHz Dual Polarized 15dBi Directional Flat Panel Wireless WIFI WLAN Antenna
Specifications
Place of Origin :
China
Brand Name :
AMEISON
Model Number :
AMXW-5800VH-D15L60
Certification :
ISO 9001: 2008
Price :
EXW Price
Packaging Details :
PP bag /inner box/master carton or customized
Delivery Time :
10-20 working days
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
MOQ :
100
Frequency range(MHz) :
5725 - 5850
Polarization :
Vertical and Horizontal
Gain（dBi） :
2×15
Half-power beam width（°） :
H: 60 V: 14
Lightning protection :
DC Ground
Input connector type :
2-N Female
Description

AMEISON 5.8GHz Dual Polarized 15dBi Directional Flat Panel Wireless WIFI WLAN Antenna

Feature:

High gain

Full day working

Optimized dimension

Vertical or horizontal

Application

5.8 GHz WLAN system

5.8 GHz ISM frequency band

Public wireless hot spot coverage

AMXW-5800VH-D15L60

Electrical Specifications
Frequency range(MHz) 5725～5850
Polarization Vertical and Horizontal
Gain(dBi) 2×15
Half-power beam width(°) H: 60 V: 14
Front-to-back ratio(dB) ≥25
Input Impedance(Ω) 50
VSWR ≤1.5
Isolation between ports(dB) ≥28
Cross-polar ratio(dB) ≥15@0º ≥10@+/-60º
Sidelobe suppression for first sidelobe above horizon(dB) 15
Maximum input power(W) 100
Lightning protection DC Ground
Mechanical Specifications
Input connector type 2-N Female
Dimensions-mm (Height/Width/Depth) 220*122*25
Packing size(mm) 260*160*90
Antenna weight (kg) 0.37
Radome material ABS
Radome color White
Mechanical tilt(°) 0～10
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Mounting hardware(mm) ￠30～￠50
