Specifications
Brand Name :
AMEISON
Model Number :
AMXW-7027VS-8
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging) or others
Product name :
Directional Panel MIMO Antenna
Frequency :
698-2700mhz
Gain :
8dBi
VSWR :
≤1.5
Impedance :
50Ω
Polarization :
Vertical and +/-45°
connector type :
N female
Dimensions :
260*170*60mm
color :
White
Description

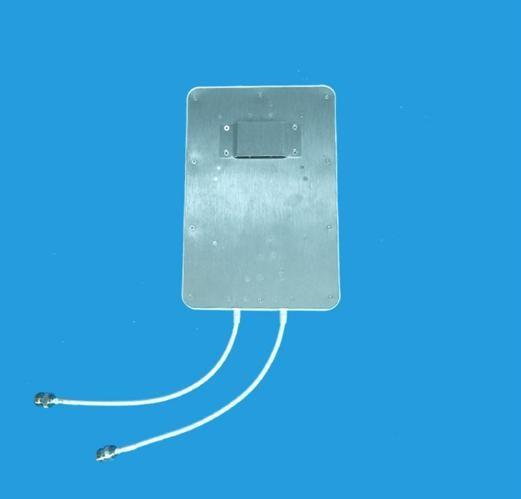

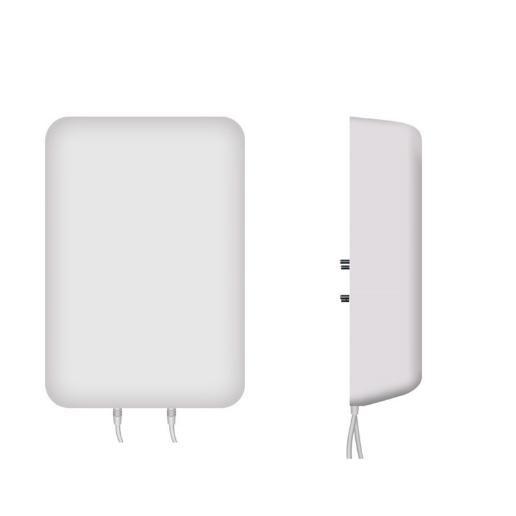

698-2700MHz 8dbi Indoor or outdoor 3g 4g lte Directional Panel MIMO Antenna

Feature:

Exquisite appearance

Suitable for ordinary ceiling mounting

Optimized dimension

Vertical and Horizontal

Application:

GSM/CDMA/PCS/3G/WLAN/4G/LTE system

AMXW-7027VS-8

Electrical Specifications

Interface Vertical +45° -45°
Frequency range(MHz) 698~960 1710~2690 1710~2690
Gain(dBi) 4 7 7.5
Half-power beam width(°) H:85 V:65 H:75 V:55
VSWR ≤1.8 ≤1.5 ≤1.5
Isolation between ports (dB) ≥25
Cross-polar ratio(dB) ≥15@0º ≥10@+/-60º
Input Impedance(Ω) 50
Polarization Vertical and Horizontal
Maximum input power(W) 50
Lightning protection DC Ground
Input connector type 2xN Female
Mechanical Specifications
Dimensions(mm) 260*170*60
Antenna weight(kg) 0.72
Operating temperature(°c) -40~60
Radome material ABS
Radome color white
Mounting way pole-holding
Mounting hardware(mm) ¢35~¢50
