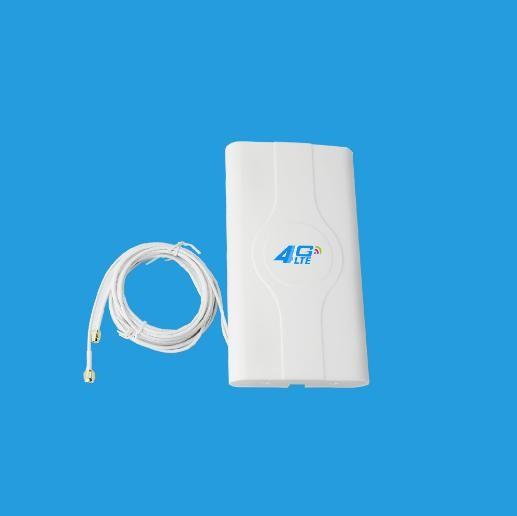

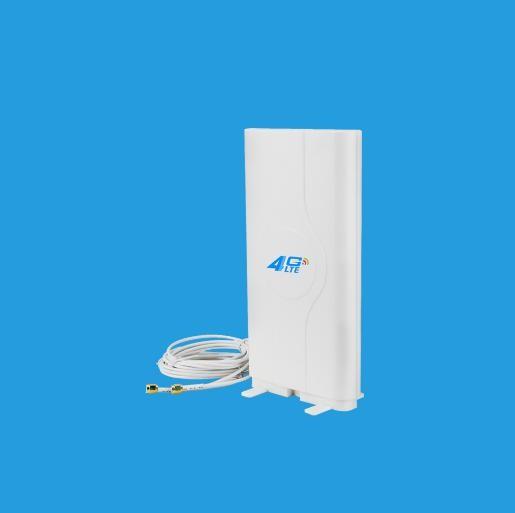

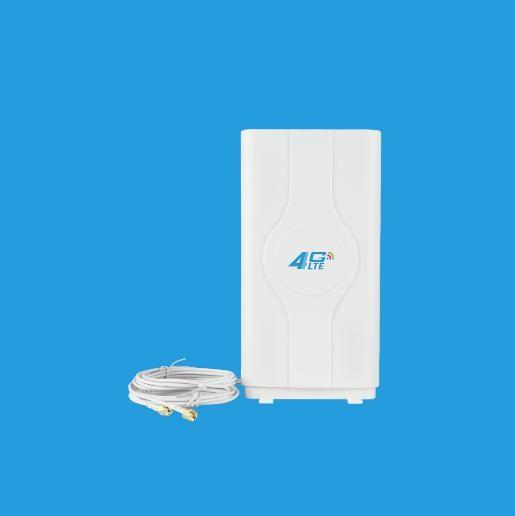

1710-2700MHz Directional 4G LTE MIMO Antenna with Two TS9/SMA/CRC9 Connectors for desktop or wall mounting
1710-2700MHz Directional 4G LTE MIMO Antenna with Two TS9/SMA/CRC9 Connectors for desktop or wall mounting
1710-2700MHz Directional 4G LTE MIMO Antenna with Two TS9/SMA/CRC9 Connectors for desktop or wall mounting
1710-2700MHz Directional 4G LTE MIMO Antenna with Two TS9/SMA/CRC9 Connectors for desktop or wall mounting
1710-2700MHz Directional 4G LTE MIMO Antenna with Two TS9/SMA/CRC9 Connectors for desktop or wall mounting
1710-2700MHz Directional 4G LTE MIMO Antenna with Two TS9/SMA/CRC9 Connectors for desktop or wall mounting
1710-2700MHz Directional 4G LTE MIMO Antenna with Two TS9/SMA/CRC9 Connectors for desktop or wall mounting
1710-2700MHz Directional 4G LTE MIMO Antenna with Two TS9/SMA/CRC9 Connectors for desktop or wall mounting
Specifications
Brand Name :
AMEISON
Model Number :
AMXW-1727VH-9B
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Product name :
Directional Panel MIMO Antenna
Frequency :
1710-2700mhz
Gain :
9dBi
VSWR :
≤1.5
Impedance :
50Ω
Polarization :
Vertical and Horizontal
connector type :
SMA male
Dimensions :
225*130*30mm
color :
White
Description

1710-2700MHz Directional 4G LTE MIMO Antenna with Two TS9/SMA/CRC9 Connectors for desktop or wall mounting

This dual connector antenna is a MIMO 4G LTE antenna designed to extend 4G LTE signal range indoors or network areas for your 4G LTE modem and routers devices which have two SMA/TS9/CRC9 antenna ports. It will provide a reliable 4G connection for your devices,increase 4G signal strength and increase data transfer speed! For desktop or wall mounting.

Feature:

Exquisite appearance

Suitable for ordinary ceiling mounting

Optimized dimension

Vertical and Horizontal

Application:

DCS,PCS,3G,LTE,WIFI system

Wireless communication and data transmission system

1710-2700MHz Directional 4G LTE MIMO Antenna with Two TS9/SMA/CRC9 Connectors for desktop or wall mounting

AMXW-1727VH-9B

Electrical Specifications
Frequency range(MHz) 1710～2690
Polarization Vertical and Horizonta
Gain(dBi) 2×9
Half-power beam width(°) H:65 V:65
Front-to-back ratio(dB) ≥25
Input Impedance(Ω) 50
VSWR ≤1.5
Isolation between ports ≥28dB
Maximum input power(W) 200
Lightning protection DC Ground
Mechanical Specifications
Input connector type 2-SMA Male
Dimensions-mm (Height/Width/Depth) 225*130*30
Antenna weight (kg) 0.35
Radome material ABS
Radome color White
Operating temperature(°c) -40～60
