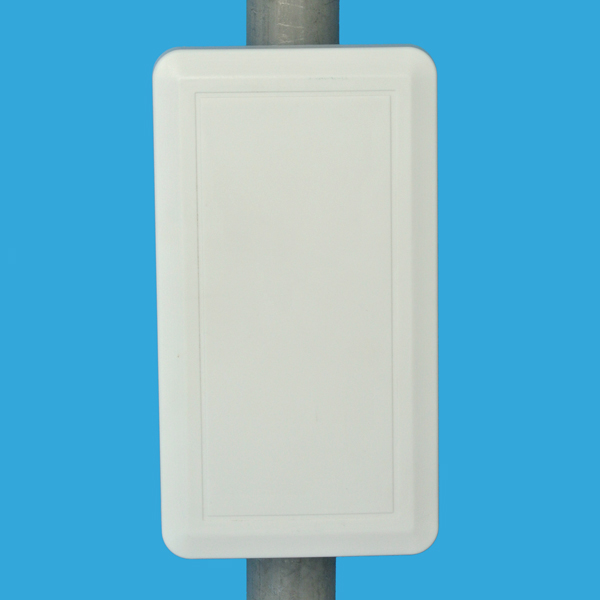

AMEISON manufacturer 2.4GHz Directional Panel MIMO Antenna 12dbi Outdoor N female for 2.4 GHz WLAN ISM
AMEISON manufacturer 2.4GHz Directional Panel MIMO Antenna 12dbi Outdoor N female for 2.4 GHz WLAN ISM
AMEISON manufacturer 2.4GHz Directional Panel MIMO Antenna 12dbi Outdoor N female for 2.4 GHz WLAN ISM
AMEISON manufacturer 2.4GHz Directional Panel MIMO Antenna 12dbi Outdoor N female for 2.4 GHz WLAN ISM
AMEISON manufacturer 2.4GHz Directional Panel MIMO Antenna 12dbi Outdoor N female for 2.4 GHz WLAN ISM
AMEISON manufacturer 2.4GHz Directional Panel MIMO Antenna 12dbi Outdoor N female for 2.4 GHz WLAN ISM
AMEISON manufacturer 2.4GHz Directional Panel MIMO Antenna 12dbi Outdoor N female for 2.4 GHz WLAN ISM
AMEISON manufacturer 2.4GHz Directional Panel MIMO Antenna 12dbi Outdoor N female for 2.4 GHz WLAN ISM
Specifications
Brand Name :
AMEISON
Model Number :
AMXW-2400VH-D12L60
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Product name :
Directional Panel MIMO Antenna
Frequency :
2400～2500mhz
Gain :
12dBi
VSWR :
≤1.5
Impedance :
50Ω
Polarization :
Vertical and Horizontal
connector type :
N female
Dimensions :
220*122*25mm
color :
White
Description

AMEISON manufacturer 2.4GHz Directional Panel MIMO Antenna 12dbi Outdoor N female for 2.4 GHz WLAN ISM

Feature:

High gain

Full day working

Optimized dimension

Vertical or horizontal

Application

2.4 GHz WLAN system

2.4 GHz ISM frequency band

Public wireless hot spot coverage

AMEISON manufacturer 2.4GHz Directional Panel MIMO Antenna 12dbi Outdoor N female for 2.4 GHz WLAN ISM

AMXW-2400VH-D12L60

Electrical Specifications
Frequency range(MHz) 2400～2500
Polarization Vertical and Horizontal
Gain(dBi) 2×12
Half-power beam width(°) H: 60 V: 30
Front-to-back ratio(dB) ≥25
Input Impedance(Ω) 50
VSWR ≤1.5
Maximum input power(W) 100
Lightning protection DC Ground
Mechanical Specifications
Input connector type 2-N Female
Dimensions-mm (Height/Width/Depth) 220*122*25
Packing size(mm) 260*160*90
Antenna weight (kg) 0.37
Radome material ABS
Radome color White
Mechanical tilt(°) 0～10
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Mounting hardware(mm) ￠30～￠50
