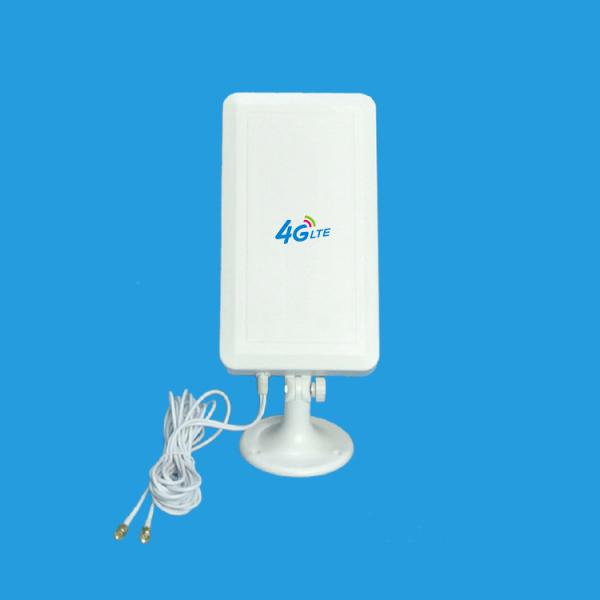

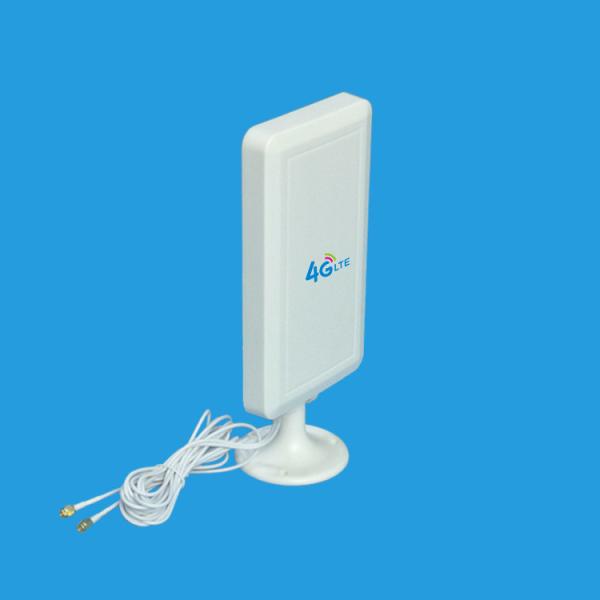

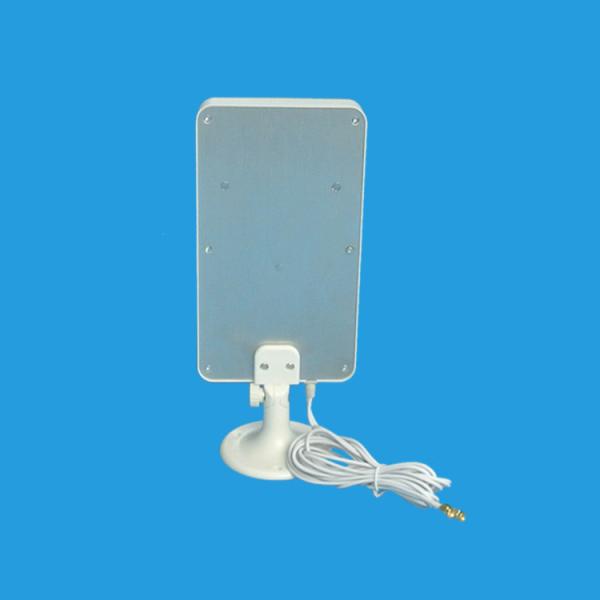

AMEISON 1700 - 2700 MHz Indoor Directional MIMO Panel 4G LTE Antenna
AMEISON 1700 - 2700 MHz Indoor Directional MIMO Panel 4G LTE Antenna
AMEISON 1700 - 2700 MHz Indoor Directional MIMO Panel 4G LTE Antenna
AMEISON 1700 - 2700 MHz Indoor Directional MIMO Panel 4G LTE Antenna
AMEISON 1700 - 2700 MHz Indoor Directional MIMO Panel 4G LTE Antenna
AMEISON 1700 - 2700 MHz Indoor Directional MIMO Panel 4G LTE Antenna
AMEISON 1700 - 2700 MHz Indoor Directional MIMO Panel 4G LTE Antenna
AMEISON 1700 - 2700 MHz Indoor Directional MIMO Panel 4G LTE Antenna
Specifications
Brand Name :
AMEISON
Model Number :
AMXW-1727VH-9C
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Product Name :
MIMO Patch Panel Antenna
Frequency range（MHz） :
1700～2700
Polarization :
Vertical and Horizontal
Gain（dBi） :
9
V.S.W.R. :
≤1.5
Input connector type :
2-SMA Female
Dimensions-mm (Height/Width/Depth) :
220*122*25
Description

AMEISON 1700 - 2700 MHz Indoor Directional MIMO Panel 4G LTE Antenna

Feature:

High gain

Full day working

Optimized dimension

Dual polarization

Application:

DCS,PCS,3G,4G,LTE,WIFI system

Wireless communication and data transmission system

AMXW-1727VH-9C

Electrical Specifications
Frequency range(MHz) 1710～2690
Polarization Vertical and Horizonta
Gain(dBi) 2×9
Half-power beam width(°) H:65 V:65
Front-to-back ratio(dB) ≥25
Input Impedance(Ω) 50
VSWR ≤1.5
Isolation between ports ≥28dB
Maximum input power(W) 200
Lightning protection DC Ground
Mechanical Specifications
Input connector type 2-SMA Male
Dimensions-mm (Height/Width/Depth) 220*122*25
Antenna weight (kg) 0.45
Radome material ABS
Radome color White
Operating temperature(°c) -40～60
