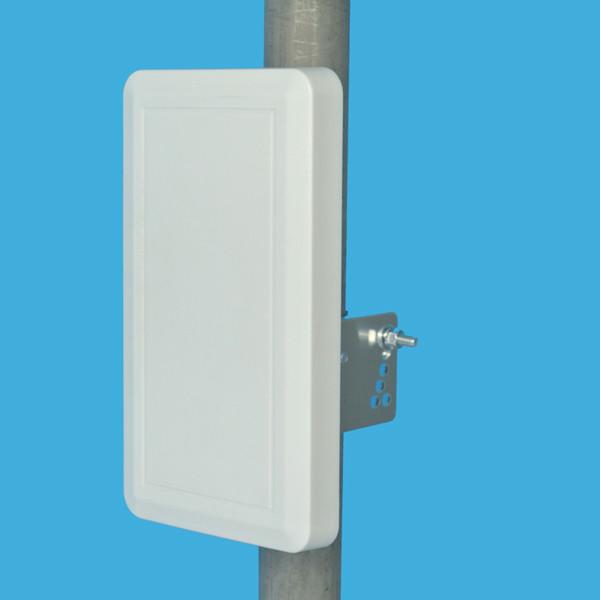

AMEISON 2400-2500MHz Directional WIFI Flat Patch Panel MIMO Antenna with 2*N female
AMEISON 2400-2500MHz Directional WIFI Flat Patch Panel MIMO Antenna with 2*N female
Specifications
Brand Name :
AMEISON
Model Number :
AMXW-2425VH-D12L60
Certification :
ISO 9001:2008
Place of Origin :
China
MOQ :
100 units
Price :
EXW Price
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
5-20 work days
Packaging Details :
PP bag /inner box/master carton or customized
Frequency range（MHz） :
2400～2500
Polarization :
Vertical and Horizontal
Gain（dBi） :
12
Half-power beam width（°） :
H: 60 V: 30
Front-to-back ratio（dB） :
≥25
Input Impedance（Ω） :
50
Input connector type :
2-N Female
Dimensions-mm (Height/Width/Depth) :
220*122*25
Description

AMEISON 2400-2500MHz Directional WIFI Flat Patch Panel MIMO Antenna with 2*N female

Feature:

High gain

Full day working

Optimized dimension

Vertical and horizontal

Application:

2.4 GHz WLAN system

2.4 GHz ISM band

Public wireless hot spot coverage

Wi-Fi system

AMXW-2425VH-D12L60

Electrical Specifications
Frequency range(MHz) 2400～2500
Polarization Vertical and Horizontal
Gain(dBi) 12
Half-power beam width(°) H: 60 V: 30
Front-to-back ratio(dB) ≥25
Input Impedance(Ω) 50
VSWR ≤1.5
Isolation between ports(dB) ≥28
Cross-polar ratio(dB) ≥15@0º ≥10@+/-60º
Sidelobe suppression for first sidelobe above horizon(dB) 15
Maximum input power(W) 100
Lightning protection DC Ground
Mechanical Specifications
Input connector type 2-N Female
Dimensions-mm (Height/Width/Depth) 220*122*25
Packing size(mm) 260*160*90
Antenna weight(kg) 0.37
Radome material ABS
Radome color White
Mechanical tilt(°) 0～10
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Waterproof Standard IP54/ IP65/ IP67
Mounting way Pole-holding
Mounting hardware(mm) ￠30～￠50
