AMEISON manufacturer 698-2700MHz Omni antenna 5dbi supports LTE / 4G Full band Omni directional antenna
AMEISON manufacturer 698-2700MHz Omni antenna 5dbi supports LTE / 4G Full band Omni directional antenna
AMEISON manufacturer 698-2700MHz Omni antenna 5dbi supports LTE / 4G Full band Omni directional antenna
AMEISON manufacturer 698-2700MHz Omni antenna 5dbi supports LTE / 4G Full band Omni directional antenna
AMEISON manufacturer 698-2700MHz Omni antenna 5dbi supports LTE / 4G Full band Omni directional antenna
AMEISON manufacturer 698-2700MHz Omni antenna 5dbi supports LTE / 4G Full band Omni directional antenna
AMEISON manufacturer 698-2700MHz Omni antenna 5dbi supports LTE / 4G Full band Omni directional antenna
AMEISON manufacturer 698-2700MHz Omni antenna 5dbi supports LTE / 4G Full band Omni directional antenna
AMEISON manufacturer 698-2700MHz Omni antenna 5dbi supports LTE / 4G Full band Omni directional antenna
AMEISON manufacturer 698-2700MHz Omni antenna 5dbi supports LTE / 4G Full band Omni directional antenna
Specifications
Brand Name :
AMEISON
Model Number :
AMXF-7027-5
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Product name :
Omnidirectional Antenna
Frequency :
698-960 / 1710-2700 mhz
Gain :
5dBi
VSWR :
≤1.5
Impedance :
50Ω
Polarization :
Vertical
connector type :
N Female
Dimensions :
Φ60*230
color :
Gray
Material :
ABS
Mounting way :
Pole-holding
Description

AMEISON manufacturer 698-2700MHz Omni antenna 5dbi supports LTE / 4G Full band Omni directional antenna

Feature :
Exquisite appearance
Good impact resistance,waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain,low standing wave,strong anti-interference ability


Application :
CDMA/GSM/PCS/3G/4G/LTE/WLAN system
Point-to-multipoint system

AMEISON manufacturer 698-2700MHz Omni antenna 5dbi supports LTE / 4G Full band Omni directional antenna


698-2700MHz Omnidirectional Antenna

AMXF-7027-5

Electrical Specifications
Frequency range(MHz) 698-960 / 1710-2700
Bandwidth(MHz) 262 / 790
Gain(dBi) 3 / 5
Half-power beam width(°) H:360 V:55
VSWR ≤2.0
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Cable length (cm) 30
Input connector type SMA Male or Requested
Mechanical Specifications
Dimensions (mm) Φ60*230
Antenna weight(kg) 0.6
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome color Gray
Mounting way Pole-holding
Mounting hardware(mm) ￠35-￠50

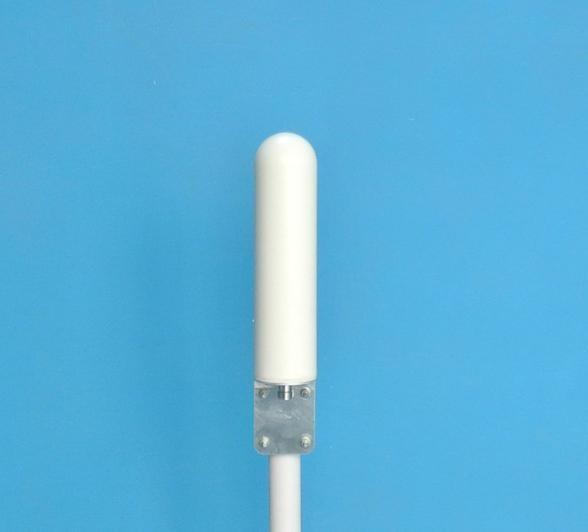

Install as the picture below

AMEISON manufacturer 698-2700MHz Omni antenna 5dbi supports LTE / 4G Full band Omni directional antenna
