AMEISON manufacturer 2.4G High Gain Omnidirectional Fiberglass Antenna 15dbi wifi wlan outdoor waterproof
AMEISON manufacturer 2.4G High Gain Omnidirectional Fiberglass Antenna 15dbi wifi wlan outdoor waterproof
AMEISON manufacturer 2.4G High Gain Omnidirectional Fiberglass Antenna 15dbi wifi wlan outdoor waterproof
AMEISON manufacturer 2.4G High Gain Omnidirectional Fiberglass Antenna 15dbi wifi wlan outdoor waterproof
Specifications
Brand Name :
AMEISON
Model Number :
AMXF-2400-15
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Product name :
Omnidirectional Antenna
Frequency :
2400～2483 mhz
Gain :
15dBi
VSWR :
≤1.5
Impedance :
50Ω
Polarization :
Vertical
connector type :
N Female
Dimensions :
Φ20*1500
color :
Gray
Material :
Fiberglass
Mounting way :
Pole-holding
Description

AMEISON manufacturer 2.4G High Gain Omnidirectional Fiberglass Antenna 15dbi wifi wlan outdoor waterproof

Feature :
Exquisite appearance
Good impact resistance,waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain,low standing wave,strong anti-interference ability


Application :
2.4G/WIFI/WLAN system
Point-to-multipoint system

AMEISON manufacturer 2.4G High Gain Omnidirectional Fiberglass Antenna 15dbi wifi wlan outdoor waterproof

2400-2483MHz Fiberglass Omnidirectional Antenna

AMXF-2400-15

Electrical Specifications
Frequency range(MHz) 2400～2483
Bandwidth (MHz) 83
Gain (dBi) 15
Half-power beam width(°) H:360 V:5
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type N Female or Requested
Mechanical Specifications
Dimensions (mm) Φ20*1500
Antenna weight(kg) 0.63
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome color Gray
Mounting way Pole-holding
Mounting hardware(mm) ￠35-￠50

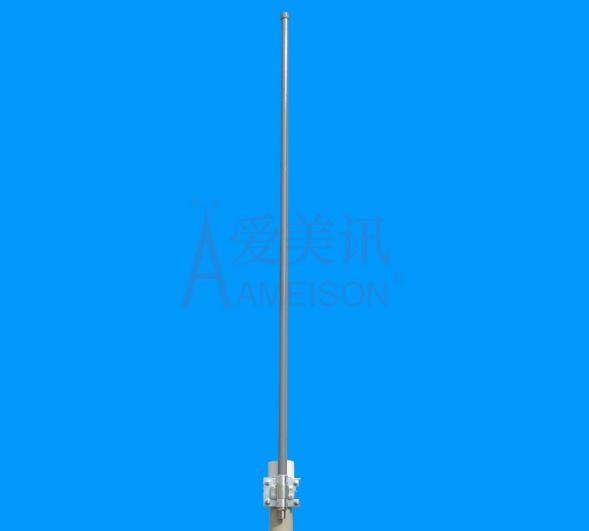

Install as the picture below

AMEISON manufacturer 2.4G High Gain Omnidirectional Fiberglass Antenna 15dbi wifi wlan outdoor waterproof
