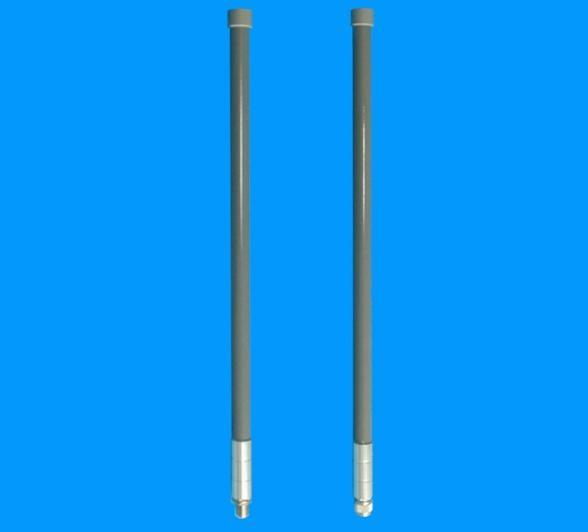

AMEISON manufacturer 1090MHz omnidirectional fiberglass antenna high gain 4dbi antenna for ADS-B system
AMEISON manufacturer 1090MHz omnidirectional fiberglass antenna high gain 4dbi antenna for ADS-B system
AMEISON manufacturer 1090MHz omnidirectional fiberglass antenna high gain 4dbi antenna for ADS-B system
AMEISON manufacturer 1090MHz omnidirectional fiberglass antenna high gain 4dbi antenna for ADS-B system
AMEISON manufacturer 1090MHz omnidirectional fiberglass antenna high gain 4dbi antenna for ADS-B system
AMEISON manufacturer 1090MHz omnidirectional fiberglass antenna high gain 4dbi antenna for ADS-B system
AMEISON manufacturer 1090MHz omnidirectional fiberglass antenna high gain 4dbi antenna for ADS-B system
AMEISON manufacturer 1090MHz omnidirectional fiberglass antenna high gain 4dbi antenna for ADS-B system
Specifications
Brand Name :
AMEISON
Model Number :
AMXF-1090-4
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Product name :
Omnidirectional Antenna
Frequency :
1090±5 mhz
Gain :
4dBi
VSWR :
≤1.5
Impedance :
50Ω
Polarization :
Vertical
connector type :
N Female
Dimensions :
Φ20*550
color :
Gray
Material :
Fiberglass
Mounting way :
Pole-holding
Description

AMEISON manufacturer 1090MHz omnidirectional fiberglass antenna high gain 4dbi antenna for ADS-B system

Feature :
Exquisite appearance
Good impact resistance,waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain,low standing wave,strong anti-interference ability


Application :
1090MHz system
Point-to-multipoint system

AMEISON manufacturer 1090MHz omnidirectional fiberglass antenna high gain 4dbi antenna for ADS-B system

AMXF-1090-4

Electrical Specifications
Frequency range(MHz) 1090±5
Bandwidth(MHz) 10
Gain(dBi) 4
Half-power beam width(°) H:360 V:60
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type N Female
Mechanical Specifications
Dimensions (mm) Φ20*550
Antenna weight(kg) 0.3
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome color Gray
Mounting way Pole-holding
Mounting hardware(mm) ￠35-￠50

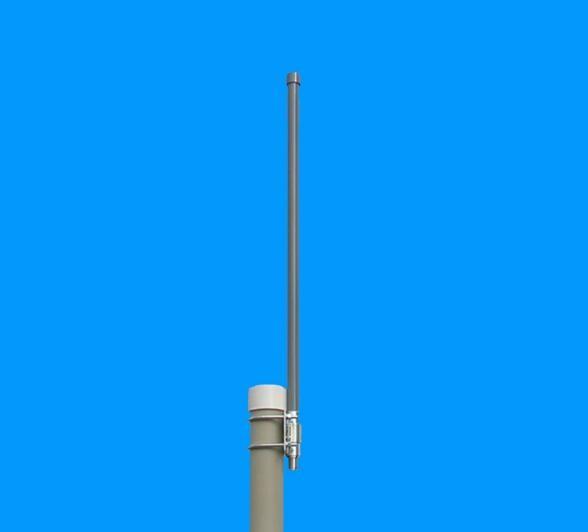

Install as the picture below

AMEISON manufacturer 1090MHz omnidirectional fiberglass antenna high gain 4dbi antenna for ADS-B system

Installation Steps

1.Place the M6 U-shape screw through the holes on the clamps to mount the antenna to the pole whose outer diameter is ￠35～￠50mm.Then put on the flat washer,the spring washer and twist all the nuts.

2. There should be at least three meters between the ground or floor and the antenna above.No huge building or metal object or any other obstacle or shelter nearby.

3. Adjust the mounting height of the antenna to the proper position to receive the best signal,then seal all the connections.

4. Please pay attention to lightning protection.
