AMEISON 2.4Ghz 12dBi Omni directional Antenna High gain Outdoor Fiberglass WIFI Antenna
AMEISON 2.4Ghz 12dBi Omni directional Antenna High gain Outdoor Fiberglass WIFI Antenna
AMEISON 2.4Ghz 12dBi Omni directional Antenna High gain Outdoor Fiberglass WIFI Antenna
AMEISON 2.4Ghz 12dBi Omni directional Antenna High gain Outdoor Fiberglass WIFI Antenna
Specifications
Brand Name :
AMEISON
Model Number :
AMXF-2400-12
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Product name :
Omnidirectional Antenna
Frequency :
2400～2483mhz
Gain :
12dBi
VSWR :
≤1.5
Impedance :
50Ω
Polarization :
Vertical
connector type :
N Female
Dimensions :
Φ20*1200 mm
color :
Gray
Material :
Fiberglass
Mounting way :
Pole-holding
Description

AMEISON 2.4Ghz 12dBi Omni directional Antenna High gain Outdoor Fiberglass WIFI Antenna

Feature:

Exquisite appearance

Good impact resistance,waterproofing and anticorrosion ability

Full day working

Optimized dimension

High gain,low standing wave,strong anti-interference ability

Application:

2.4G/Wifi/Wlan system

Point-to-multipoint system

AMXF-2400-12

Electrical Specifications
Frequency range(MHz) 2400～2483
Bandwidth(MHz) 83
Gain(dBi) 12
Half-power beam width(°) H:360 V:6
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type N Female or Requested
Mechanical Specifications
Dimensions(mm) Φ20*1200
Antenna weight(kg) 0.53
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome color Gray

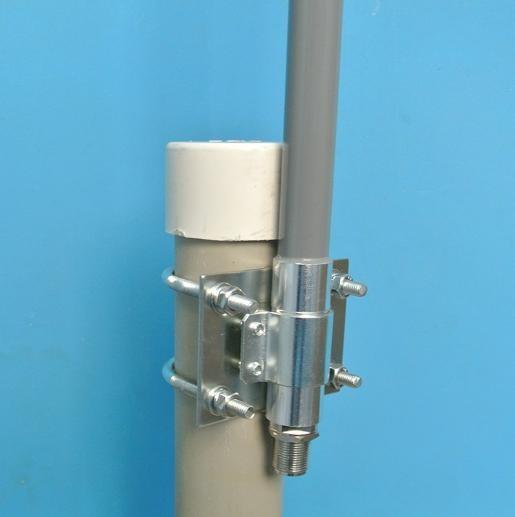

Mounting way Pole-holding
Mounting hardware(mm) ￠35-￠50
