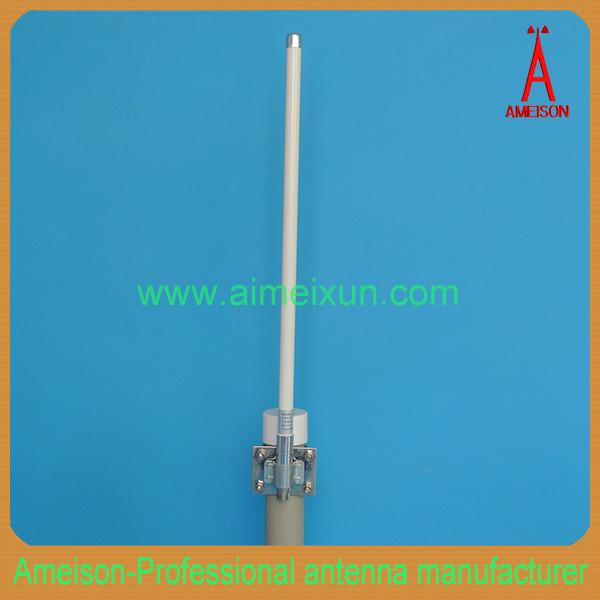

AMEISON 1070 - 1110 MHz 5dBi Omnidirectional Fiberglass Antenna for ADS-B 1090mhz receiver outdoor brodcast COMM GNSS
AMEISON 1070 - 1110 MHz 5dBi Omnidirectional Fiberglass Antenna for ADS-B 1090mhz receiver outdoor brodcast COMM GNSS
AMEISON 1070 - 1110 MHz 5dBi Omnidirectional Fiberglass Antenna for ADS-B 1090mhz receiver outdoor brodcast COMM GNSS
AMEISON 1070 - 1110 MHz 5dBi Omnidirectional Fiberglass Antenna for ADS-B 1090mhz receiver outdoor brodcast COMM GNSS
AMEISON 1070 - 1110 MHz 5dBi Omnidirectional Fiberglass Antenna for ADS-B 1090mhz receiver outdoor brodcast COMM GNSS
AMEISON 1070 - 1110 MHz 5dBi Omnidirectional Fiberglass Antenna for ADS-B 1090mhz receiver outdoor brodcast COMM GNSS
AMEISON 1070 - 1110 MHz 5dBi Omnidirectional Fiberglass Antenna for ADS-B 1090mhz receiver outdoor brodcast COMM GNSS
AMEISON 1070 - 1110 MHz 5dBi Omnidirectional Fiberglass Antenna for ADS-B 1090mhz receiver outdoor brodcast COMM GNSS
Specifications
Brand Name :
AMEISON
Model Number :
AMXF-1090-5
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Frequency range(MHz) :
1070-1110
Gain(dBi) :
5
VSWR :
≤1.5
connector :
N Female or Requested
Description

AMEISON 1070 - 1110 MHz 5dBi Omnidirectional Fiberglass Antenna for ADS-B 1090mhz receiver outdoor brodcast COMM GNSS

Feature:

Exquisite appearance

Good impact resistance, waterproofing and anticorrosion ability

Full day working

Optimized dimension

High gain, low standing wave, strong anti-interference ability

Application:

1070-1110 MHz system

ADS-B system

Wireless communication and data transmission system

AMEISON 1070 - 1110 MHz 5dBi Omnidirectional Fiberglass Antenna for ADS-B 1090mhz receiver outdoor brodcast COMM GNSS

AMXF-1090-5

Electrical Specifications
Frequency range(MHz) 1070-1110
Bandwidth(MHz) 40
Gain(dBi) 5
Half-power beam width(°) H:360 V:20
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type N Female or Requested
Mechanical Specifications
Dimensions (mm) Φ20*660
Antenna weight(kg) 0.46
Operating temperature(°c) -40~60
Rated Wind Velocity(m/s) 60
Radome color Gray or White or others
Radome Material Fiberglass

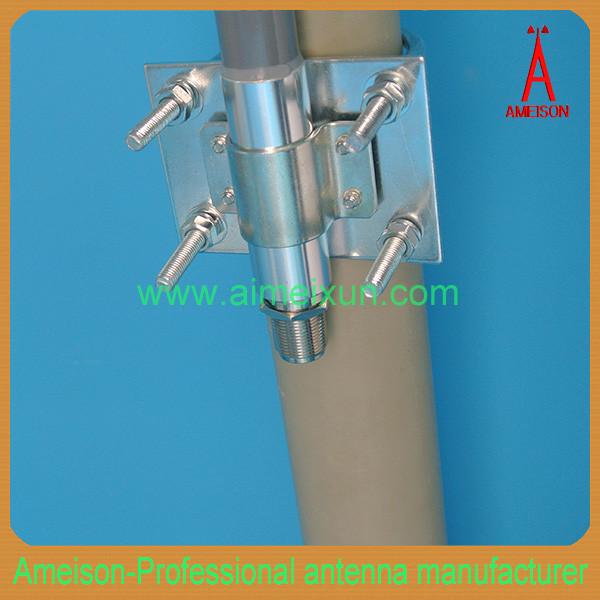

Mounting way Wall/ Pole-holding
Waterproof Standard IP65/ IP67
Mounting hardware(mm) 35 - 50

We are much pleased to know you are interested in our products and will contact us for quotation and specification.

There have more than 600 models antennas in our factory, In order to save your time and offer the optimum models (reasonable prices) and get our quick response, following is some important information we have to know to quote in 24 hours.

Warm Reminded:

If you are interested in Antennas,please advise us:

1. Frequency range(if has center frequency point, that can be best.)

2. Gain request

3. Connector type at another end of cable

4. Cable type(if available) + Cable length(if available)

5. Indoor Installation Mount type Or Outdoor Type

6. Quantity per model(More quantity, price can be concessible.)
