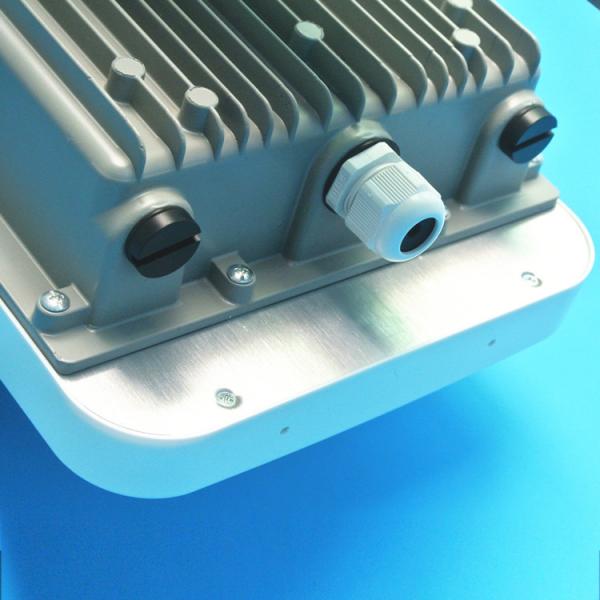

Ameison WIFI 5.8G dual polarized MIMO sector panel antenna 15dBi Directional with Enclosure
Ameison WIFI 5.8G dual polarized MIMO sector panel antenna 15dBi Directional with Enclosure
Ameison WIFI 5.8G dual polarized MIMO sector panel antenna 15dBi Directional with Enclosure
Ameison WIFI 5.8G dual polarized MIMO sector panel antenna 15dBi Directional with Enclosure
Ameison WIFI 5.8G dual polarized MIMO sector panel antenna 15dBi Directional with Enclosure
Ameison WIFI 5.8G dual polarized MIMO sector panel antenna 15dBi Directional with Enclosure
Specifications
Brand Name :
AMEISON
Model Number :
AMXW-5158VH-D15L60Q
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Frequency range（MHz） :
5150～5850
Polarization :
Vertical and Horizontal
Gain（dBi） :
15
Lightning protection :
DC Ground
Description

Ameison WIFI 5.8G dual polarized MIMO sector panel antenna 15dBi Directional with Enclosure

Feature:

High gain

Full day working

Optimized dimension

Vertical or horizontal

Application

5.8 GHz WLAN system

5.8 GHz ISM band

Public wireless hot spot coverage

Wi-Fi system

Ameison WIFI 5.8G dual polarized MIMO sector panel antenna 15dBi Directional with Enclosure

Antenna Specifications

Electrical Specifications
Frequency range(MHz) 5150～5850
Polarization Vertical and Horizontal
Gain(dBi) 15
Half-power beam width(°) H:60 V:14
Front-to-back ratio(dB) ≥25
Input Impedance(Ω) 50
VSWR ≤1.8
Isolation between ports(dB) ≥25
Cross-polar ratio(dB) ≥15@0º ≥10@+/-60º
Sidelobe suppression for first sidelobe above horizon(dB) 15
Maximum input power(W) 100
Lightning protection DC Ground
Mechanical Specifications
Cavity internal dimension(mm) 271*171*47
Dimensions-mm (Height/Width/Depth) 410*207*36
Antenna weight (kg) 0.52
Radome material ABS
Radome color White
Mechanical tilt(°) 0～10
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Mounting hardware(mm) ￠30～￠50
