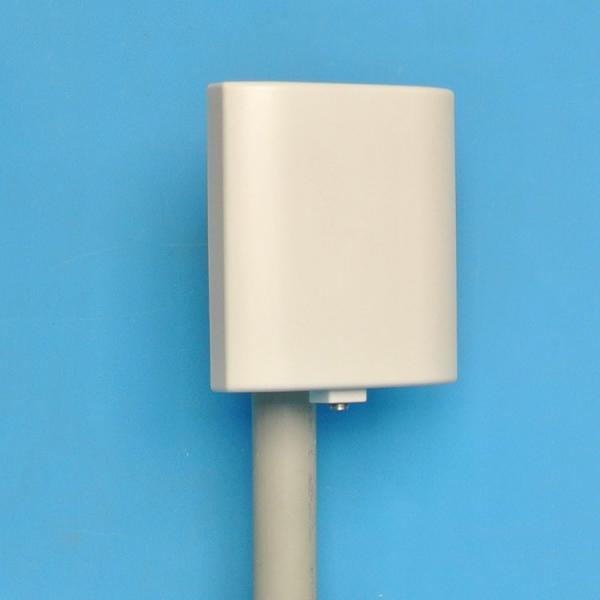

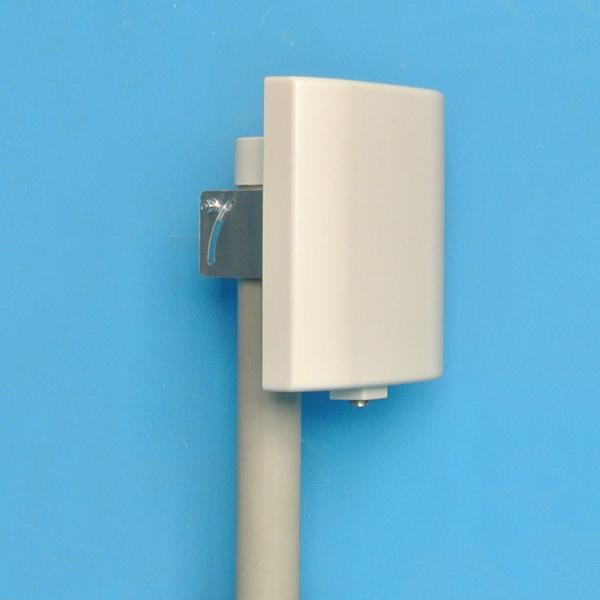

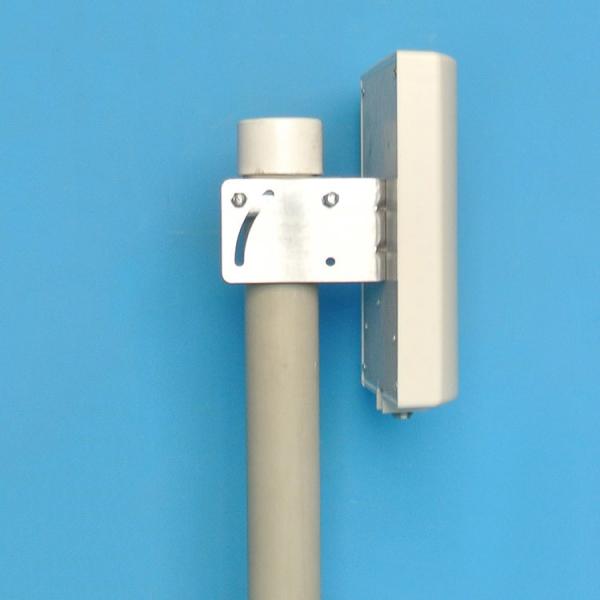

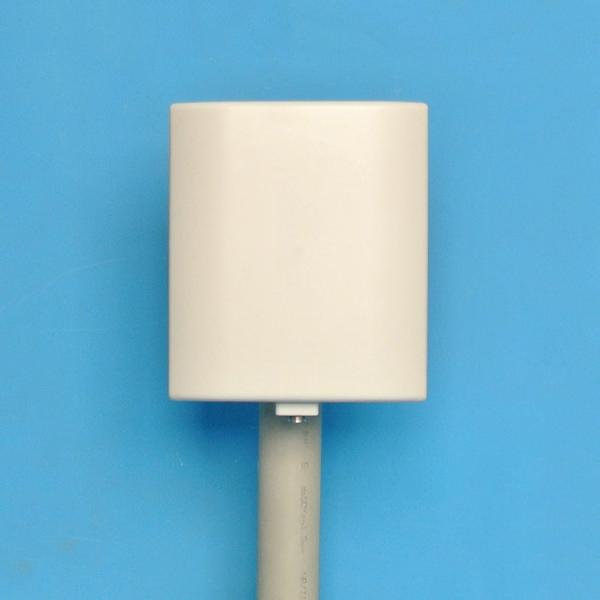

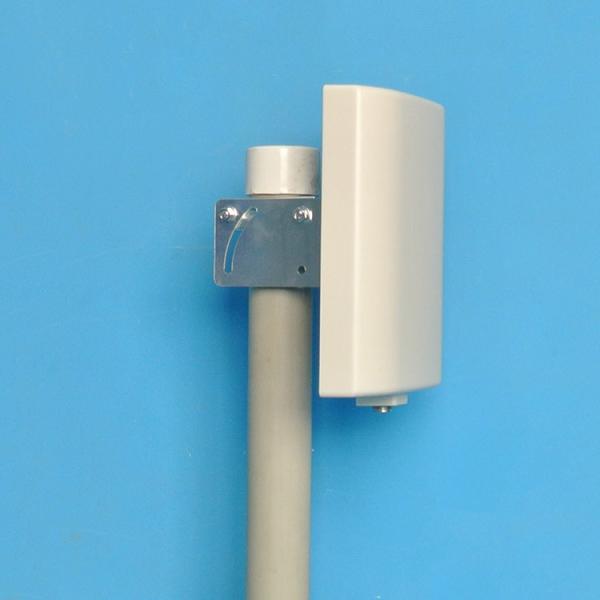

AMEISON 450-470MHz 6dBi Directional Panel Antenna with N female connector
AMEISON 450-470MHz 6dBi Directional Panel Antenna with N female connector
AMEISON 450-470MHz 6dBi Directional Panel Antenna with N female connector
AMEISON 450-470MHz 6dBi Directional Panel Antenna with N female connector
AMEISON 450-470MHz 6dBi Directional Panel Antenna with N female connector
AMEISON 450-470MHz 6dBi Directional Panel Antenna with N female connector
AMEISON 450-470MHz 6dBi Directional Panel Antenna with N female connector
AMEISON 450-470MHz 6dBi Directional Panel Antenna with N female connector
AMEISON 450-470MHz 6dBi Directional Panel Antenna with N female connector
AMEISON 450-470MHz 6dBi Directional Panel Antenna with N female connector
Specifications
Brand Name :
AMEISON
Model Number :
AMXW-450-6
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
500
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Frequency range（MHz） :
450-470
Bandwidth（MHz） :
20
Gain（dBi） :
6
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Female or Requested
Mounting hardware（mm） :
￠35-￠50
Name :
450mhz directional panel antenna
Description

AMEISON 450-470MHz 6dBi Directional Panel Antenna


Feature:
High gain,strong anti-interference ability
Good defense system
Full day working
Exquisite appearance
Optimized dimension

Application:
450-470 band communication system

AMEISON 450-470MHz 6dBi Directional Panel Antenna with N female connector

AMXW-450-6

Electrical Specifications

Frequency range(MHz)

450-470

Bandwidth(MHz)

20

Gain(dBi)

6

Half-power beam width(°)

H:70 V:65

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

100

Lightning protection

DC Ground

Input connector type

N Female or Requested

Mechanical Specifications

Dimensions-mm (Height/Width/Depth)

225*195*47

Antenna weight(kg)

0.6

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome material

ABS

Radome color

white

Mounting hardware(mm)

￠35-￠50



























We are much pleased to know you are interested in our products and will contact us for quotation and specification.

There have more than 600 models antennas in our factory, In order to save your time and offer the optimum models (reasonable prices) and get our quick response, following is some important information we have to know to quote in 24 hours.

Warm Reminded:
If you are interested in Antennas,please advise us:
1. Frequency range(if has center frequency point, that can be best.)
2. Gain request
3. Connector type at another end of cable
4. Cable type(if available) + Cable length(if available)
5. Indoor Installation Mount type Or Outdoor Type
6. Quantity per model(More quantity, price can be concessible.)
