AMEISON 698-2700MHz Omnidirectional Fiberglass Antenna High gain CDMA GSM PCS 3G WLAN antenna
AMEISON 698-2700MHz Omnidirectional Fiberglass Antenna High gain CDMA GSM PCS 3G WLAN antenna
AMEISON 698-2700MHz Omnidirectional Fiberglass Antenna High gain CDMA GSM PCS 3G WLAN antenna
AMEISON 698-2700MHz Omnidirectional Fiberglass Antenna High gain CDMA GSM PCS 3G WLAN antenna
AMEISON 698-2700MHz Omnidirectional Fiberglass Antenna High gain CDMA GSM PCS 3G WLAN antenna
AMEISON 698-2700MHz Omnidirectional Fiberglass Antenna High gain CDMA GSM PCS 3G WLAN antenna
AMEISON 698-2700MHz Omnidirectional Fiberglass Antenna High gain CDMA GSM PCS 3G WLAN antenna
AMEISON 698-2700MHz Omnidirectional Fiberglass Antenna High gain CDMA GSM PCS 3G WLAN antenna
AMEISON 698-2700MHz Omnidirectional Fiberglass Antenna High gain CDMA GSM PCS 3G WLAN antenna
AMEISON 698-2700MHz Omnidirectional Fiberglass Antenna High gain CDMA GSM PCS 3G WLAN antenna
Specifications
Brand Name :
AMEISON
Model Number :
AMXF-7027-5
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Frequency range（MHz） :
698-960 / 1710-2700
Bandwidth（MHz） :
262 / 990
Gain（dBi） :
3 / 5
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
SMA Male or Requested
Mounting way :
Pole-holding
Description

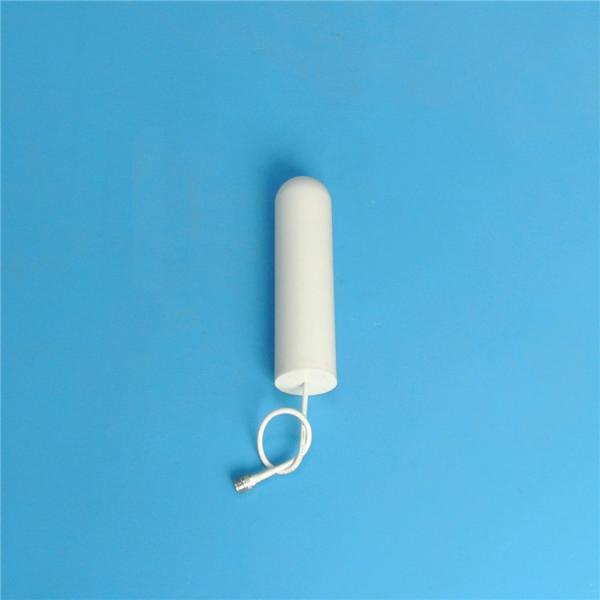

698-2700MHz Omnidirectional Fiberglass Antenna CDMA GSM PCS 3G WLAN antenna

AMXF-7027-5

Feature:

Exquisite appearance

Good impact resistance, waterproofing and anticorrosion ability

Full day working

Optimized dimension

Low standing wave, strong anti-interference ability

Application:

CDMA/GSM/PCS/3G/WLAN system

Point-to-multipoint system

AMXF-7027-5

Electrical Specifications

Frequency range(MHz)

698-960 / 1710-2700

Bandwidth(MHz)

262 / 990

Gain(dBi)

3 / 5

Half-power beam width(°)

H:360 V:55

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

100

Lightning protection

DC Ground

Input connector type

SMA Male or Requested

Mechanical Specifications

Dimensions (mm)

Φ60*230

Antenna weight(kg)

0.6

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome color

Gray

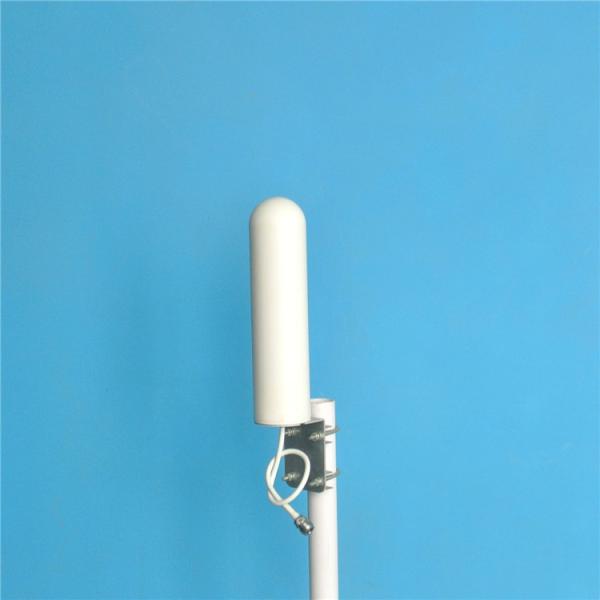

Mounting way

Pole-holding

Mounting hardware(mm)

￠35-￠50
