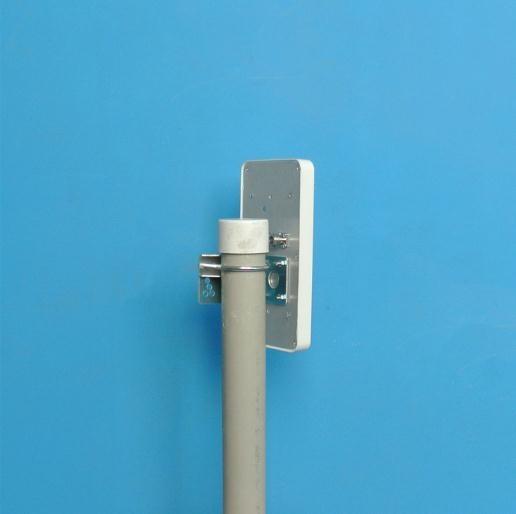

2500 - 2700 MHz Outdoor/ Indoor Directional MIMO Patch Panel Antenna for wireless hot spot coverage
2500 - 2700 MHz Outdoor/ Indoor Directional MIMO Patch Panel Antenna for wireless hot spot coverage
2500 - 2700 MHz Outdoor/ Indoor Directional MIMO Patch Panel Antenna for wireless hot spot coverage
2500 - 2700 MHz Outdoor/ Indoor Directional MIMO Patch Panel Antenna for wireless hot spot coverage
2500 - 2700 MHz Outdoor/ Indoor Directional MIMO Patch Panel Antenna for wireless hot spot coverage
2500 - 2700 MHz Outdoor/ Indoor Directional MIMO Patch Panel Antenna for wireless hot spot coverage
2500 - 2700 MHz Outdoor/ Indoor Directional MIMO Patch Panel Antenna for wireless hot spot coverage
2500 - 2700 MHz Outdoor/ Indoor Directional MIMO Patch Panel Antenna for wireless hot spot coverage
Specifications
Brand Name :
AMEISON
Model Number :
AMXW-2527VH-D12L60
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Supply Ability :
50,000 Pieces per Month
Product Name :
MIMO Patch Panel Antenna
Frequency range（MHz） :
2500～2700
Polarization :
Vertical and Horizontal
Gain（dBi） :
2×12
V.S.W.R. :
≤1.5
Input connector type :
2-N Female
Dimensions-mm (Height/Width/Depth) :
220*122*25
Description

2500 - 2700 MHz Outdoor/ Indoor Directional MIMO Patch Panel Antenna for wireless hot spot coverage

Feature:

High gain

Full day working

Optimized dimension

Dual polarization

Application:

2.5/ 2.7 GHz WLAN system

2.5/ 2.7 GHz ISM band

Public wireless hot spot coverage

Wi-Fi system

AMXW-2527VH-D12L60

Electrical Specifications
Frequency range(MHz) 2500～2700
Polarization Vertical and Horizontal
Gain(dBi) 2×12
Half-power beam width(°) H: 60 V: 30
Front-to-back ratio(dB) ≥25
Input Impedance(Ω) 50
V.S.W.R. ≤1.5
Isolation between ports ≥28dB
Cross-polar ratio ≥15dB@0º ≥10dB@+/-60º
Sidelobe suppression for first sidelobe above horizon 15 dB
Maximum input power(W) 200
Lightning protection DC Ground
Mechanical Specifications
Input connector type 2-N Female
Dimensions-mm (Height/Width/Depth) 220*122*25
Packing size(mm) 260*160*90
Antenna weight (kg) 0.37
Radome material ABS
Radome color White
Mechanical tilt(°) 0～10
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Waterproof Standard IP54/ IP65/ IP67
Mounting way wall-hanging or pole-holding
Mounting hardware(mm) ￠30 ～ ￠50
