AMEISON WIFI Directional Base station Panel Antenna 2.4ghz and 5.8ghz antenna high gain 16sbi sector antenna
AMEISON WIFI Directional Base station Panel Antenna 2.4ghz and 5.8ghz antenna high gain 16sbi sector antenna
AMEISON WIFI Directional Base station Panel Antenna 2.4ghz and 5.8ghz antenna high gain 16sbi sector antenna
AMEISON WIFI Directional Base station Panel Antenna 2.4ghz and 5.8ghz antenna high gain 16sbi sector antenna
Specifications
Brand Name :
AMEISON
Model Number :
AMXP-2458V2H2-D16L120
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Frequency range（MHz） :
2400～2500 and 5725～5850
Polarization :
Vertical and horizontal
Gain（dBi） :
16
Lightning protection :
DC Ground
Input connector type :
4×N Female
Description

AMEISON WIFI Directional Base station Panel Antenna 2.4ghz and 5.8ghz antenna high gain 16sbi sector antenna

Feature:

High gain

Full day working

Optimized dimension

Vertical or horizontal

Application:

2.4 GHz WLAN system

2.4 GHz ISM band

Wi-Fi system

5.8 GHz WLAN system

5.8 GHz ISM band

AMXP-2458V2H2-D16L120

Electrical Specifications
Frequency range(MHz) 2400～2500 5725～5850
Polarization Vertical and horizontal
Gain(dBi) 2x16 2x16
half-power beam width(0°) H:120 V:7 H:120 V:7
Front-to-back ratio(dB) ≥18 ≥18
Input Impedance(Ω) 50
Isolation between ports(dB) ≥28
Cross-polar ratio(dB) ≥15@0º ≥10@+/-60º
Sidelobe suppression for first sidelobe above horizon(dB) 15
VSWR ≤1.5 ≤1.5
Maximum input power(W) 200 200
Lightning protection DC Ground
Mechanical Specifications

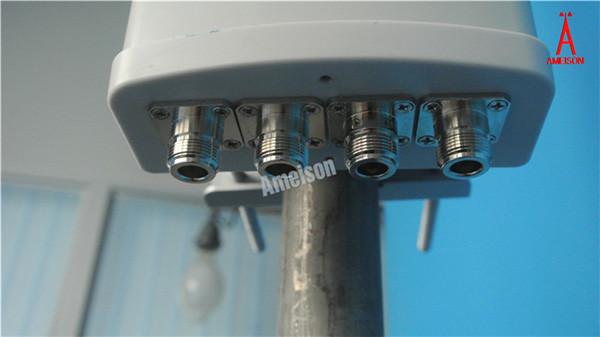

Input connector type 4×N Female
Dimensions-mm (Height/Width/Depth) 1500*130*62
Packing size(mm) 1550*170*150
Antenna weight(kg) 8.5
Radome material UPVC
Radome color Gray
Mechanical tilt(°) 0～10
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Waterproof Standard IP67

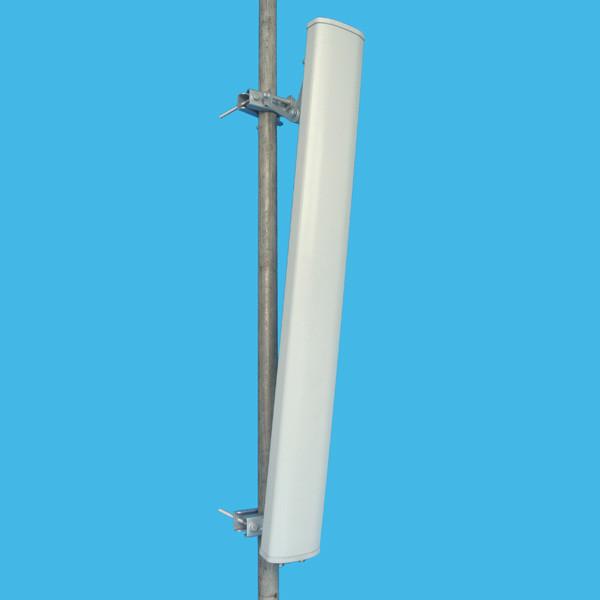

Mounting way pole-holding
Mounting hardware(mm) ￠35 ～ ￠90
