AMEISON 2400-2483MHz Directional Panel Antenna Indoor Outdoor WIFI 2.4GHz Antenna
AMEISON 2400-2483MHz Directional Panel Antenna Indoor Outdoor WIFI 2.4GHz Antenna
AMEISON 2400-2483MHz Directional Panel Antenna Indoor Outdoor WIFI 2.4GHz Antenna
AMEISON 2400-2483MHz Directional Panel Antenna Indoor Outdoor WIFI 2.4GHz Antenna
Specifications
Brand Name :
AMEISON
Model Number :
AMXW-2400-18B
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Frequency range(MHz) :
2400-2483
Polarization :
Vertical
Input Impedance(Ω) :
50
VSWR :
≤1.5
Input connector type :
N Female
Dimensions-mm (Height/Width/Depth) :
410*207*36
Bandwidth（MHz） :
83
Gain（dBi） :
18
Description

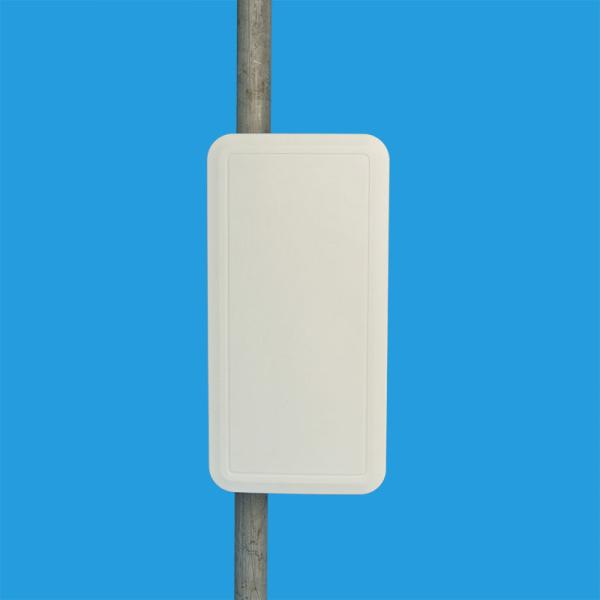

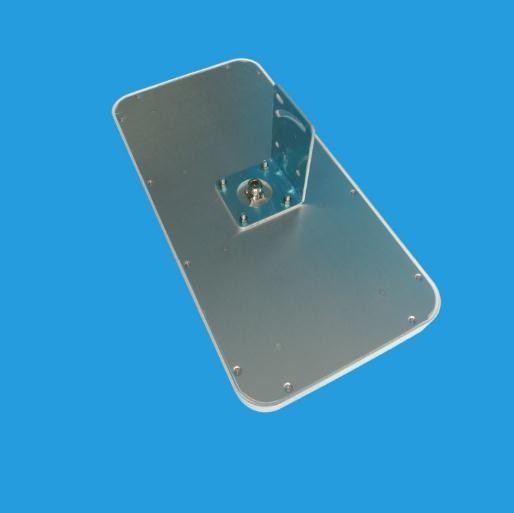

AMEISON 2400-2483MHz Directional Panel Antenna Indoor Outdoor WIFI 2.4GHz Antenna

Feature:

High gain,strong anti-interference ability

Good defense system

Full day working

Exquisite appearance

Optimized dimension

Application:

2.4GHZ WLAN system

2.4GHZ ISM band

WIFI communication system

AMXW-2400-18B

Electrical Specifications
Frequency range(MHz) 2400-2483
Bandwidth(MHz) 83
Gain(dBi) 18
Half-power beam width(°) H:30 V:15
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 50
Lightning protection DC Ground
Input connector type N Female
Mechanical Specifications
Dimensions-mm (Height/Width/Depth) 410*207*36
Antenna weight(kg) 0.8
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome color white
Mounting way Pole-holding
Mounting hardware(mm) ￠35～￠50
