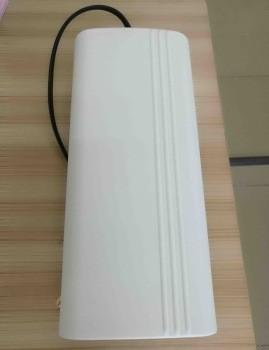

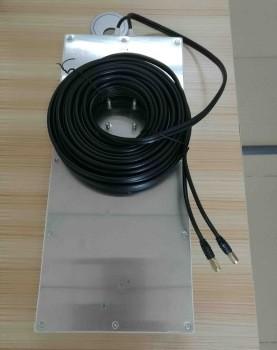

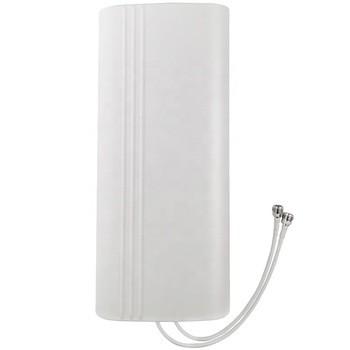

AMEISON 1700 - 2700 MHz High gain 14dbi outdoor 4G LTE MIMO Panel Antenna 4g lte Modem router antenna
AMEISON 1700 - 2700 MHz High gain 14dbi outdoor 4G LTE MIMO Panel Antenna 4g lte Modem router antenna
AMEISON 1700 - 2700 MHz High gain 14dbi outdoor 4G LTE MIMO Panel Antenna 4g lte Modem router antenna
AMEISON 1700 - 2700 MHz High gain 14dbi outdoor 4G LTE MIMO Panel Antenna 4g lte Modem router antenna
AMEISON 1700 - 2700 MHz High gain 14dbi outdoor 4G LTE MIMO Panel Antenna 4g lte Modem router antenna
AMEISON 1700 - 2700 MHz High gain 14dbi outdoor 4G LTE MIMO Panel Antenna 4g lte Modem router antenna
AMEISON 1700 - 2700 MHz High gain 14dbi outdoor 4G LTE MIMO Panel Antenna 4g lte Modem router antenna
AMEISON 1700 - 2700 MHz High gain 14dbi outdoor 4G LTE MIMO Panel Antenna 4g lte Modem router antenna
Specifications
Brand Name :
AMEISON
Model Number :
AMXW-1727S-D14
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or others
Frequency range（MHz） :
1700-2700
Gain（dBi） :
14
Half-power beam width（°） :
H:60 V:14
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
2*SMA male or Requested
Description

AMEISON 1700 - 2700 MHz High gain 14dbi outdoor 4G LTE MIMO Panel Antenna 4g lte Modem router antenna

Feature:

High gain, strong anti-interference ability

Good defense system

Full day working

Exquisite appearance

Optimized dimension

Application:

3g / 4g/ LTE/ WLAN/ Wi-Fi system
Wireless communication and data transmission system

AMXW-1727S-D14

Electrical Specifications
Frequency range(MHz) 1700-2700
Bandwidth(MHz) 1000
Gain(dBi) 14
Half-power beam width(°) H:65 V:14
V.S.W.R. ≤1.5
Input Impedance(Ω) 50
Polarization ±45°
Maximum input power(W) 50
Lightning protection DC Ground
Input connector type 2 × SMA Male or Requested
Mechanical Specifications
Dimensions-mm(Height/Width/Depth) 410*180*62
Antenna weight(kg) 2
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome material ABS
Radome color white
Waterproof Standard IP54/ IP65
Mounting way pole-holding
Mounting hardware(mm) ￠35 - ￠50
