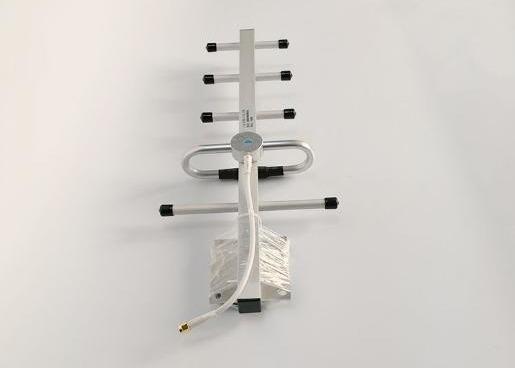

AMEISON 806-960MHz 7dbi Outdoor Directional Yagi Antenna for repeater booster mobile phone signal
AMEISON 806-960MHz 7dbi Outdoor Directional Yagi Antenna for repeater booster mobile phone signal
AMEISON 806-960MHz 7dbi Outdoor Directional Yagi Antenna for repeater booster mobile phone signal
AMEISON 806-960MHz 7dbi Outdoor Directional Yagi Antenna for repeater booster mobile phone signal
AMEISON 806-960MHz 7dbi Outdoor Directional Yagi Antenna for repeater booster mobile phone signal
AMEISON 806-960MHz 7dbi Outdoor Directional Yagi Antenna for repeater booster mobile phone signal
AMEISON 806-960MHz 7dbi Outdoor Directional Yagi Antenna for repeater booster mobile phone signal
AMEISON 806-960MHz 7dbi Outdoor Directional Yagi Antenna for repeater booster mobile phone signal
AMEISON 806-960MHz 7dbi Outdoor Directional Yagi Antenna for repeater booster mobile phone signal
AMEISON 806-960MHz 7dbi Outdoor Directional Yagi Antenna for repeater booster mobile phone signal
AMEISON 806-960MHz 7dbi Outdoor Directional Yagi Antenna for repeater booster mobile phone signal
AMEISON 806-960MHz 7dbi Outdoor Directional Yagi Antenna for repeater booster mobile phone signal
Specifications
Brand Name :
AMEISON
Model Number :
AMXY-8090-7
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
500
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Frequency range(MHz) :
806-960
Gain(dBi) :
7
Polarization :
Horizontal or Vertical
Lightning protection :
DC Ground
Input connector type :
SMA male or others
Material :
Aluminum
Name :
900mhz GSM Yagi Antenna
Description

AMEISON 806-960MHz 7dbi Outdoor Directional Yagi Antenna for repeater booster mobile phone signal

Feature:

High gain

Aluminum alloy framework

Full day working

Optimized dimension

Mounting way can be Vertical or Horizontal

Application:

CDMA,GSM system

Point-to-point,point-to-multipoint system

Wireless bridging,client termination antenna

AMXY-8090-7

Electrical Specifications
Frequency range(MHz) 806-960
Bandwidth(MHz) 154
Gain(dBi) 7
Element 5
Half-power beam width(°) H:68 V:60
Front-to-back ratio(dB) ≥16
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Horizontal or Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type N female or others
Mechanical Specifications
Dimensions(mm) 350*190*54
Cable length(m) 0.25
Antenna weight(kg) 0.4
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Clamp U-shape
Mounting hardware(mm) Φ35～Φ50
