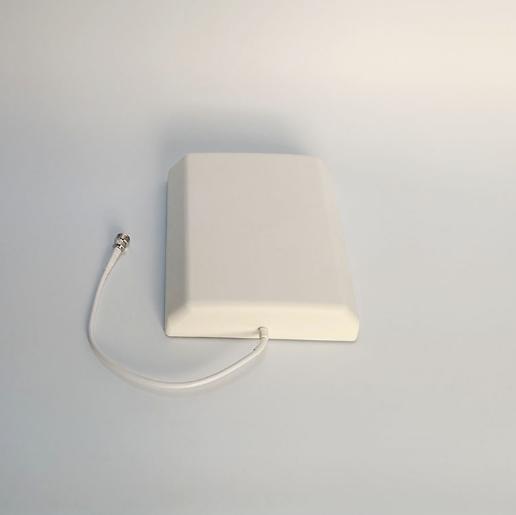

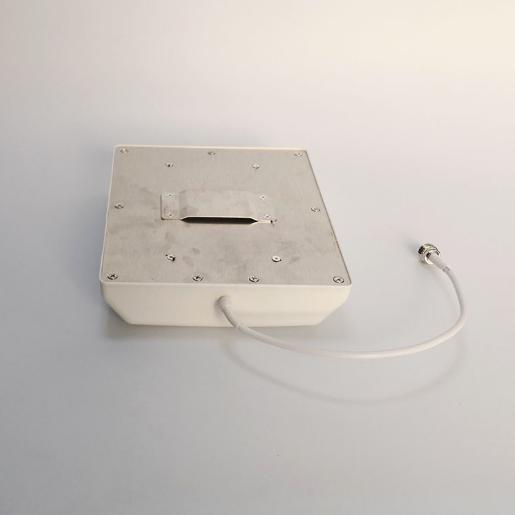

806 - 2700MHz 10dBi Indoor Wall Mount 3G 4G LTE Directional Flat Patch Panel Antenna
806 - 2700MHz 10dBi Indoor Wall Mount 3G 4G LTE Directional Flat Patch Panel Antenna
806 - 2700MHz 10dBi Indoor Wall Mount 3G 4G LTE Directional Flat Patch Panel Antenna
806 - 2700MHz 10dBi Indoor Wall Mount 3G 4G LTE Directional Flat Patch Panel Antenna
806 - 2700MHz 10dBi Indoor Wall Mount 3G 4G LTE Directional Flat Patch Panel Antenna
806 - 2700MHz 10dBi Indoor Wall Mount 3G 4G LTE Directional Flat Patch Panel Antenna
Specifications
Brand Name :
AMEISON
Model Number :
AMXW-8027-10
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Frequency range（MHz） :
806～960/1710～2700
Bandwidth（MHz） :
154/990
Gain（dBi） :
7/10
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Female or Requested
Description

806 - 2700MHz 10dBi Indoor Wall Mount 3G 4G LTE Directional Flat Patch Panel Antenna

Feature:

High gain,strong anti-interference ability

Good defense system

Full day working

Exquisite appearance

Optimized dimension

Application:

Indoor coverage system

CDMA800/GSM900/3G/4g/LTE/WLAN system

AMXW-8027-10

Electrical Specifications
Frequency range(MHz) 806～960/1710～2700
Bandwidth(MHz) 154/990
Gain(dBi) 7/10
Half-power beam width(°) H:70/60 V:55/45
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 50
Lightning protection DC Ground
Cable length 30cm or request
Input connector type SMA male or Requested
Mechanical Specifications
Dimensions-mm (Height/Width/Depth) 210*180*45
Antenna weight(kg) 0.57
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome material ABS
Radome color white
Mounting Pole(mm) ￠35-￠50
