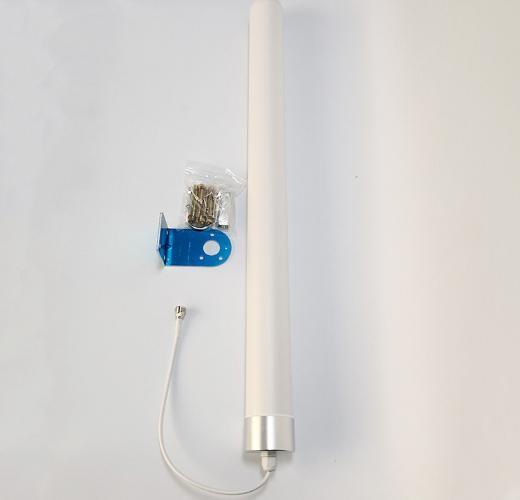

800 - 2700 MHz High gain 10dbi 3G 4G LTE WIFI Outdoor Omni directional Antenna
800 - 2700 MHz High gain 10dbi 3G 4G LTE WIFI Outdoor Omni directional Antenna
800 - 2700 MHz High gain 10dbi 3G 4G LTE WIFI Outdoor Omni directional Antenna
800 - 2700 MHz High gain 10dbi 3G 4G LTE WIFI Outdoor Omni directional Antenna
800 - 2700 MHz High gain 10dbi 3G 4G LTE WIFI Outdoor Omni directional Antenna
800 - 2700 MHz High gain 10dbi 3G 4G LTE WIFI Outdoor Omni directional Antenna
800 - 2700 MHz High gain 10dbi 3G 4G LTE WIFI Outdoor Omni directional Antenna
800 - 2700 MHz High gain 10dbi 3G 4G LTE WIFI Outdoor Omni directional Antenna
Specifications
Brand Name :
AMEISON
Model Number :
AMXF-8027-10
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
20
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
500,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging) or others
Frequency range（MHz） :
806-960/1710-2700
Gain（dBi） :
10
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N type or Requested
Name :
4G LTE omni antenna
Description

800 - 2700 MHz High gain 10dbi 3G 4G LTE WIFI Outdoor Omni directional Antenna

Feature:

Exquisite appearance

Optimized dimension

Full day working

Wide frequency band,

low standing wave,strong anti-interference ability

Application:

GSM/CDMA/PCS/3G/WLAN/WIFI/4G/LTE system

AMXF-8027-10

Electrical Specifications
Frequency range(MHz) 806-960 / 1710-2700
Bandwidth(MHz) 154 / 990
Gain(dBi) 8/10
Half-power beam width(°) H:360 V:15
VSWR ≤1.8/1.5
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Cable length 30cm

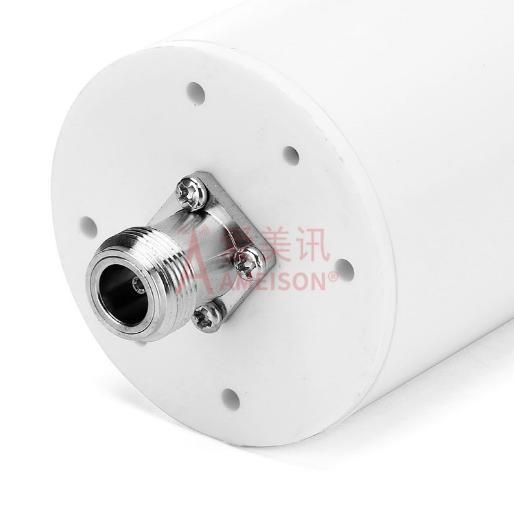

Input connector type N female or Requested
Mechanical Specifications
Dimensions (mm) Φ60*750
Antenna weight(kg) 1.5
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome color White
Mounting way Pole-holding
Mounting hardware(mm) ￠35-￠50
Product tags

long range 4g lte antenna

,

best 4g signal antenna

,

4g omni directional antenna
