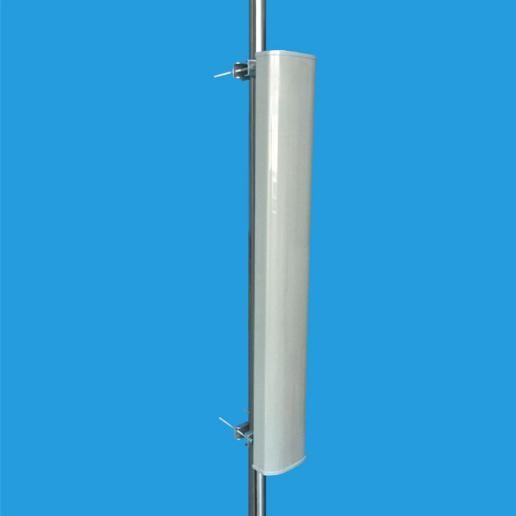

AMEISON 1700-2700MHz High gain 18dbi Dual Polarization 4G LTE Outdoor Directional Panel Sector Antenna
AMEISON 1700-2700MHz High gain 18dbi Dual Polarization 4G LTE Outdoor Directional Panel Sector Antenna
Specifications
Brand Name :
AMEISON
Model Number :
AMXP-1727S-D18L65
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
50
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging) or others
Frequency range(MHz) :
1700-2700
Gain(dBi) :
18
Polarization :
±45º
Lightning protection :
DC Ground
Input connector type :
N female or others
Material :
Aluminum
Name :
1700-2700mhz Directional Sector Antenna
Description

AMEISON 1700-2700MHz High gain 18dbi Dual Polarization 4G LTE Outdoor Directional Panel Sector Antenna

Feature:

High gain

Full day working

Optimized dimension

Dual polarization

Application:

DCS,PCS,3G,4G,LTE WIFI system

Wireless communication and data transmission system

AMXP-1727S-D18L65

Electrical Specifications
Frequency range(MHz) 1710～2700
Polarization ±45º
Gain(dBi) 2×18
Half-power beam width(°) H:65 V:7
Front-to-back ratio(dB) ≥25
Input Impedance(Ω) 50
VSWR ≤1.5
Isolation between ports ≥28dB
Cross-polar ratio ≥15dB@0º ≥10dB@+/-60º
Sidelobe suppression for first sidelobe above horizon 15 dB
Maximum input power(W) 200
Lightning protection DC Ground
Mechanical Specifications
Input connector type 2-N Female
Dimensions-mm (Height/Width/Depth) 1120*175*80
Packing size(mm) 1200*250*190
Antenna weight (kg) 6.5
Radome material UPVC
Radome color Gray
Mechanical tilt(°) 0～10
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Mounting hardware(mm) ￠35～￠75
