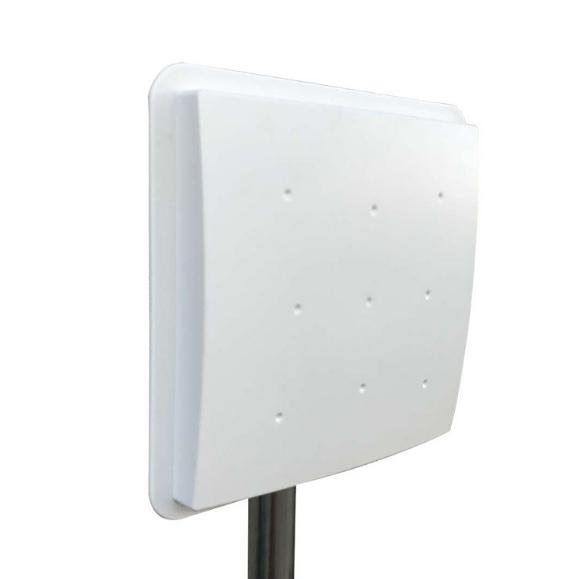

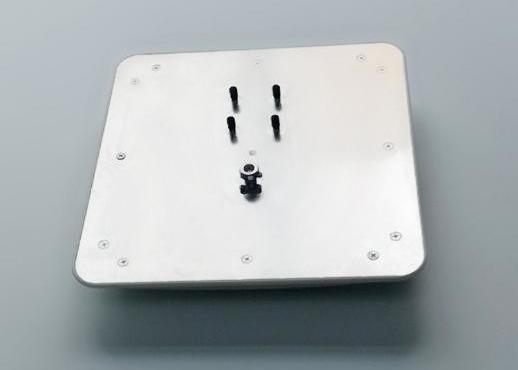

850～960MHz Outdoor pole mount Circular polarized Directional Antenna 9dBi RFID panel Antenna With N type female
850～960MHz Outdoor pole mount Circular polarized Directional Antenna 9dBi RFID panel Antenna With N type female
850～960MHz Outdoor pole mount Circular polarized Directional Antenna 9dBi RFID panel Antenna With N type female
850～960MHz Outdoor pole mount Circular polarized Directional Antenna 9dBi RFID panel Antenna With N type female
850～960MHz Outdoor pole mount Circular polarized Directional Antenna 9dBi RFID panel Antenna With N type female
850～960MHz Outdoor pole mount Circular polarized Directional Antenna 9dBi RFID panel Antenna With N type female
850～960MHz Outdoor pole mount Circular polarized Directional Antenna 9dBi RFID panel Antenna With N type female
850～960MHz Outdoor pole mount Circular polarized Directional Antenna 9dBi RFID panel Antenna With N type female
Specifications
Place of Origin :
China
Brand Name :
AMEISON
Model Number :
AMXW-8090C-9
Certification :
ISO 9001: 2008
Packaging Details :
PP bag /inner box/master carton or customized
Delivery Time :
10-25 working days
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
MOQ :
100
Frequency range（MHz） :
850～960
Gain（dBi） :
9
VSWR :
≤1.5
Polarization :
circular
Lightning protection :
DC Ground
Input connector type :
N Female
Description

850～960MHz 9dBi Circular polarized Directional RFID panel Antenna With N female

Feature:

Circularly polarized.

Low VSWR and High Gain

Good performance

Exquisite appearance

Optimized dimension

Application:

RFID system, Logistics monitoring, personnel positioning,

Auto-parking system, Warehouse management system, etc.

Product Details

AMXW-8090C-9

Electrical Specifications

Frequency range(MHz)

850～960

Bandwidth(MHz)

110

Gain(dBi)

9

Half-power beam width(°)

H:65 V:65

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Circular

Maximum input power(W)

100

Lightning protection

DC Ground

Input connector type

N N Female

Mechanical Specifications

Dimensions-mm (Height/Width/Depth)

260*260*45

Antenna weight(kg)

1

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome material

ABS

Radome color

white

Mounting hardware(mm)

￠35-￠50
