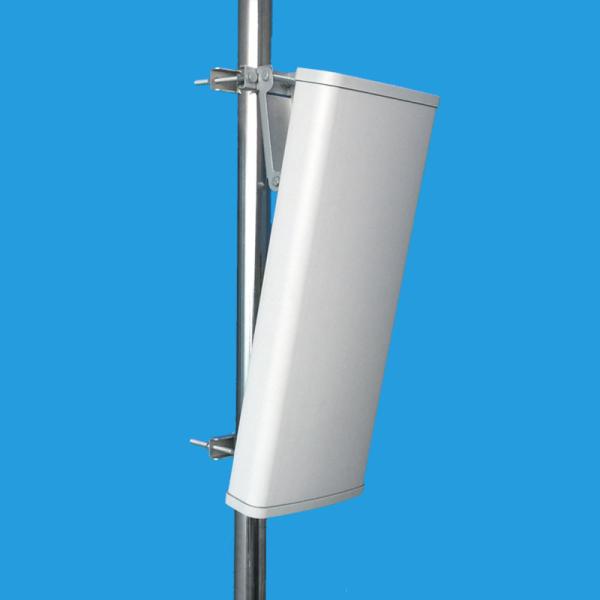

806-2700MHz Directional Panel Antenna 10dbi GSM CDMA PCS 3G WLAN Broadband Panel Base Station Antenna
806-2700MHz Directional Panel Antenna 10dbi GSM CDMA PCS 3G WLAN Broadband Panel Base Station Antenna
Specifications
Place of Origin :
China
Brand Name :
AMEISON
Model Number :
AMXP-8027S-D10L65
Certification :
ISO 9001: 2008
Price :
EXW Price
Packaging Details :
PP bag /inner box/master carton or customized
Delivery Time :
10-20 working days
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
MOQ :
50
Color :
Gray
Frequency rang(MHz) :
806-960/1710-2700
Polarization :
Vertical
Gain(dBi) :
10
Beamwidth(°) :
H:65 V:50
F/B ratio(dB) :
≥25
VSWR :
≤1.5
Connector model :
N Female
Description

806-2700MHz Directional Panel Antenna 10dbi GSM CDMA PCS 3G WLAN Broadband Panel Base Station Antenna

Feature:

High gain

Full day working

Optimized dimension

Dual polarization

Application:

CDMA/GSM/PCS/3G/WLAN/LTE system

Wireless communication and data transmission system

AMXP-8027S-D10L65

Electrical Specifications
Frequency range 806～960 1710～2700
Polarization ±45º
Gain(dBi) 10 10
Half-power beam width(0°) H:65 V:50 H:65 V:50
Front-to-back ratio(dB) ≥25 ≥25
Input Impedance(Ω) 50
Isolation between ports ≥28dB
Cross-polar ratio ≥15dB@0º ≥10dB@+/-60º
Sidelobe suppression for first sidelobe above horizon 15 dB
VSWR ≤1.5 ≤1.5
Maximum input power(W) 400 200
Lightning protection DC Ground
Mechanical Specifications
Input connector type 2-N Female
Dimensions-mm (Height/Width/Depth) 550*280*80
Packing size(mm) 590*320*160
Antenna weight (kg) 5.5
Radome material UPVC
Radome color Gray
Mechanical tilt(°) 0～10
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Mounting hardware(mm) ￠35～￠90
