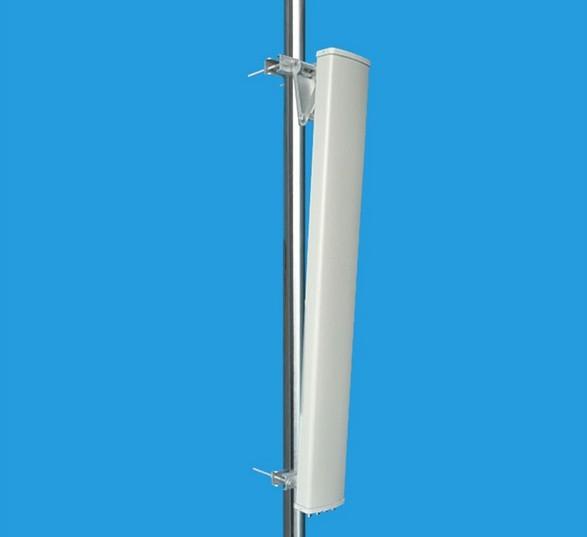

2400-5850MHz Directional Panel Antenna 17dBi 2.4ghz and 5.8ghz Dual band 4×4 MIMO Sector WIFI antenna
2400-5850MHz Directional Panel Antenna 17dBi 2.4ghz and 5.8ghz Dual band 4×4 MIMO Sector WIFI antenna
2400-5850MHz Directional Panel Antenna 17dBi 2.4ghz and 5.8ghz Dual band 4×4 MIMO Sector WIFI antenna
2400-5850MHz Directional Panel Antenna 17dBi 2.4ghz and 5.8ghz Dual band 4×4 MIMO Sector WIFI antenna
2400-5850MHz Directional Panel Antenna 17dBi 2.4ghz and 5.8ghz Dual band 4×4 MIMO Sector WIFI antenna
2400-5850MHz Directional Panel Antenna 17dBi 2.4ghz and 5.8ghz Dual band 4×4 MIMO Sector WIFI antenna
Specifications
Place of Origin :
China
Brand Name :
AMEISON
Model Number :
AMXP-2451V2H2-D17L90
Certification :
ISO 9001: 2008
Price :
EXW Price
Packaging Details :
PP bag /inner box/master carton or customized
Delivery Time :
10-20 working days
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
MOQ :
20
Frequency range（MHz） :
2400～2500 and 5150～5850
Polarization :
Vertical and horizontal
Gain（dBi） :
17
Lightning protection :
DC Ground
Input connector type :
4×N Female
Description

2400-5850MHz Directional Panel Antenna 17dBi 2.4ghz and 5.8ghz Dual band 4×4 MIMO Sector WIFI antenna

Feature:

High gain

Full day working

Optimized dimension

Vertical or horizontal

Application:

2.4 GHz WLAN system

2.4GHz ISM band

Wi-Fi system

5.8 GHz WLAN system

5.8 GHz ISM band

AMXP-2451V2H2-D17L90

Electrical Specifications
Frequency range(MHz) 2400～2500 5150～5850
Polarization Vertical and horizontal
Gain(dBi) 17 17
Half-power beam width(0°) H:90 V:7 H:90 V:7
Front-to-back ratio(dB) ≥23 ≥23
Input Impedance(Ω) 50
Isolation between ports(dB) ≥28
Cross-polar ratio(dB) ≥15@0º ≥10@+/-60º
Sidelobe suppression for first sidelobe above horizon(dB) 15
VSWR ≤1.5 ≤2.0
Maximum input power(W) 200 100
Lightning protection DC Ground
Mechanical Specifications
Input connector type 4×N Female
Dimensions-mm (Height/Width/Depth) 1500*128*54
Packing size(mm) 1550*146*110
Antenna weight(kg) 6.8
Radome material UPVC
Radome color Gray
Mechanical tilt(°) 0～10
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Mounting hardware(mm) ￠35～￠90
