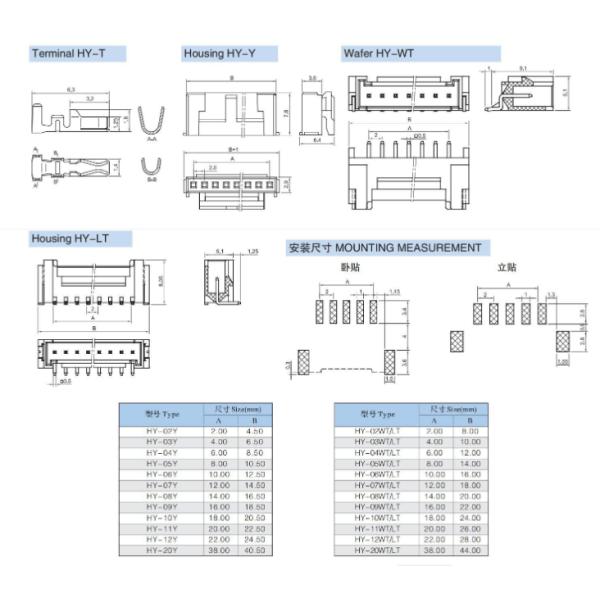

Dip HY2.0mm PH Buckle Wafer WTB Electronic Connector
Dip HY2.0mm PH Buckle Wafer WTB Electronic Connector
Dip HY2.0mm PH Buckle Wafer WTB Electronic Connector
Dip HY2.0mm PH Buckle Wafer WTB Electronic Connector
Specifications
Brand Name :
DALEE
Model Number :
5001-WF0020-04LK
Certification :
ROHS ,SGS, ISO9001
Place of Origin :
Guangdong,China(Mainland)
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000K/month
Delivery Time :
5-7 working days
Packaging Details :
Inner packing:Tube/Reel 。 Outter packing:Standard export carton
Voltage rating （max） :
250V AC/DC
Working Temperature :
-25°C-+85°C
Type :
SMT
PIN :
2pin ~ 20pin
Pitch :
2.0mm
Contact resistance :
≦20mΩ
Housing Material :
（Nylon66）UL94V-0
Applicable wires :
AWG28#-22#
Description

HY2.0mm PH buckle wafer /WTB electronic connector Dip type housing connector

Flat Flexible Cable, or FFC, refers to any variety of electrical cable that is both flat and flexible, with flat solid conductors. A flexible flat cable is a type of flexible electronics. However, the term FFC usually refers to the extremely thin flat cable often found in high-density electronic applications like laptops and cell phones.

Housing: LCP, White, Flammability Rating(UL94V-0)

Actuator: LCP,Black,Flammability Rating(UL94V-0)

Terminal:Phosphor Bronze

Fitting Nail: Phosphor Bronze

Product Details:

Product name: DALEE Connector
Secification: PH 2.0 mm
Type: 90 ° DIP
Certification: ISO9001,UL,ROHS and the latest REACH
Current Rating: 3.0A AC/DC
Withstand Voltage : 500 V AC/minute
Operating Temprature: -25 ℃ ~ +85 ℃
Insulation Resistance 1000V AC(rms)
Contact Resistance: 20MΩ max
Applicable Wire: AWG28#-22#

Dip HY2.0mm PH Buckle Wafer WTB Electronic Connector

Product Application:

Our connectors are widely applied tocusumer electronics, cummunications industry , military industry ,

automotive filed, medical equipment , data module and so on .

Competitive Advantages:

1,10 year's experience in the electronic business

2,Strong R&D team specialized in connector and model design

3,Quality certification ,including ROHS,SGS,ISO9001 and UL certification

4,Strict shipping ,100% tested before delivery

5,Fast delivery,purchasing orders shipped in 3-10 days

6,Samples can be provided for free in 1-3 days

Dalee Main Export Markets : Asia,Africa,South and North America and Europe .

Payment term and delivery

1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Delivery Time: 3-15 working days after order confirmed and the payment received.

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.

8. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton.
