3.0A Current Rating USB Type C Connector Temperature Resistant Plastic Materials
3.0A Current Rating USB Type C Connector Temperature Resistant Plastic Materials
Specifications
Brand Name :
DALEE
Model Number :
DL50010310
Certification :
ROHS ,SGS, ISO9001
Place of Origin :
Guangdong,China(Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000KK/month
Delivery Time :
5-10 days
Packaging Details :
PE bag, Tube, Volume
Gender :
Female
Pin :
24 P
Application :
multi port usb charger
Housing :
Thermoplastic , UL94 V-0
Operating Temprature :
-25℃ - +85 ℃
Removal Force :
0.8~2.0kgf
Description

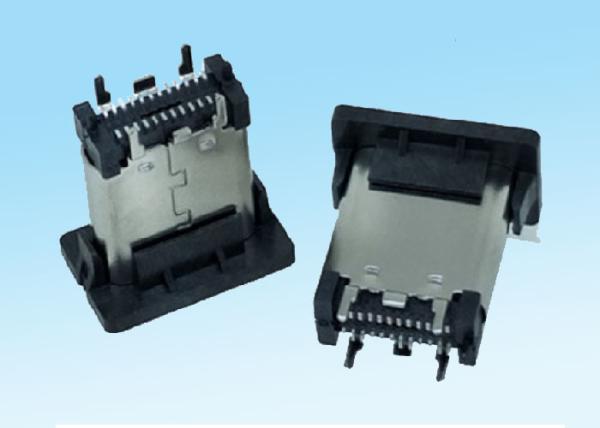

24 Pin usb 3.1 type c connector in fast charging micro usb cable with temperature resistant plastic

Product Details:

Product name: DALEE USB Type-C Connector
Secification: 24 P
Type : Type-C
Certification: ISO9001,UL,ROHS and the latest REACH
Insertion Force: 0.5~2.0kgf
Removal Force: 0.8~2.0kgf
Durability: 10000 cycles
Current Rating: 3.0A
Voltage Rating: 5.0 V
Current Rating: 1.0A
Shield: 50mΩ /MAX
Insulation Resistance: 100mΩ/MIN
Operating Temprature: -25℃ - +85 ℃
Contacts: Copper Alloy
Housing: Thermoplastic , UL94 V-0

Material Specification:

1) Mid Plate: stainless steel

2) Housing: Hig Temperature resistant plastic,UL94 V-0.

3) Solder area: Au : G/F

4) Front shell : stainless steel

IR Reflow: The peak temperature on the board shall ,be maintained for 10 seconds at 260°C.

Drawing:

3.0A Current Rating USB Type C Connector Temperature Resistant Plastic Materials

3.0A Current Rating USB Type C Connector Temperature Resistant Plastic Materials

Product Application: Dalee connectors are widely applied to lots of industries, such as computer peripheral products ,cusumer electronics, action camera manual mini sport DV, rear DVR video recorder , unmanned aerial vehicle, cummunications industry ,military industry ,automotive filed, medical equipment and so on .

Competitive Advantages:

1, More than 10 year's experience in the electronic business.

2, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.

3, samples can be provided for free in 1-3 days .

4, we also can provide the customized products as the request of clients

5, Strict shipping ,100% tested before delivery

6, fast delivery,purchasing orders shipped in 3-10 days

Payment term and delivery:

1. MPQ:1000pcs

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation..
