100MΩ Min Insulation Resistance USB Type C Connector In Rear DVR Video Recorder
100MΩ Min Insulation Resistance USB Type C Connector In Rear DVR Video Recorder
Specifications
Brand Name :
DALEE
Model Number :
DL50010301
Certification :
ROHS ,SGS, ISO9001
Place of Origin :
Guangdong,China(Mainland)
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000KK/month
Delivery Time :
5-10 days
Packaging Details :
PE bag, Tube, Volume
Product Family :
USB Type-C
Product Status :
Active
Type :
Sink
Insulation Resistance :
100M Ω min
OP Temperature :
-25° ~ +85°
Application :
PCB board
Description

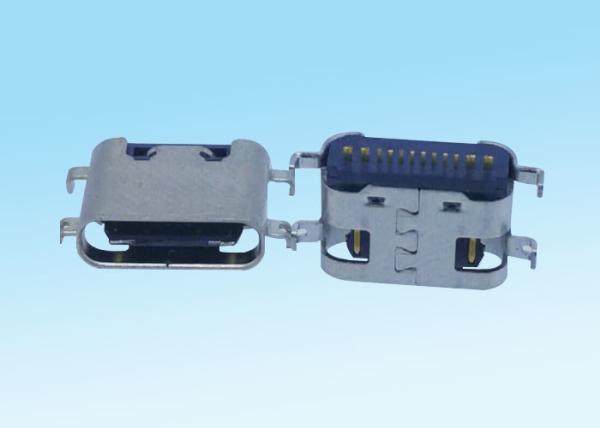

USB Type-C Connector 16 Pin in Rear DVR Video Recorder and Unmanned Aerial Vehicle

Product Details:

Product name: DALEE USB Type-C Connector
Secification: 16 P
Type : Sink
Certification: ISO9001,UL,ROHS and the latest REACH
Insertion Force: 0.5~2.0kgf
Removal Force: 0.8~2.0kgf
Durability: 10000 cycles
Current Rating: 3.0A
Voltage Rating: 5.0 V
Current Rating: 1.0A
Shield: 50mΩ /MAX
Insulation Resistance: 100mΩ/MIN
Operating Temprature: -25℃ - +85 ℃
Contacts: Copper Alloy
Housing: Thermoplastic , UL94 V-0

Material Specification:

1) Mid Plate: stainless steel

2) Front shell : stainless steel

3) Housing: Hig Temperature resistant plastic,UL94 V-0.

4) Contacts : Copper Alloy

IR Reflow: The peak temperature on the board shall ,be maintained for 10 seconds at 260°C.

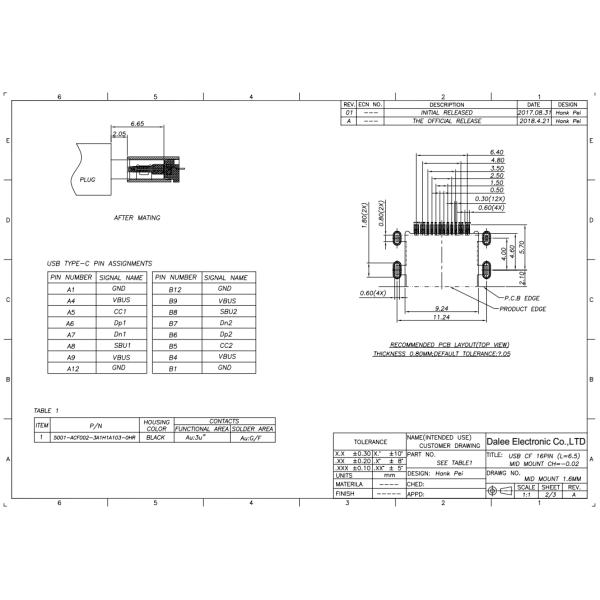

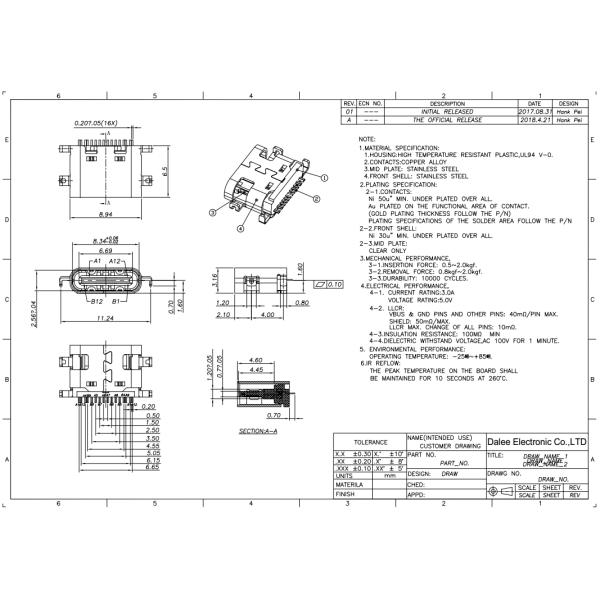

Drawing:

100MΩ Min Insulation Resistance USB Type C Connector In Rear DVR Video Recorder

100MΩ Min Insulation Resistance USB Type C Connector In Rear DVR Video Recorder

Product Application: Dalee connectors are widely applied to lots of industries, such as cummunications industry ,cusumer electronics, automotive filed, medical equipment , military industry , Computer Peripheral Products , action camera manual Mini Sport DV. Rear DVR Video Recorder , unmanned aerial vehicle and so on .

Competitive Advantages:

1, More than 10 year's experience in the electronic business.

2, Strong R&D team specialized in connector and model design.

3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.

4, One stop service of connectors with high quality and best service after sales .

5, Strict shipping ,100% tested before delivery

6, we also can provide the customized products as the request of clients

Payment term and delivery:

1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Delivery Time: 3-15 working days after order confirmed and the payment received.

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
