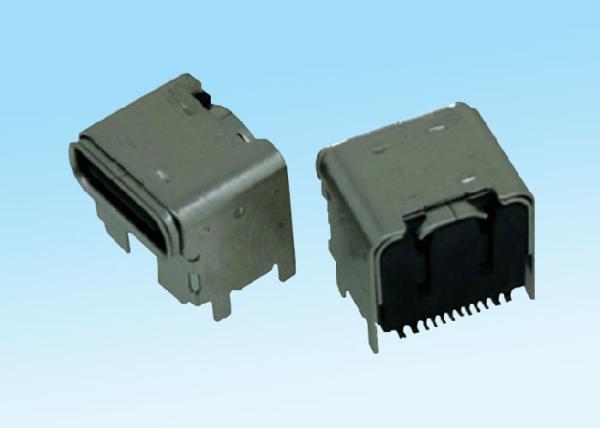

16 Pin USB Type C Connector Multi Port USB Charger 10000 Cycles Durability
16 Pin USB Type C Connector Multi Port USB Charger 10000 Cycles Durability
Specifications
Brand Name :
DALEE
Model Number :
DL50010309
Certification :
ROHS ,SGS, ISO9001
Place of Origin :
Guangdong,China(Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000KK/month
Delivery Time :
5-10 days
Packaging Details :
PE bag, Tube, Volume
High :
4.3mm
Pin :
16 P
Application :
multi port usb charger
Durability :
10000 cycles
Voltage Rating :
5.0 V
Shield :
50mΩ /MAX
Description

usb type c 3.1 H=4.3mm 16 Pin in usb type c adapter ,multi port usb charger with temperature resistant plastic

Product Details:

Product name: DALEE USB Type-C Connector
Secification: 16 P
Type : Type-C
Certification: ISO9001,UL,ROHS and the latest REACH
Insertion Force: 0.5~2.0kgf
Removal Force: 0.8~2.0kgf
Durability: 10000 cycles
Current Rating: 3.0A
Voltage Rating: 5.0 V
Current Rating: 1.0A
Shield: 50mΩ /MAX
Insulation Resistance: 100mΩ/MIN
Operating Temprature: -25℃ - +85 ℃
Contacts: Copper Alloy
Housing: Thermoplastic , UL94 V-0

Material Specification:

1) Mid Plate: stainless steel

2) Housing: Hig Temperature resistant plastic,UL94 V-0.

3) Housing c0lor: Black

4) Solder area: Au : G/F

IR Reflow: The peak temperature on the board shall ,be maintained for 10 seconds at 260°C.

Drawing:

16 Pin USB Type C Connector Multi Port USB Charger 10000 Cycles Durability

16 Pin USB Type C Connector Multi Port USB Charger 10000 Cycles Durability

Product Application: Dalee connectors are widely applied to lots of industries, such as action camera manual mini sport DV, rear DVR video recorder , unmanned aerial vehicle, cummunications industry ,cusumer electronics,computer peripheral products , military industry ,automotive filed, medical equipment and so on .

Competitive Advantages:

1, More than 10 year's experience in the electronic business.

2, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.

3, Strict shipping ,100% tested before delivery

4, samples can be provided for free in 1-3 days .

5, we also can provide the customized products as the request of clients

Payment term and delivery:

1. MPQ:1000pcs

2. Trade Terms: FOB Shenzhen or EXW.

3. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton

4. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation..

5. Payment term: 100% T/T in advance before production.

6. Payment way: T/T, Paypal , Western Union or others method.
