DIP And SMT Type USB 3.1 C Connector , Micro USB Female Connector Copper Alloy Contacts
DIP And SMT Type USB 3.1 C Connector , Micro USB Female Connector Copper Alloy Contacts
Specifications
Brand Name :
DALEE
Model Number :
DL50010313
Certification :
ROHS ,SGS, ISO9001
Place of Origin :
Guangdong,China(Mainland)
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000KK/month
Delivery Time :
5-10 days
Packaging Details :
PE bag, Tube, Volume
Gender :
Female
Pin :
24 P
Type :
DIP and SMT
Voltage Rating :
5.0 V
Current Rating :
1.0A
experience :
more than 10 years
Description

Public company USB Connector 24 Pin 3.1 type C plug Type Splint for USB 3.0

Product Details:

Product name: DALEE USB Type-C Connector
Secification: 24 P
Type : Splint double row
Certification: ISO9001,UL,ROHS and the latest REACH
Insertion Force: 0.5~2.0kgf
Removal Force: 0.8~2.0kgf
Durability: 10000 cycles
Current Rating: 3.0A
Voltage Rating: 5.0 V
Current Rating: 1.0A
Shield: 50mΩ /MAX
Insulation Resistance: 100mΩ/MIN
Operating Temprature: -25℃ - +85 ℃
Contacts: Copper Alloy
Housing: Thermoplastic , UL94 V-0

Material Specification:

1) Mid Plate: stainless steel

2) Front shell : stainless steel

3) Housing: Hig Temperature resistant plastic,UL94 V-0.

4) Contacts : Copper Alloy

5) Housing color: Black

6) Functional area: Au 3u''

7) Solder area: Au : G/F

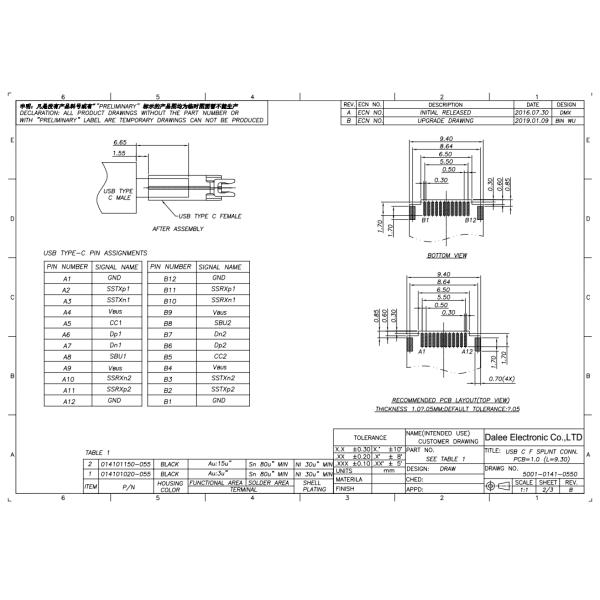

Splint 1.0mm short USB Type-C connector Drawing:

DIP And SMT Type USB 3.1 C Connector , Micro USB Female Connector Copper Alloy Contacts

DIP And SMT Type USB 3.1 C Connector , Micro USB Female Connector Copper Alloy Contacts

USB Type-C connectors Application:

1) rear DVR video recorder

2) automotive filed.

3) unmanned aerial vehicle

4) cummunications industry .

5) cusumer electronics.

6) computer peripheral products .

7) action camera manual mini sport DV.

8) medical equipment

9) military industry .

Competitive Advantages:

1, Strict shipping ,100% tested before delivery

2, we also can provide the customized products as the request of clients

3 samples can be provided for free in 1-3 days .

4, More than 10 year's experience in the electronic business.

Payment term and delivery:

1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

Frequently Asked Question:

Q: How to place an Order?

A: 1,please tell us what model and quantity you need;

2, then we will make a PI for you to confirm the order details;

3, when we confirmed everything, can arrange the payment;

4, finally we deliver the goods within the stipulated time.

Q: When can we get the reply?

A: Any inquiries will be replied within 24 hours.

Q: What’s your payment term?

A: We usually accept T/T as the main payment term, and other payments can also be negotiated
