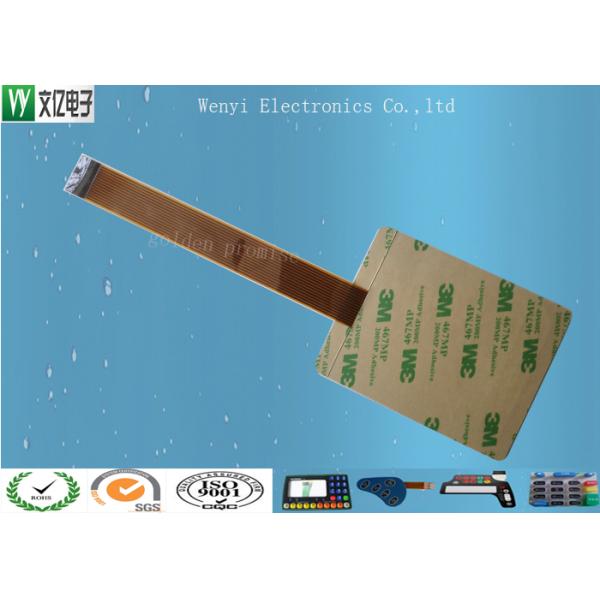

3 Keys FPC Membrane Switch Embossing Custom Membrane Switch Pad
3 Keys FPC Membrane Switch Embossing Custom Membrane Switch Pad
3 Keys FPC Membrane Switch Embossing Custom Membrane Switch Pad
3 Keys FPC Membrane Switch Embossing Custom Membrane Switch Pad
Specifications
Brand Name :
WenYI Electronics
Model Number :
GPI-FMS-006
Certification :
RoHs, SGS, ISO9001:2008
Place of Origin :
Made In China
MOQ :
10 pcs/ lot
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
500,000 pcs/ Month
Delivery Time :
10-14 working days
Packaging Details :
each in ploybag, then in carton box , as per customer request
Circuit type :
FPC flex circuit
Overlay :
PC / PET 0.20 mm overlay
Keys :
Round embossing
Connector :
long Zif connector
LED Brand :
Ever Light
Surface :
Matte Finish Textured
Pitch :
1.0mm
Description

Item Description:

3 keys High Reliable Embossing and SMT Multi leds FPC Membrane Switch with Textured overlay

Circuit type: FPC flexible Circuit

Embossing: LED window and Key embossing,

LED: everlight Multi-Leds By SMT weld

Connctor Brand: ChangJiang or any brand as per request.

Backadhesive: 3M Series

Dome Type: Metal Dome

Touch Force: 280g

Window Color: Clear Led window

Application

  1. * Medical Equipment or Device
  2. * Smart phone systems
  3. * Household appliances
  4. * Security systems
  5. * Home Appliance
  6. * Various industry control keypad panel
  7. * consumer electronics and 3C items.
  8. * Digital Products.

Technical Specification:

Keyp Content None tactile Tactile
Contact Rating: 30 DVC maximum,100mA maximum, 1 watt maximum 30 DVC maximum,100mA maximum, 1 watt maximum
Operating Contact Resistance Less than 100 OHMS typical Less than 100 OHMS typical
Contact Bounce 5ms typical 10ms typical
Life Cycles >2,000,000 >1,000,000
Switch travel 0.1mm-0.4mm 0.6mm-1.0mm
Switch thickness 0.6mm-1.52mm 0.6mm-1.52mm
Storage Tem -40°C to 65°C -40°C to 65°C
Operating Tem -40°C to 65°C -40°C to 65°C

3 Keys FPC Membrane Switch Embossing Custom Membrane Switch Pad
