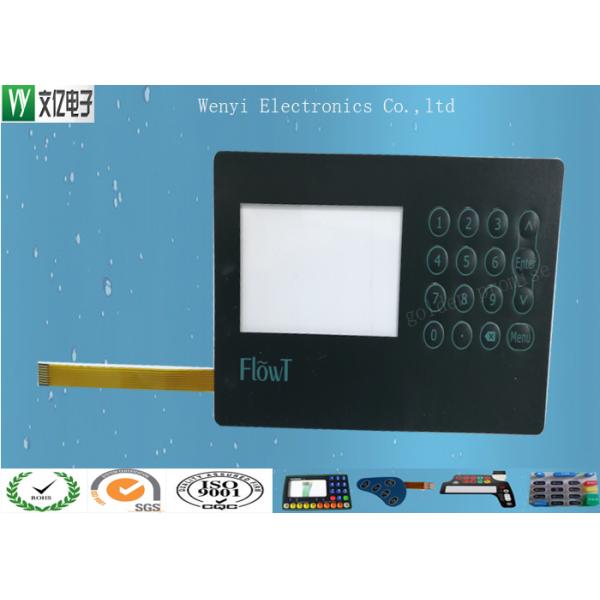

0.5 Mm Pitch Embossing Membrane Switch , Double Side Membrane Switch Keypad
0.5 Mm Pitch Embossing Membrane Switch , Double Side Membrane Switch Keypad
0.5 Mm Pitch Embossing Membrane Switch , Double Side Membrane Switch Keypad
0.5 Mm Pitch Embossing Membrane Switch , Double Side Membrane Switch Keypad
Specifications
Brand Name :
Wenyi Electronics
Model Number :
GPI-FMS-0021
Certification :
RoHs, SGS, ISO9001
Place of Origin :
Made in China
MOQ :
10 pcs / lot
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5,000,000 pcs / Months
Delivery Time :
10-14 working days
Packaging Details :
ploybag for each, then in carton box
Circuit type :
FPC
Overlay :
AutoType V200
Backadhesive :
3M Serious
Connector :
Gold Finger
Embossing :
Round embossing
Waterproof :
IP54，IP67，IP65
Description

Item description:

V200 Fine Sand Overlay Embossing Keys 0.5 mm Pitch Double Side FPC Membrane Switch

Overlay: Autoype V200 PC

Circuit type: Double Side Flex FPC

Button type: embossing metal dome keys

Tactile: perfect tactile feeling

Touch force: 100g -350g or as per request

Waterproof: IP67 IP54, IP65 Standard

Backadhesive: 3M Series.

Gold Finger Connector or ZIF Connector

Defect rate: less than 0.3%

Guarantee: 1 year quality Guarantee for all customers or 1 million opeation life time

Product Characters

  1. Custom made OEM/ODM
  2. Various Membrane Switch Design availalbe
  3. Thickness 0.30mm
  4. color keys screen print are available
  5. Withstand millions of cycles
  6. Perfect exterior

Our Advantage:

  1. Strong R&D capability
  2. Low cost and competitive price
  3. Quick delivery
  4. 100% computer test and inspection before shipment
  5. One stop purchase available for customer
  6. Whole solution design available
  7. Roll to Roll print for mass production
  8. Stable SMT for LED welding
  9. Over 13 years in the industry.

Application

  1. *Medical Equipment
  2. * Telecommunications apparatus
  3. * Smart phone systems
  4. * Household appliances
  5. * 3C products and Medical items.

Technical Specification:

Electronical charateristic:
⒈ Voltage: 　　≤50VDC
2.Currency 　　≤100mA
⒊contact Resistance: 　　0.5~10Ω
⒋Insulution resistance: 　　≥100MΩ(100VDC)
⒌ Base Material withstand Voltage : 　　2kDVC
⒍ Snap back time: 　　≤6ms
⒏Insulate Ink withstand Voltage : 　Bigger than 100VDC
Mechnical Data:
⒈ Reliable Life Span: 　　>1 million operation times
⒉ Closed displacement: 　0.1~0.4mm(Notactile type)
　　0.4~1.0mm ( tactile type)
⒊ Touch Force: 　　50~350g
⒋ Silver Paste Resistance Change Rate: 　　 at 55℃,Humidity 90%,56 hours later,resistance between two wire loops :10MΩ/50VDC
6.Circuit width and Technical request 　　Circuit width ≥0.3mm,Distance between two wires 0.3mm,blur of wire <1/3,Line Gap <1/4 circuit width.
⒈Working Temperature: 　　－20℃～+70℃
　　⒉Stock Temperature:－40℃～+85℃ , Humidity within: 95%±5%
　　⒊Large air pressure:86～106KPa

0.5 Mm Pitch Embossing Membrane Switch , Double Side Membrane Switch Keypad
