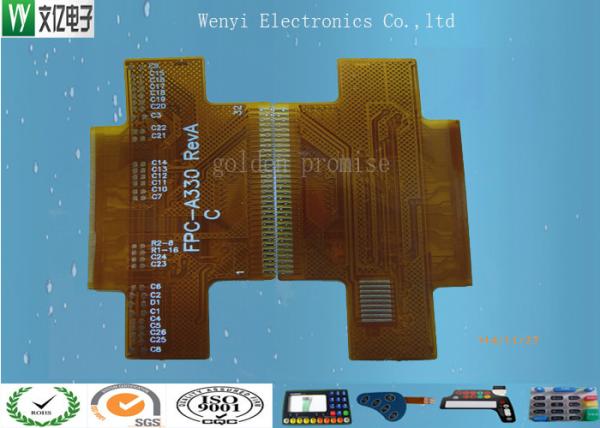

High Precision Gold finger 1 OZ Copper 0.3mm thickness 2 layer Flexible Printed Circuit
High Precision Gold finger 1 OZ Copper 0.3mm thickness 2 layer Flexible Printed Circuit
High Precision Gold finger 1 OZ Copper 0.3mm thickness 2 layer Flexible Printed Circuit
High Precision Gold finger 1 OZ Copper 0.3mm thickness 2 layer Flexible Printed Circuit
Specifications
Brand Name :
Wenyi Electronics
Model Number :
GPI-Flex-C-001
Certification :
RoHs,SGS，ISO9001:2008
Place of Origin :
Made In China
MOQ :
500 pcs/ lot
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
20000 square meters/ month
Delivery Time :
12-15 working days afer sample approval
Packaging Details :
each in ploybag, then in carton box, or as per request.
Material :
1OZ copper
layer :
1-8 layers
Print :
silkscreen
sink :
sink gold or tin plated
Description

High Precision Gold finger 1 OZ Copper 0.3mm thickness 2 layer Flexible Printed Circuit

Item decription: High Precision Gold finger 1 OZ Copper 0.3 mm thickness 2 layer Flexible Printed Circuit

Material: Polymide, Polyster, PET,PT,Rolling,Electrolysis

Thickness:0.27mm -0.36mm.

Application: Mobile phone , 3C electronics , communication device, various industry use.

Business Terms:

MOQ : 500 pcs/ lot

Sample lead time: 8-12 working days

Mass production lead time: 10-14 working days , as per order Qty.

Product Characters

  1. Custom made OEM/ODM
  2. Rasing, and sanding treatment available
  3. Epoxy keys available
  4. color keys screen print are available
  5. Withstand millions of cycles
  6. Perfect exterior

Our Advantage:

  1. Only focus in membrane switch and related items.
  2. Strong R&D capability
  3. Low cost and competitive price
  4. Quick delivery
  5. 100% computer test and inspection before shipment
  6. One stop purchase available for customer
  7. Whole solution design available
  8. All Products provide one year quality warranty

Application

  1. * Medical Equipment
  2. * Telecommunications apparatus
  3. * Smart phone systems
  4. * Household appliances
  5. * Security systems
  6. * Various industry control keypad panel
  7. * consumer electronics and 3C items.

Technical specification:

Product category Flexible or combined with Rigid PCB board
Monthly output 5000 square meters.
Material Polymide, Polyster, PET,PT,Rolling,Electrolysis
File format CAD file(POWERPCB,PROTEL,PADS2000,AUTOCAD,ORCAD, Gerber file
Solder resist (solder mask) Laminated cover film,Liquid photosensitive prevent weld ink,PI oil film
Surface treatment Hot Air Solder Leveling,Tinning ,Sink tin ,gold-plating ,Chemistry sink gold ,Anti-oxidation ,Sink copper ,Tin copper
Finished Thickness 0.068-0.6mm
Circuit Layers Single-sided/multi-layer(4-2 Layer)
Max thin wire/spacing 2-3mil
Min Hole Diameter 0.2mm
Maximum thickness/aperture ratio ≤5Max Outline
Max Outline 500×350mm
Profiling Process 0.1mm CNC punching accuracy 0.1 mm edge
Acceptance Standard Guest standard ,IPC, GB standard (China)
Sample Leadtime 8 to 10 Working Days
